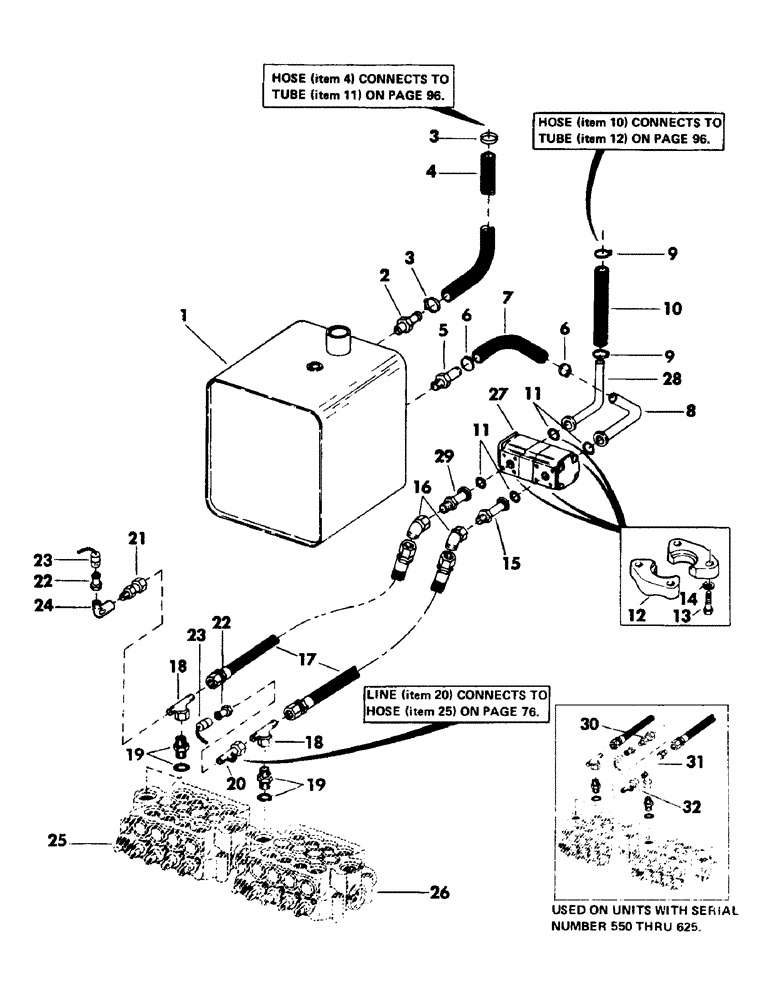

Запчасти Case 50 (094) - RESERVOIR TO PUMP TO MAIN VALVE HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

RESERVOIR, hydraulic oil - (For breakdown, see Figure 119)

1шт.

2

S72895

LINE

INSERT, hose

1шт.

3

S88486

CLAMP

hose

2шт.

4

S202582

LINE

HOSE, low pressure - (Bulk) - 1-1/4" ID x 38" long - (Used on units with Detroit diesel engine)

1шт.

S202582

LINE

HOSE, low pressure - (Bulk) - 1-1/4" x 32" long - (Used on units with Case engine)

1шт.

5

S72306

ADAPTER

INSERT, hose

1шт.

6

S85430

CLAMP

hose

2шт.

7

S71931

HOSE, low pressure - (Bulk) - 2" ID x 16" long - (Used on units with Detroit diesel engine)

1шт.

S71931

HOSE, low pressure - (Bulk) - 2" ID x 21" long - (Used on units with Case engine)

1шт.

8

S227911

LINE

hydraulic - (Supersedes S220953) - (Used on units with Detroit diesel engine)

1шт.

S227910

TUBE ASSY.,1.5" OD

LINE, hydraulic - (Supersedes S220967) - (Used on units with Case engine)

1шт.

9

S87852

CLAMP

hose

2шт.

10

S28123

HOSE

low pressure - (Bulk) - 1-1/2" ID x 25" long - (Used on units with Detroit diesel engine)

1шт.

11

S5815

O-RING,1.49" ID x 1.75" OD x 0.143"

"O" RING - 1.484" ID x 1.750" OD

4шт.

12

S10864

CLAMP

FLANGE, split

8шт.

13

S2431

BOLT

CPSW - 7/16" NC x 1-1/4" gr 5

16шт.

14

S4398

WASHER, LOCK

- 7/16"

16шт.

15

S220517

TUBE ASSY.,1.25" OD x 2" L

LINE, hydraulic - (Used on units with Detroit diesel engine)

1шт.

S220517

TUBE ASSY.,1.25" OD x 2" L

LINE, hydraulic - (Used on units with Case engine and serial no. 550 thru 625)

1шт.

S222459

LINE, hydraulic - (Used on units with Case engine and serial no. 626 and after) 1.25" OD x 8.75" L

1шт.

16

S9494

ELBOW

45 degrees swivel - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degrees flared - (Quantity of one used on units with Detroit diesel engine and quantity of two used on units with Case engine)

1шт.

17

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

2шт.

18

S63599

FITTING

TEE - (1" tube) - 1-5/16" - 12 female x 1-5/16" - 12 male x 1-5/16" - 12 male - 37 degrees flared - (Used on units with serial no. 626 and after)

2шт.

19

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male 37 degrees flared - (Includes "o" ring)

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

2шт.

20

S220106

LINE, hydraulic - (Used on units with serial no. 626 and after)

1шт.

21

S220520

TUBE,1" OD x 4.5" L

LINE, hydraulic

1шт.

22

S206607

DISC

ONNECT, quick

2шт.

23

S206608

CAP

dust

2шт.

24

S17524

ELBOW

90 degrees - 1/4" NPT male x 1/4" NPT female

1шт.

25

VALVE, 4-spool main control - (For breakdown, see Figure 125)

1шт.

26

VALVE, 4-spool main control - (For breakdown, see Figure 127)

1шт.

27

PUMP, main hydraulic - (For breakdown, see Figure 113)

1шт.

28

S506271

LINE, hydraulic 1.5" OD x 4.75, 7.88" L

1шт.

29

S220517

TUBE ASSY.,1.25" OD x 2" L

LINE, hydraulic - (Used on units with serial no. 550 thru 625)

1шт.

S222459

LINE, hydraulic - (Used on units with serial no. 626 and after) 1.25" OD x 8.75" L

1шт.

30

S39867

LINE, hydraulic

1шт.

31

S60465

TEE

- (3/8" tube) - 9/16" - 18 female x 9/16" - 18 male x 9/16" - 18 male - 37 degrees flared

1шт.

32

S220519

LINE, hydraulic 0.375" OD x 1.75" L

1шт.
