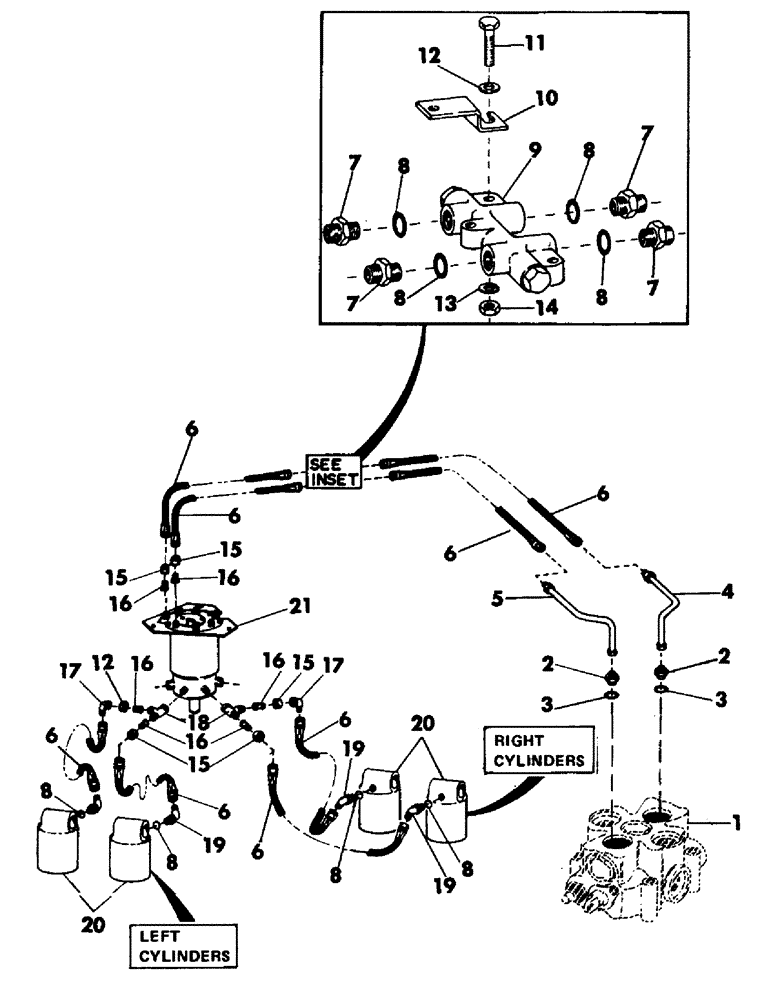

Запчасти Case 50 (086) - LEVELER HYDRAULICS, (USED ON UNITS WITH SERIAL NUMBER 550 THRU 836) (35) - HYDRAULIC SYSTEMS

1

VALVE, 1-spool main control - (For breakdown, see Figure 123)

1шт.

2

S7985

CONNECTOR, ELEC

CONNECTOR, flared - (5/8" tube) - 1-5/16" - 12 male x 7/8" - 14 male - 37 degrees flared - (Includes item 3)

2шт.

3

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

2шт.

4

S506097

LINE, hydraulic 0.625" OD x 11, 3.25" L

1шт.

5

S506096

LINE, hydraulic 0.625" OD x 7, 3.25" L

1шт.

6

S11230

HOSE

high pressure - 3/8" ID x 28" long - (With 3/4" - 16 female pressed on couplings)

8шт.

7

S7963

FITTING

CONNECTOR - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male - 37 degrees flared - (Includes item 8)

4шт.

8

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

8шт.

9

VALVE, check - (For breakdown, see Figure 121)

1шт.

10

S69624

BRACKET, valve mounting

2шт.

11

S2381

BOLT

CPSW - 5/16" NC x 2-1/4" gr 5

2шт.

12

S7393

WASHER

flat - 5/16"

2шт.

13

S4396

WASHER, LOCK

- 5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

- 5/16" NC

2шт.

15

S6277

NUT

- (3/4" tube) - 1-1/16" - 12 thread

6шт.

16

S101833

ADAPTER

reducing - (3/4" x 1/2" tube) - 3/4" - 16 male - 37 degrees flared

6шт.

17

S10357

ELBOW

90 degrees swivel - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female - 37 degrees flared

2шт.

18

S60461

TEE

- (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female x 3/4" 16 male - 37 degrees flared

2шт.

19

S7939

ELBOW

90 degrees adjustable - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male - 37 degrees falred - (Includes item 8)

4шт.

20

CYLINDER, leveler - (For breakdown, see Figure 111)

4шт.

21

SWIVEL, hydraulic - (For breakdown, see Figure 112)

1шт.
