Запчасти Case 50 (066) - SWING REDUCER AND BRAKE HOUSING, (USED ON UNITS WITH SERIAL NUMBER 950 AND AFTER) (35) - HYDRAULIC SYSTEMS

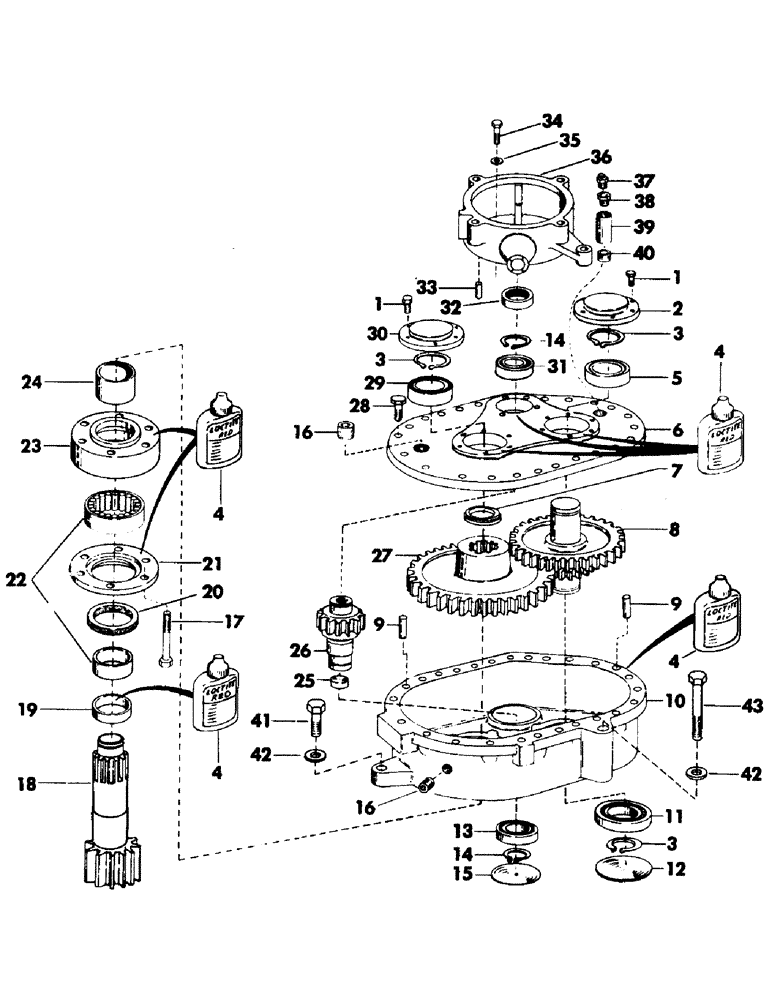

Схема запчастей Case 50 - (066) - SWING REDUCER AND BRAKE HOUSING, (USED ON UNITS WITH SERIAL NUMBER 950 AND AFTER) (35) - HYDRAULIC SYSTEMS

Артикул

Название

Примечание

Количество

S606781

REDUCER

SWING REDUCER AND BRAKE HOUSING - complete - (Consists of items 1 thru 40) - (Includes one S953948 swing reducer and one S603824 brake housing)

1шт.

1

S16475

CAPSCREW

CPSW, self locking - 5/16" NC x 1" gr 8

12шт.

2

S402194M1

CAP

bearing

1шт.

3

S62721

RING, SNAP

RING, retaining

3шт.

4

S96077

SEAL

- 10 CC bottle (Red) - (Replaces gaskets - substitutes must not be used)

1шт.

5

S64314

BALL BEARING,40 mm ID x 80 mm OD x 18 mm

BEARING, ball

1шт.

6

S603758

COVER

gear case

1шт.

7

S214014

SPACER

, Serial Range: bearing-gear

1шт.

8

S603733

GEAR

cluster

1шт.

9

S64319

CALIPER

DOWEL

2шт.

10

S606331

CASE

gear

1шт.

11

S64316

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

1шт.

12

S64317

PLUG

expansion

1шт.

13

S64313

BALL BEARING,35 mm ID x 72 mm OD x 17 mm

BEARING, ball

1шт.

14

S62725

RING

retaining

2шт.

15

S64328

PLUG

expansion

1шт.

16

S7873

PLUG

pipe - 3/8" NPT - (Socket head)

3шт.

17

S15714

BOLT

CPSW - 5/8" NC x 3-1/4" gr 8

6шт.

18

S606286

SHAFT

AND GEAR, output

1шт.

19

S225232

OIL SEAL

RING

1шт.

20

S98415

OIL SEAL

oil

1шт.

21

S508460

RETAINER

oil seal

1шт.

22

S98416

ROLLER BEARING,5.12" OD x 1.63"

BEARING AND RACE ASSEMBLY

1шт.

23

S508461

RETAINER

roller bearing

1шт.

24

S225231

SPACER

1шт.

25

S81286

PLUG

expansion

1шт.

26

S506736

PINION

AND SHAFT, input

1шт.

27

S603736

GEAR

drive

1шт.

28

S73499

BOLT

CPSW - 3/8" NC x 1-1/4" gr 8

23шт.

29

S98375

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, ball

1шт.

30

S214012M1

X

CAP, bearing

1шт.

31

S94598

BALL BEARING,35 mm ID x 72 mm OD x 17 mm

BEARING, ball

1шт.

32

S64311

OIL SEAL

oil

1шт.

33

S64915

DOWEL

1шт.

34

S87563

CAPSCREW

CPSW - 3/8" NC x 1-1/4" - (Socket head nylok)

3шт.

35

S103264

WASHER

3шт.

36

S603824

HOUSING

swing brake

1шт.

37

S17478

VENT

breather

1шт.

38

S7780

BUSHING

REDUCER - 3/8" NPT male x 1/8" NPT female

1шт.

39

S216625

TUBE,60" L

oil breather

1шт.

40

S7840

NIPPLE - 3/8" NPT x 1" long

1шт.

41

S93532

BOLT

CPSW - 7/8" NC x 2" gr 8

1шт.

42

S92341

WASHER

flat - 7/8" - (Hardened steel)

3шт.

43

S99165

CAPSCREW

CPSW - 7/8" NC x 5-3/4" gr 8

2шт.

Выбрано товаров: 44
