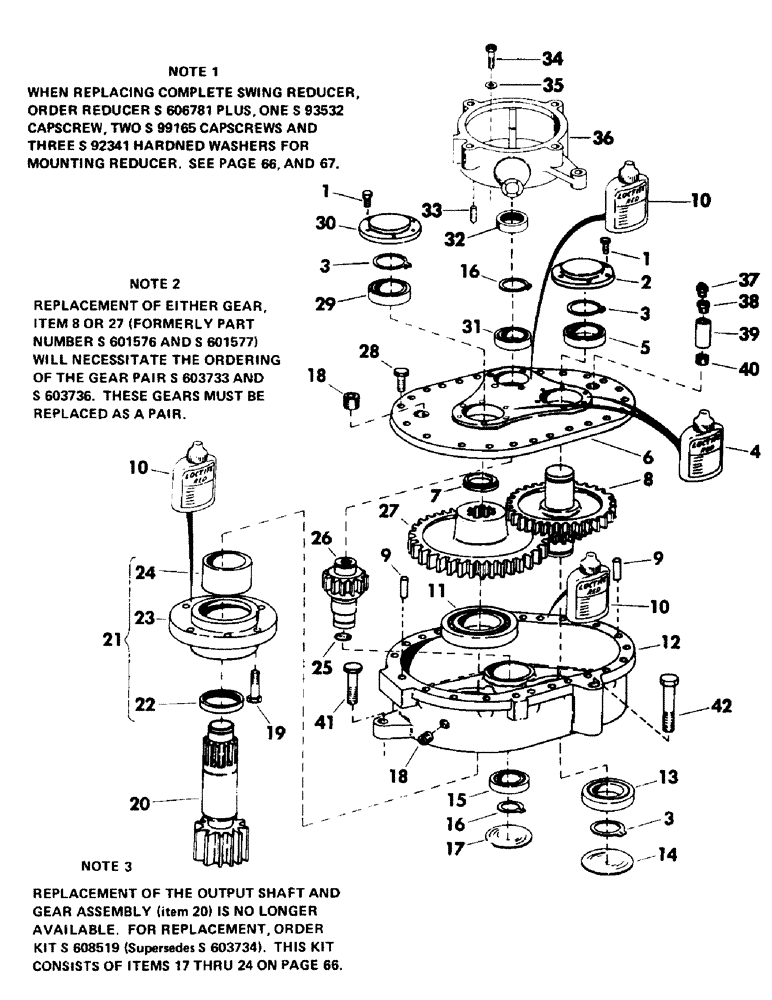

Запчасти Case 50 (064) - SWING REDUCER AND BRAKE HOUSING, (USED ON UNITS WITH SERIAL NUMBER 646 THRU 949) (35) - HYDRAULIC SYSTEMS

REDUCER, brake housing and swing - complete - (See note 1) (See page 61A)

1шт.

1

S16475

CAPSCREW

CPSW - 5/16" NC x 1" gr 8

12шт.

2

S402194M1

CAP

bearing

1шт.

3

S62721

RING, SNAP

RING, retaining

3шт.

4

S96077

SEAL

- 10 CC bottle (Red) - (Substitutes must not be used) (Replaces bearing cap gasket)

2шт.

5

S64314

BALL BEARING,40 mm ID x 80 mm OD x 18 mm

BEARING, ball

1шт.

6

S603758

COVER

gear case

1шт.

7

S214014

SPACER

, Serial Range: bearing-gear

1шт.

8

S603733

GEAR

cluster - (See note 2)

1шт.

9

S64319

CALIPER

DOWEL - 3/8" diameter

2шт.

10

S96077

SEAL

- 10 CC bottle (Red) - (Substitutes must not be used) (Replaces cover, reducer support, and swing brake housing gaskets)

3шт.

11

S64321

BALL BEARING,70mm ID x 110mm OD x 20mm W

BEARING, ball

1шт.

12

S55373M4

CASE, gear

1шт.

13

S64316

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

1шт.

14

S64317

PLUG

expansion

1шт.

15

S64313

BALL BEARING,35 mm ID x 72 mm OD x 17 mm

BEARING, ball

1шт.

16

S62725

RING

retainer

2шт.

17

S64328

PLUG

expansion

1шт.

18

S7873

PLUG

pipe - 3/8" NPT - (Socket head)

4шт.

19

S16906

BOLT

CPSW - 1/2" NC x 1-3/4" gr 8 - (Nylok) - (Special DMC)

6шт.

20

SHAFT AND GEAR, output - (See note 3)

1шт.

21

S603774

HOUSING

- (Includes items 22 thru 24)

1шт.

22

S221773

OIL SEAL

oil

1шт.

23

NSS

NOT SOLD SEPARAT

SUPPORT, reducer

1шт.

24

S94604

BUSHING

1шт.

25

S81286

PLUG

expansion

1шт.

26

S506736

PINION

AND SHAFT, input

1шт.

27

S603736

GEAR

drive - (See note 2)

1шт.

28

S73499

BOLT

CPSW - 3/8" NC x 1-1/4" gr 8

23шт.

29

S98375

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, ball

1шт.

30

S214012M1

X

CAP, bearing

1шт.

31

S94598

BALL BEARING,35 mm ID x 72 mm OD x 17 mm

BEARING, ball

1шт.

32

S64311

OIL SEAL

oil

1шт.

33

S64915

DOWEL

1шт.

34

S87563

CAPSCREW

CPSW - 3/8" NC x 1-1/4" - (Socket head nylok)

3шт.

35

S103264

WASHER

3шт.

36

S603825

HOUSING, brake

1шт.

37

S17478

VENT

breather

1шт.

38

S7780

BUSHING

REDUCER - 3/8" NPT male x 1/8" NPT female

1шт.

39

S216625

TUBE,60" L

oil breather

1шт.

40

S7840

NIPPLE - 3/8" NPT x 1" long

1шт.

41

S2581

SCREW

CPSW - 7/8" NC x 1-3/4" gr 8 - (Reducer mounting)

1шт.

42

S2596

BOLT

CPSW - 7/8" NC x 5-1/2" gr 8 - (Reducer mounting)

2шт.

S608519

KIT

output shaft and roller bearing improvement - (Consists of items 17 thru 24 on Figure 66) - (Supersedes S603734)

1шт.
