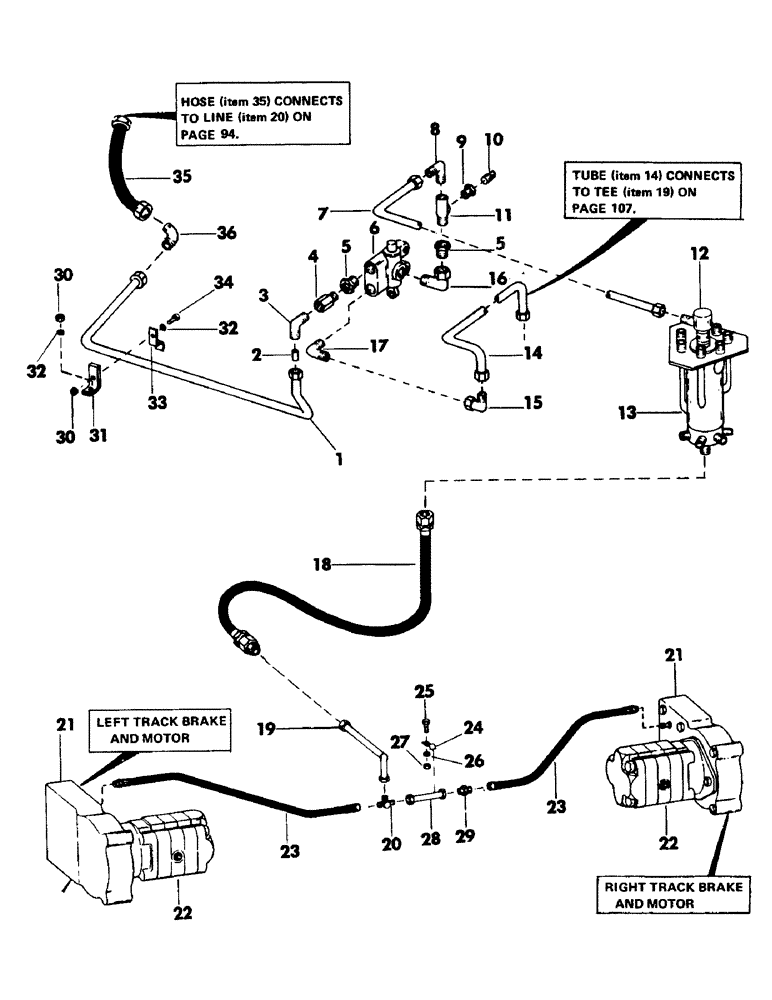

Запчасти Case 50 (076) - TRACK BRAKE HYDRAULICS (33) - BRAKES & CONTROLS

1

S220518

LINE, hydraulic 0.375" OD

1шт.

2

S89669

VALVE

REGULATOR, flow

1шт.

3

S7734

ELBOW

90 degrees flared - (3/8" tube) - 1/4" NPT male x 9/16" 18 male - 37 degrees flared

1шт.

4

S78869

VALVE

check

1шт.

5

S7772

BUSHING

reducing - 1/2" NPT male x 3/4" NPT female

2шт.

6

VALVE, track brake - (For breakdown, see Figure 81)

1шт.

7

S220385

LINE, hydraulic 0.375" OD x 7.25, 14.25" L

1шт.

8

S63426

ELBOW

90 degrees flared - (5/16" tube) - 9/16" male x 3/8" NPT male

1шт.

9

S7780

BUSHING

reducing - 3/8" NPT male x 1/4" NPT female

1шт.

10

S15161

PLUG, pipe - 1/8" NPT

1шт.

11

S17935

TEE

- 3/8" NPT female x 3/8" NPT male x 3/8" NPT female

1шт.

12

SWIVEL, inner - (For breakdown, see Figure 78)

1шт.

13

SWIVEL, 7-port hydraulic - (For breakdown, see Figure 112)

1шт.

14

S220386

TUBE,0.375" OD

LINE, hydraulic

1шт.

15

S10356

ELBOW

90 degrees - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male x 9/16" - 18 female - 37 degrees flared

1шт.

16

S17526

ELBOW

90 degrees street - 1/2" NPT male x 1/2" NPT female

1шт.

17

S63427

ELBOW

90 degrees - (3/8" tube) - 9/16" male x 1/2" female 37 degrees flared

1шт.

18

S401727

HOSE ASSY.

HOSE, high pressure - 1/4" ID x 30" long - (With 7/16" - 20 female and male pressed on couplings)

1шт.

19

S211641

LINE, hydraulic 0.25" OD x 15.5, 2" L

1шт.

20

S60496

TEE

- 7/16" male x 7/16" male x 7/16" male

1шт.

21

BRAKE, track drive - (For breakdown, see Figure 82)

2шт.

22

MOTOR, track drive - (For breakdown, see Figure 115)

2шт.

23

S401729

HOSE

high pressure - 1/4" ID x 38" long - (With 7/16" - 20 male and female pressed on couplings)

2шт.

24

S75868

CLAMP

tube

1шт.

25

S2350

MUFFLER

CPSW - 1/4" NC x 3/4" gr 5

1шт.

26

S4395

WASHER, LOCK

- 1/4"

1шт.

27

7770

NUT,Hex, 1/4 - 20, Cl 5

- 1/4" NC

1шт.

28

S211642

LINE, hydraulic 0.25" OD x 6" L

1шт.

29

S101331

UNION

CONNECTOR, flared - (1/4" tube) - 7/16" - 20 male x 7/16" - 20 male - 37 degrees flared

1шт.

30

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

2шт.

31

S93424

ANGLE

1шт.

32

S7385

INSTRUCTION

WASHER, flat - 3/8"

2шт.

33

S64985

CLAMP

1шт.

34

S2401

BOLT

CPSW - 3/8" NC x 1" gr 5

1шт.

35

S77121

HOSE

high pressure - 1/4" ID x 20" long - (With 9/16" - 18 female pressed on couplings)

1шт.

36

S101875

ELBOW

90 degrees - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 male - 37 degrees flared

1шт.
