Запчасти Case 50 (074) - CRAWLER DETENT CONTROL AND LINKAGE (33) - BRAKES & CONTROLS

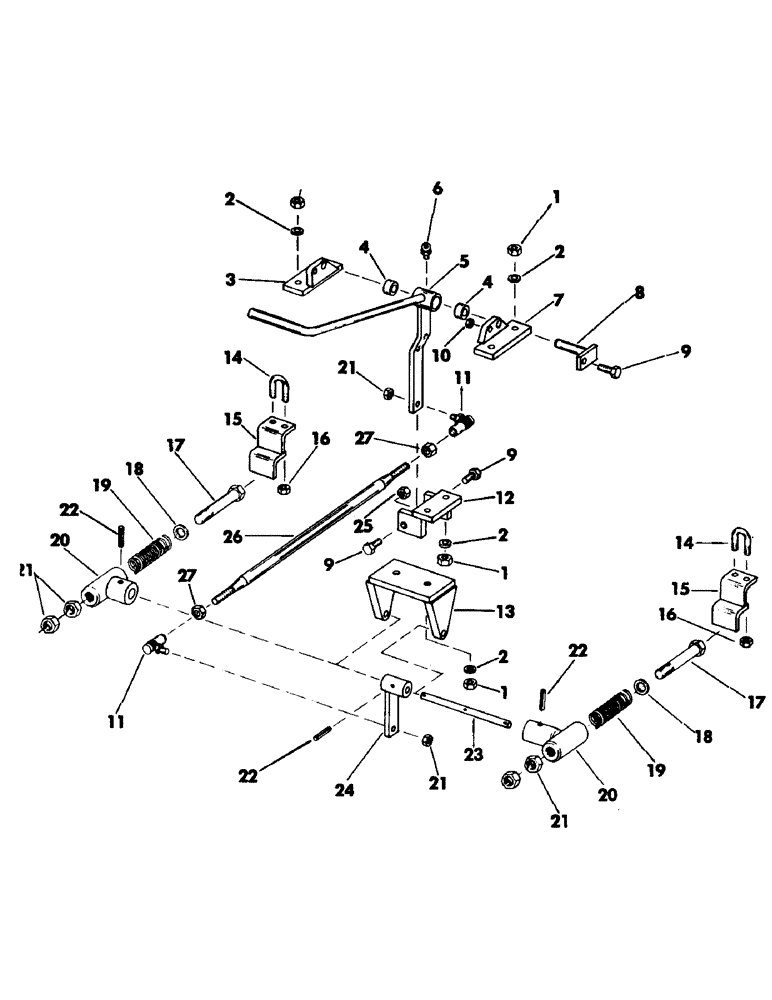

Схема запчастей Case 50 - (074) - CRAWLER DETENT CONTROL AND LINKAGE (33) - BRAKES & CONTROLS

Артикул

Название

Примечание

Количество

1

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

8шт.

2

S7397

WASHER

flat - 1/2"

8шт.

3

S218944

BRACKET

1шт.

4

S63168

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.5"

BEARING, needle

2шт.

5

S220559

HANDLE - (Includes grease fitting)

1шт.

6

S49793

FITTING

grease - 1/4" NPT x 65 degrees

1шт.

7

S218943

BRACKET

1шт.

8

S218962

SHAFT ASSY.

SHAFT

1шт.

9

S2352

BOLT

CPSW - 1/4" NC x 1-1/4" gr 5

3шт.

10

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

11

S215594

BALL

JOINT

2шт.

12

S219342

BRACKET

1шт.

13

S218945

BRACKET

1шт.

14

S63280

BOLT, "U" - 3/8" NC

2шт.

15

S219355

STOP

2шт.

16

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

4шт.

17

S2051

BOLT

CPSW - 3/8" NC x 3-1/2" gr 5

2шт.

18

S7385

INSTRUCTION

WASHER, flat - 3/8"

2шт.

19

S13700

SPRING

2шт.

20

S206012

HOUSING

2шт.

21

231-2446

NUT,3/8"-24, GB

NUT, self locking - 3/8" NF

4шт.

22

S5388

PIN, ROLL

- 15/64" x 1-1/4" long

3шт.

23

S91729

SHAFT

1шт.

24

S218960

BELLCRANK

1шт.

25

129-141

JAM NUT,Jam, 1/4"-20, G5

jam - 1/4" NC

2шт.

26

S220463

PITMAN ASSY.

ROD, connecting

1шт.

27

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

4шт.

Выбрано товаров: 27
