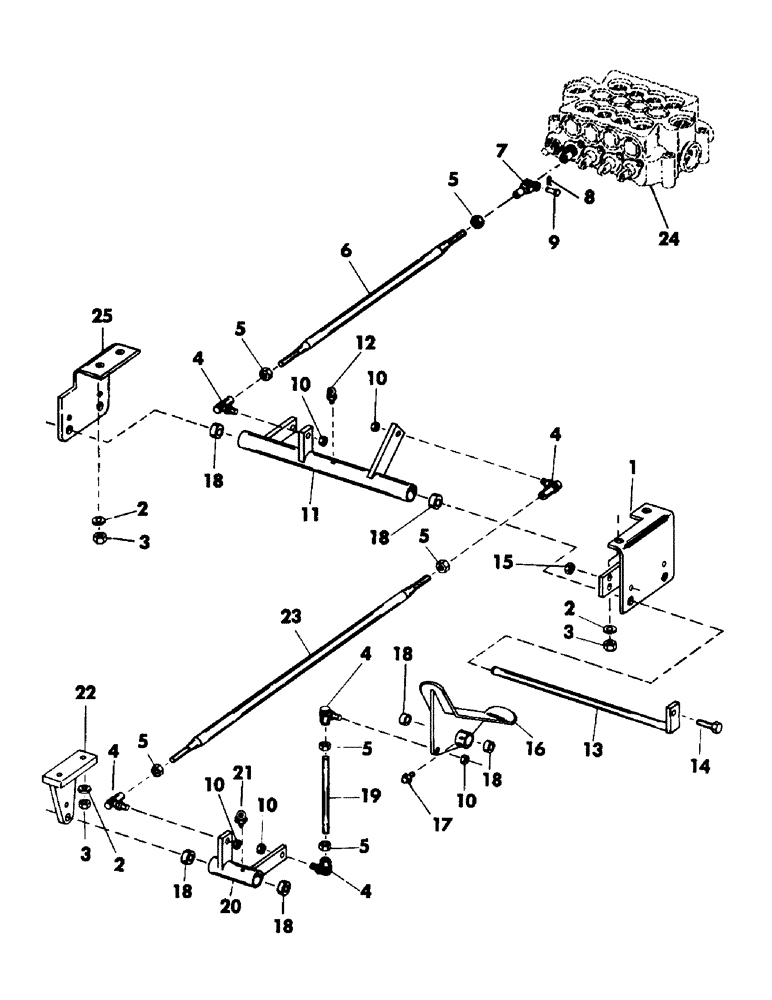

Запчасти Case 50 (050) - SWING PEDAL CONTROL AND LINKAGE (33) - BRAKES & CONTROLS

1

S221103

BRACKET

1шт.

2

S7397

WASHER

flat - 1/2"

6шт.

3

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

6шт.

4

S215594

BALL

JOINT, ball

5шт.

5

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

6шт.

6

S218942

ROD

connecting

1шт.

7

S12514

YOKE

1шт.

8

S4640

PIN, cotter - 5/32" x 3/4" long

1шт.

9

S10768

PIN

clevis - 3/8" x 1.016" grip length

1шт.

10

231-2446

NUT,3/8"-24, GB

NUT, self locking - 3/8" NF

5шт.

11

S220213

BELLCRANK - (Includes grease fitting)

1шт.

12

S46960

FITTING

grease - 1/4" NPT - (Straight)

1шт.

13

S218961

SHAFT ASSY.

SHAFT

1шт.

14

S2352

BOLT

CPSW - 1/4" NC x 1-1/4" gr 5

1шт.

15

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

16

S504577

PEDAL, swing control - (Includes grease fitting)

1шт.

17

S46960

FITTING

grease - 1/4" NPT - (Straight)

1шт.

18

S63168

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.5"

BEARING, needle

6шт.

19

S91681

ROD

connecting

1шт.

20

S220215

BELLCRANK - (Includes grease fitting)

1шт.

21

S46960

FITTING

grease - 1/4" NPT - (Straight)

1шт.

22

S218939

BRACKET

1шт.

23

S220465

ROD

connecting

1шт.

24

VALVE, 4-spool main control - (For breakdown, see page 125)

1шт.

25

S218940

BRACKET

1шт.
