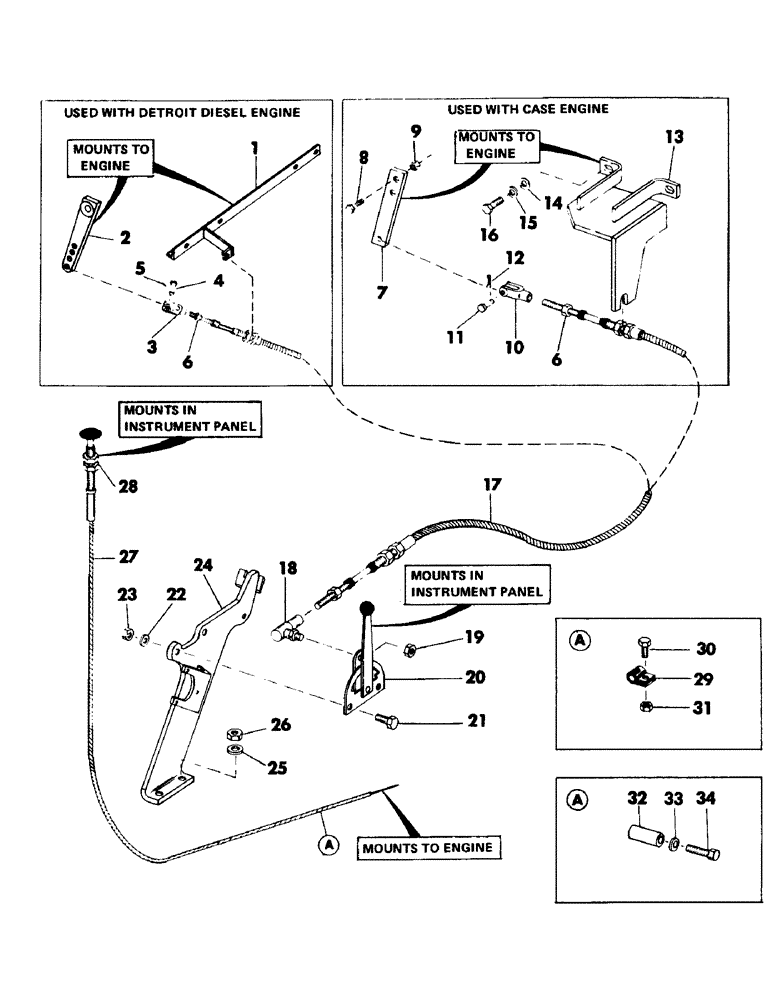

Запчасти Case 50 (033) - THROTTLE AND SHUT-OFF CONTROL CABLES (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
S211666
BRACKET, cable support -, Serial Range: (Mounts-engine)
1шт.
2
S211671
LEVER
throttle control
1шт.
3
S82381
YOKE
1шт.
4
S10736
PIN
clevis - 5/16" x .734" grip length
1шт.
5
S4626
PIN, cotter - 1/8" x 3/4" long
1шт.
6
425-154
JAM NUT,Jam, 1/4"-28, G5
jam - 1/4" NF
1шт.
7
S92444
BAR
LEVER, throttle control
1шт.
8
S2360
SCREW
CPSW - 1/4" NC x 7/8" gr 5
2шт.
9
231-1444
NUT,1/4"-20, GB
NUT, LOCK, 1/4"-20, GB
2шт.
10
S12568
YOKE
1шт.
11
S10714
CLEVIS PIN
PIN, clevis - 1/4" x .648" grip length
1шт.
12
S4620
PIN, SPLIT (COTTER)
PIN, cotter - 7/64" x 3/4" long
1шт.
13
S505829
BRACKET
cable support
1шт.
14
S7385
INSTRUCTION
WASHER, flat - 3/8"
2шт.
15
S4397
WASHER
lock - 3/8"
2шт.
16
S2401
BOLT
CPSW - 3/8" NC x 1" gr 5
2шт.
17
S219334
CABLE
throttle
1шт.
18
S76046
GASKET
JOINT, ball
1шт.
19
S17151
NUT
self locking - 1/4" NF
1шт.
20
S91894
CONTROL LEVER
LEVER, throttle
1шт.
21
S2351
BOLT
CPSW - 1/4" NC x 1" gr 5
2шт.
22
S7380
WASHER
flat - 1/4"
2шт.
23
231-1444
NUT,1/4"-20, GB
NUT, LOCK, 1/4"-20, GB
2шт.
24
S506156
BRACKET, throttle lever mounting
1шт.
25
S7387
WASHER
flat - 3/8"
2шт.
26
S17167
INSTRUCTION
NUT, self locking - 3/8" NC
2шт.
27
S201620M1
CABLE, control - (Quantity of 1 cable used with Case engine for shut-off control and quantity of 2 used with GMC engine for shut-off and emergency control)
1шт.
28
S7381
WASHER
flat - 5/16" - (Quantity of 1 used with Case engine and quantity of 2 used with Detroit diesel engine)
1шт.
29
S75863
CLAMP
- (Used with Case engine)
1шт.
30
S2351
BOLT
CPSW - 1/4" NC x 1" gr 5 - (Used with Case engine)
1шт.
31
231-1444
NUT,1/4"-20, GB
NUT, LOCK, (Used with Case engine) 1/4"-20, GB
1шт.
32
S48851
SPACER
- (Used with Detroit diesel engine)
1шт.
33
S4397
WASHER
lock - 3/8" - (Used with Detroit diesel engine)
1шт.
34
S2403
BOLT
CPSW - 3/8" NC x 1-1/2" gr 5 - (Used with Detroit diesel engine)
1шт.
Выбрано товаров: 34
