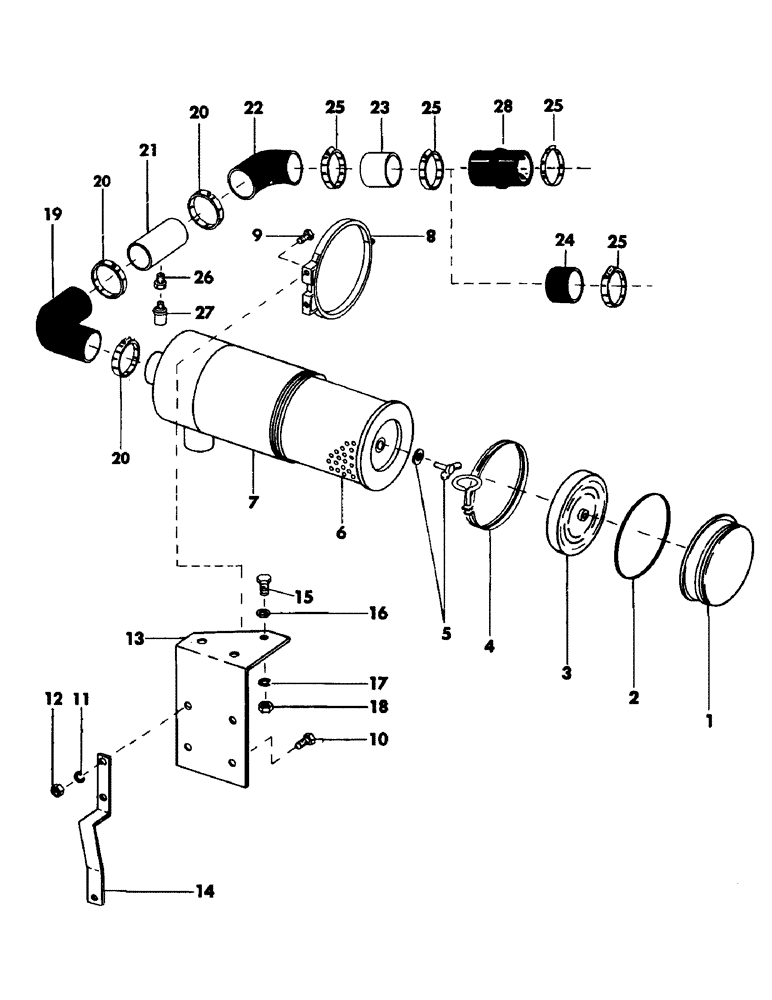

Запчасти Case 50 (027) - AIR CLEANER AND ATTACHING PARTS FOR: DETROIT DIESEL ENGINE (10) - ENGINE

S505887

CLEANER, air complete (Consists of items 1 thru 7)

1шт.

1

S221351

CUP

1шт.

2

S94199

O-RING

"O" RING

1шт.

3

L33187

BAFFLE

1шт.

4

L33136

CLAMP

1шт.

5

S221107

BOLT (MACHINE)

SCREW ASSEMBLY

1шт.

6

S221347

ELEMENT

air cleaner

1шт.

7

NSS

NOT SOLD SEPARAT

BODY, air cleaner

1шт.

8

S219931

CLAMP

BAND, mounting

2шт.

9

S2432

BOLT

CPSW - 7/16" NC x 1-1/2" gr 5

2шт.

10

S2431

BOLT

CPSW - 7/16" NC x 1-1/4" gr 5

2шт.

11

S4398

WASHER, LOCK

- 7/16"

4шт.

12

280717

NUT,7/16"-14, G5

4шт.

13

S219932

BRACKET, air cleaner mounting

1шт.

14

S220765

BRACKET, air cleaner mounting

1шт.

15

S2467

BOLT

CPSW - 1/2" NC x 1-1/4" gr 5 - (Mounts, Serial Range: bracket-shroud)

3шт.

16

S86132

WASHER

hardened - 1/2"

3шт.

17

S4399

WASHER

lock - 1/2"

3шт.

18

280431

NUT,1/2"-13, G5

2шт.

19

S85130

ELBOW

90 degrees rubber

1шт.

20

S83029

CLAMP

4шт.

21

S221274

TUBE 7" L

1шт.

22

S92553

ADAPTER

ELBOW, 45 degrees rubber

1шт.

23

S92554

TUBE 5.5" L

1шт.

24

S82334

HOSE - (Bulk) - 5-1/2" ID x 3" long - (Used on units with serial number 550 thru 908)

3шт.

25

S85678

CLAMP - (Used on units with serial number 550 thru 908)

2шт.

S87805

HOSE

CLAMP - (Used on units with serial number 909 and after)

2шт.

26

D36264

FITTING

CONNECTOR, special filter type

1шт.

27

A59569

INDICATOR

FILTER INDICATOR, air cleaner

1шт.

28

S87805

HOSE

REDUCER, hump - (Used on units with serial no. 909 and after)

1шт.
