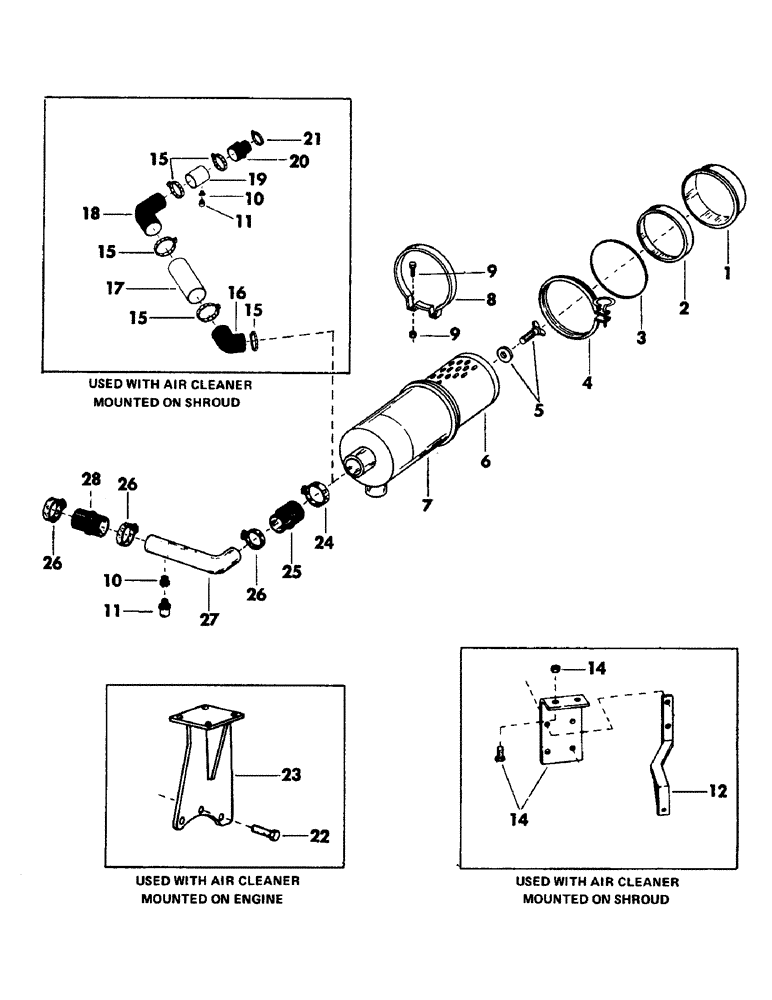

Запчасти Case 50 (025) - AIR CLEANER AND ATTACHING PARTS FOR: CASE 504BDT DIESEL ENGINE. (10) - ENGINE

S505847

CLEANER, air - complete (Consists of items 1 thru 7)

1шт.

1

L33819

CUP

1шт.

2

D50542

BAFFLE

1шт.

3

D50946

GASKET

"O" RING - .187" dia. x 9.12" ID

1шт.

4

D50941

CLAMP

1шт.

5

S221107

BOLT (MACHINE)

SCREW ASSEMBLY

1шт.

6

S221106

ELEMENT

air cleaner

1шт.

7

NSS

NOT SOLD SEPARAT

BODY, air cleaner

1шт.

8

S219850

BAND

air cleaner mounting

2шт.

9

S2401

BOLT

CPSW - 3/8" NC x 1" gr 5

4шт.

S17167

INSTRUCTION

NUT, self-locking - 3/8" NC

4шт.

10

D36264

FITTING

CONNECTOR, special filter

1шт.

11

A59568

INDICATOR

air restrictor

1шт.

12

S220527

BRACKET

1шт.

13

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" Gr 5

2шт.

14

S219849

BRACKET

1шт.

S2466

BOLT

CPSW - 1/2" NC x 1-1/4" Gr 5

2шт.

S17169

INSTRUCTION

NUT, self-locking - 1/2" NC

2шт.

15

S83027

CLAMP

5шт.

16

S92499

ELBOW

rubber - 45 degrees

1шт.

17

S92500

TUBE

1шт.

18

S80631

90 ELBOW,58.0 mm ID mm ID

ELBOW, 4.00" ID x 5.80", 90-Degree, Rubber

1шт.

19

S220445

TUBE

1шт.

20

S92498

REDUCER

hump

1шт.

21

S83025

CLAMP

1шт.

22

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" Gr 5

3шт.

23

S507521

BRACKET, mounting

1шт.

24

S83025

CLAMP

1шт.

25

S92498

REDUCER

hump

1шт.

26

S83027

CLAMP

3шт.

27

S506613

TUBE 2.75" L

1шт.

28

S87799

ROD, CONNECTING

ADAPTER - (Onto engine)

1шт.
