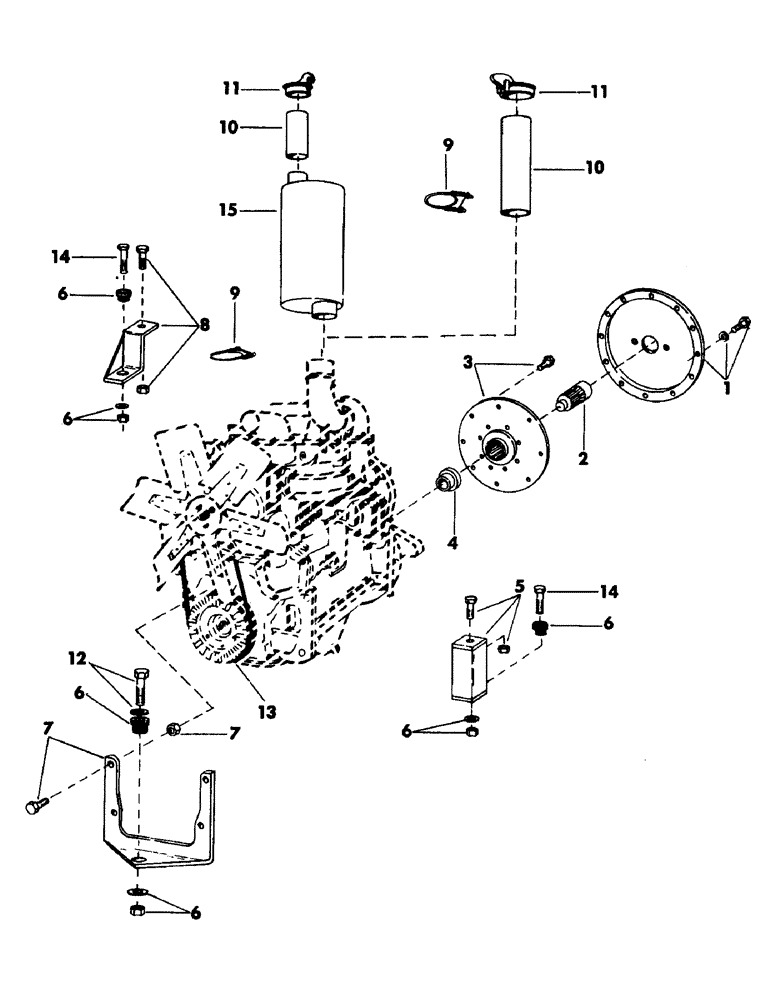

Запчасти Case 50 (021) - CASE 504BDT DIESEL ENGINE (DROTT NO. A64311) AND MOUNTING PARTS. (10) - ENGINE

1

S52615

MOUNTING PARTS

MOUNTING, hydraulic pump

1шт.

S2401

BOLT

CPSW - 3/8" NC x 1" gr 5

9шт.

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" gr 5

3шт.

S4397

WASHER

lock - 3/8"

12шт.

2

S63201

COUPLING

1шт.

3

S33201M2

DAMPER

DAMPNER

1шт.

S63218

BOLT

CPSW - 3/8" NC x 5/8" gr 5

8шт.

4

S87483

ADAPTER

SPACER

1шт.

5

S220171

BRACKET, engine mounting - (Left hand)

1шт.

S2546

BOLT (MACHINE)

CPSW - 3/4" NC x 2-1/4" gr 5

1шт.

S17089

NUT

self-locking - 3/4" NC

1шт.

6

S93392

MOUNTING PARTS

MOUNT, rubber

3шт.

S82255

WASHER

snubbing

3шт.

S17089

NUT

self-locking

3шт.

7

S219772

BRACKET, front engine mounting

1шт.

S2549

BOLT

CPSW - 3/4" NC x 3" gr 5

4шт.

S17089

NUT

WASHER, lock - 3/4"

4шт.

8

S220170M1

BRACKET, engine mounting - (Right hand)

1шт.

S2546

BOLT (MACHINE)

CPSW - 3/4" NC x 2-1/4" gr 5

1шт.

S17089

NUT

self-locking - 3/4"

1шт.

9

S85396

CLAMP

pipe - (Used on units with serial no. 550 thru 908)

1шт.

S68529

CLAMP

pipe - (Used on units with serial no. 909 and after)

2шт.

10

S93395

PIPE

exhaust - (Used on units with serial no. 550 thru 908)

1шт.

S98927

PIPE CLAMP

PIPE, exhaust - (Used on units with serial no. 909 and after)

1шт.

11

A62175

CYLINDER END CAP

CAP, exhaust pipe - (Used on units with serial no. 550 thru 908)

1шт.

A19795

CAP

exhaust pipe - (Used on units with serial no. 909 and after)

1шт.

12

S2554

BOLT (MACHINE)

CPSW - 3/4" NC x 3-1/2" gr 5

1шт.

S7407

WASHER

- 13/16"

1шт.

13

S88836

SET OF BELTS,0.69" W x 60.00" L

V-Belt, Alternator 0.69" W x 60.00" L

1шт.

14

S2557

CPSW - 3/4" NC x 4-1/2" gr 5

2шт.

15

S508420

MUFFLER

- (Used on units with serial no. 909 and after)

1шт.
