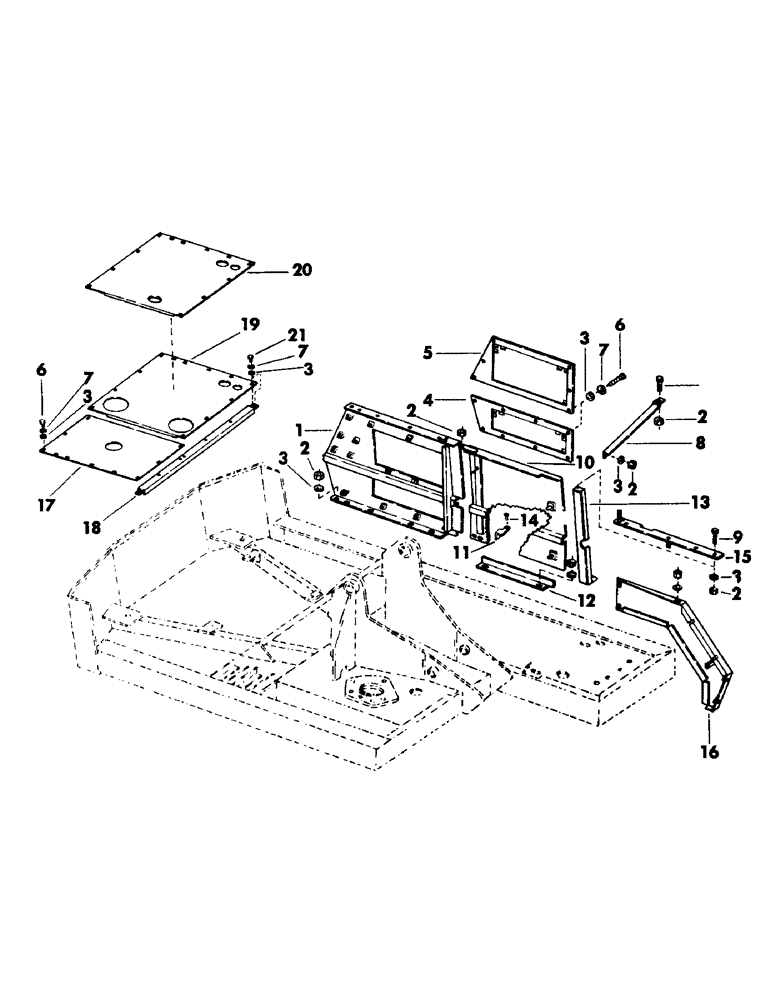

Запчасти Case 50 (056) - SHROUD, GRILLES AND RELATED PARTS, (LEFT SIDE AND TOP) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

S602963

SHROUD, side panel - left side

1шт.

2

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

14шт.

3

S86132

WASHER

flat - 1/2"

62шт.

4

S505911

GRILLE, bottom side - rear shroud - (Right and left)

2шт.

5

505912

PLUG

GRILLE, top side - rear shroud - (Right and left)

2шт.

6

S2465

BOLT (MACHINE)

CPSW - 1/2" NC x 1" gr 5

46шт.

7

S4399

WASHER

lock - 1/2"

48шт.

8

S219988

BRACE

1шт.

9

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" gr 5

2шт.

10

S602962

DOOR, left side

1шт.

11

S507513

BRACKET - (Supersedes S506233)

1шт.

12

S220615

ANGLE

1шт.

13

S220529

BRACE, door stop

1шт.

14

S217887

PIN

retaining

1шт.

15

S220527

BRACE

1шт.

16

S602602

SHROUD

door mounting - (Front)

1шт.

17

S505945

COVER, radiator and cooler

1шт.

18

S505943

CHANNEL

1шт.

19

S505895

COVER, engine shroud - (Used on Detroit diesel 6V-53 engine) (Used on units with serial no. 550 thru 908)

1шт.

S508716

COVER, engine shroud - (Used on Detroit diesel 6V-53 engine) (Used on units with serial number 909 and after)

1шт.

20

S505896

COVER - (Used on Case 504BDT diesel engine)

1шт.

21

S2466

BOLT

CPSW - 1/2" NC x 1-1/4" gr 5

2шт.
