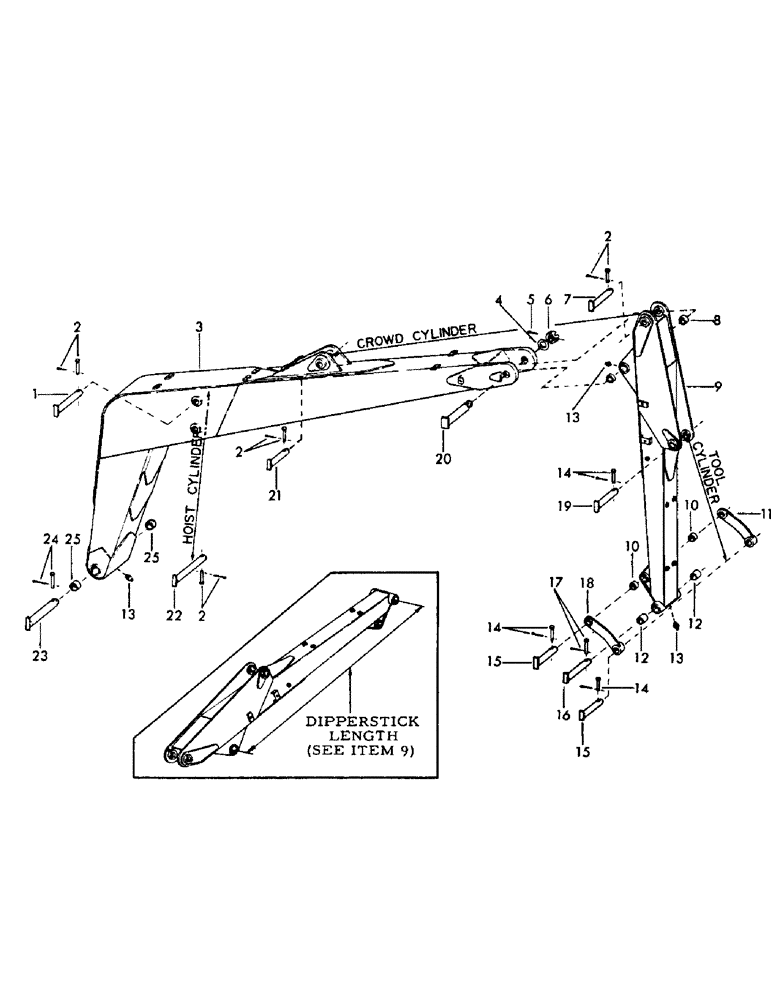

Запчасти Case 50 (D15) - "E" MAIN BOOM AND DIPPERSTICKS (84) - BOOMS, DIPPERS & BUCKETS

1

S212138

PIN ASSY.

PIN - mounts hoist cylinder rod end to main boom

1шт.

2

S61976

CLEVIS PIN

PIN, clevis

3шт.

S4628

SPLIT PIN

PIN, cotter - 1/8" x 1-1/4" long

3шт.

3

S952012M1

BOOM, main - (Includes Refs. 25 and quantity of 1 Ref. 13)

1шт.

Change in listing

1шт.

4

S7436

WASHER

flat - 2"

1шт.

5

S4678

PIN

cotter - 1/4" x 3-1/2" long

1шт.

6

S9396

NUT

slotted - 2" NC

1шт.

7

S212136

PIN

- mounts crowd cylinder rod, Serial Range: end-dipperstick

1шт.

8

S202162

BUSHING

- used with 8'5" dipperstick only

2шт.

S210602

BUSHING,63.42mm ID x 76.31mm OD x 50.8mm L

- used with 10'5" and 12'0" dippersticks only

2шт.

9

S951708M1

DIPPERSTICK - 10'5" dipperstick length (Includes Refs. 8, 10, 12 and quantity of 3 Ref. 13) (Standard)

1шт.

S952053M1

DIPPERSTICK - 12'0" dipperstick length (Includes Refs. 8, 10, 12 and quantity of 3 of Ref. 13) (Optional)

1шт.

10

S202134

BUSHING

2шт.

11

S38355M1

LINK

LINE, guide - left hand

1шт.

Change in listing.

1шт.

12

S202137

BUSHING,50.73mm ID x 63.63mm OD x 63.5mm L

2шт.

13

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT (Straight)

4шт.

14

S61973

AXLE PIN

PIN, clevis - 1/2" x 3.766" grip length

2шт.

S4627

SPLIT PIN

PIN, cotter - 1/8" x 1" long

2шт.

15

S205653M1

PIN - mounts tool cylinder rod to link guide and link, Serial Range: guide-dipperstick

2шт.

16

S213911

PIN

- mounts, Serial Range: dipperstick-tool

1шт.

17

S61973

AXLE PIN

PIN, clevis - 1/2" x 3.766" grip length

1шт.

S4641

PIN, SPLIT (COTTER)

PIN, cotter - 3/32" x 1" long

1шт.

18

S38354

LINK

guide - right hand

1шт.

19

S208704

PIN

- mounts tool cylinder base, Serial Range: end-dipperstick

1шт.

20

S208708

PIN

- mounts dippersticks to main boom

1шт.

21

S212135

PIN - mounts crowd cylinder base to main boom

1шт.

22

S212137

PIN

- mounts hoist cylinder base, Serial Range: end-turntable

1шт.

23

S201023M1

PIN

- mounts main, Serial Range: boom-turntable

1шт.

24

S61975

PIN,20.62mm OD x 106.76mm L

clevis - 5/8" x 3.766" grip length

1шт.

S4628

SPLIT PIN

PIN, cotter - 1/8" x 1-1/4" long

1шт.

25

S210602

BUSHING,63.42mm ID x 76.31mm OD x 50.8mm L

2шт.
