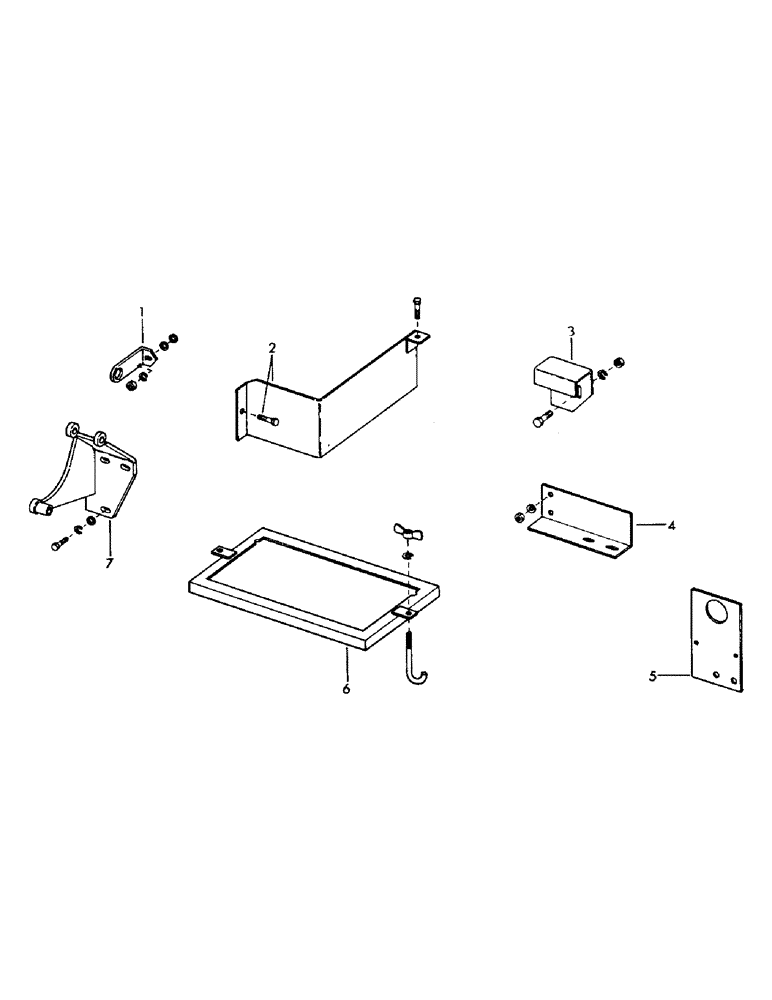

Запчасти Case 50 (I5) - ELECTRICAL MOUNTING BRACKETS AND HARDWARE (55) - ELECTRICAL SYSTEMS

1

203190

BRACKET, horn

1шт.

7385

WASHER, flat - 3/8"

2шт.

4395

WASHER

LOCKWASHER - 1/4"

1шт.

4220

TOOL

NUT - 1/4" NC

1шт.

2

208861

COVER, instrument panel

1шт.

7496

SCREW, self tapping - 1/4" x 1/2" NC

2шт.

3

72426

FILTER STRAINER

COVER, micro switch

2шт.

14575

ATTACHMENT

SCREW, machine - #6 x 1-1/4" NC

4шт.

80895

LOCKWASHER, external tooth - #6

4шт.

17261

FUNNEL

NUT, self locking - #6 NC

4шт.

4

209783

BRACKET, micro switch mounting

1шт.

7378

WASHER, flat - 1/4"

2шт.

4220

TOOL

NUT - 1/4" NC

2шт.

5

82254

SUPPORT, hourmeter and voltage regulator mounting

1шт.

6

202780

SPARE PART

BRACKET, battery hold down

2шт.

S86813

ROD

4шт.

Change in listing.

1шт.

4397

LOCKWASHER - 3/8"

4шт.

77941

NUT, wing - 3/8" NC

4шт.

7

211656

BRACKET, alternator mounting

1шт.

2402

LAMP

CPSW - 3/8" x 1-1/4" NC grade 5

3шт.

7385

WASHER, flat - 3/8"

3шт.

4397

LOCKWASHER - 3/8"

3шт.
