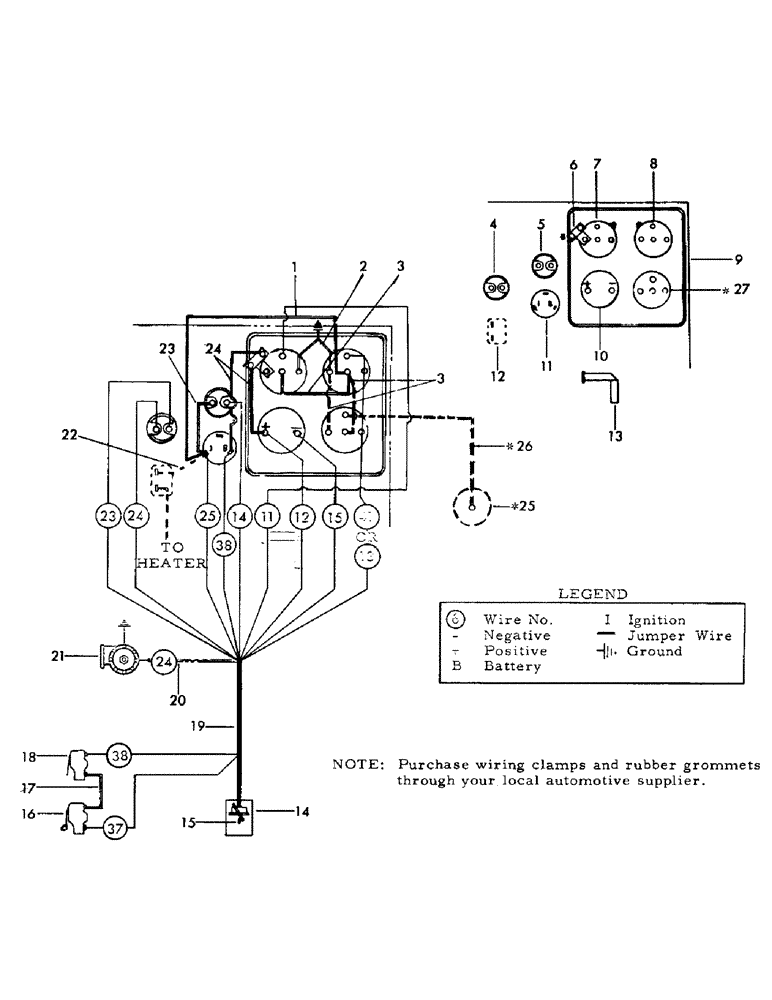

Запчасти Case 50 (I1) - INSTRUMENT PANEL AND TURNTABLE WIRING HARNESS, FOR GMC 6V-53 DIESEL ENGINE (55) - ELECTRICAL SYSTEMS

1

WIRE, jumper - 12 gauge wire 8" long

1шт.

2

WIRE, jumper - 2 leads of 14 gauge wire 5" long

1шт.

3

WIRE, jumper - 12 gauge wire 5" long

1шт.

4

NLS

NO LONGER SERVICED

BUTTON, horn - Delco-Remy #1996097

1шт.

5

NLS

NO LONGER SERVICED

BUTTON, starter - Delco-Remy #1996097

1шт.

6

49918

BREAKER, circuit - Lettlefuse #B-813030 or F.E.

1шт.

75869

KIT

LOCKWASHER, external tooth - #10

3шт.

17276

NUT - #10 NF

3шт.

7

27824M2

GAUGE, engine temperature - Stewart Warner #311-AH or F.E.

1шт.

8

27827M2

GAUGE, oil pressure - Stewart Warner #306-K or F.E.

1шт.

9

202345

EXCHANGE ENGINE

PANEL, instrument

1шт.

7496

SCREW, self tapping - 1/4" x 1/2" NC

2шт.

10

27828M1

AMMETER - Stewart Warner #357-X or F.E.

1шт.

11

76366

SWITCH, ignition - Delco-Remy #1116668 or F.E.

1шт.

12

SWITCH, heater - furnished with heater (Optional)

1шт.

13

206570

STRAP, instrument gauges ground

1шт.

14

76863

COVER, plastic - 10"

1шт.

15

73386

SPARE PART

TIE, cable - Panduit type LST-4 (Secures connector bodies together)

1шт.

16

80117

SWITCH, micro - roller lever #BZ-2RW82255T or F.E. (Mounts on left crawler control rod)

1шт.

17

WIRE, jumper - 14 gauge wire 20" long

1шт.

18

67614

SWITCH, micro - straight lever #BZ-2RW855T or F.E. (Controlled by the brake valve spool)

1шт.

19

39058M1

WIRING HARNESS, main

1шт.

20

62256

LOOM, auto non-metallic - 12" long

1шт.

21

203189

HORN - Delco-Remy #9000514

1шт.

64752

NUT - Delco-Remy #1958668 (Mounts horn to horn bracket)

1шт.

7378

WASHER, flat - 1/4" (Spacers for horn)

2шт.

22

WIRE, jumper - 16 gauge wire 8" long (Optional)

1шт.

23

WIRE, jumper - 14 gauge wire 5" long

1шт.

24

WIRE, jumper - 12 gauge wire 4" long

2шт.

25

S502600

SENDER UNIT

SENDING UNIT, fuel gauge

1шт.

Change in listing.

1шт.

26

WIRE, jumper - #14 gauge wire 84" long

1шт.

Change in listing.

1шт.

27

S27829M1

X

GAUGE, fuel

1шт.

Change in listing.

1шт.

S72044

PLUG

bottom - (Used to plug hole when fuel gauge is not used)

1шт.
