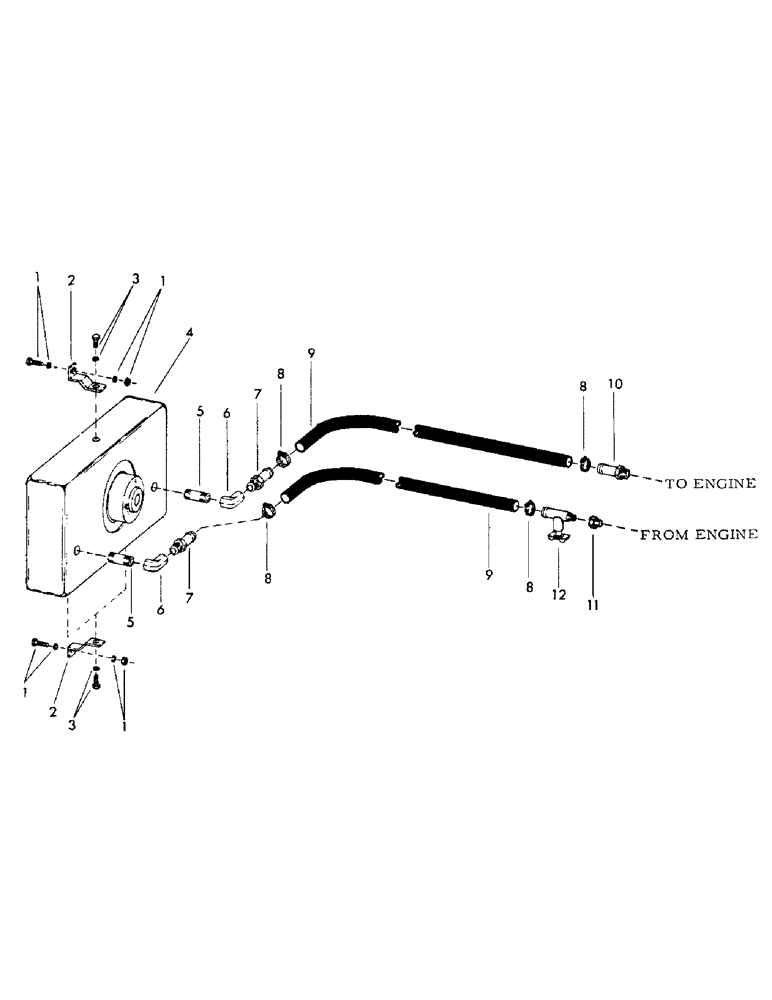

Запчасти Case 50 (J2) - HOT WATER HEATER GROUP (50) - CAB CLIMATE CONTROL

1

2350

STOP

CPSW - 1/4" x 3/4" NC grade 5

3шт.

4395

WASHER

LOCKWASHER - 1/4"

3шт.

7378

WASHER, flat - 1/4"

3шт.

4220

TOOL

NUT - 1/4" NC

3шт.

2

81613

BRACKET, heater mounting

3шт.

3

2349

CPSW - 1/4" x 1/2" NC grade 5

3шт.

4395

WASHER

LOCKWASHER - 1/4"

3шт.

4

39842

PIN

HEATER

1шт.

5

7844

NIPPLE - 1/2" NPT x 2" long

2шт.

6

60914

X

ELBOW, 90 degrees - 1/2" - 14 NPT female x 1/2" - 14 NPT female

2шт.

7

64491

END, hose

2шт.

8

10872

LARGE PLATE

CLAMP, hose - (Fits hoses from 5/8" ID to 3/4" ID)

4шт.

9

49608

HOSE, low pressure (Bulk) - 2 pieces - 5/8" ID x 87" long

1шт.

Indicates a change in listing.

1шт.

10

49606

DRIVE BUSHING

END, hose

1шт.

11

7772

BUSHING, reducing - 1/2" - 14 NPT male x 3/8" - 18 NPT female

1шт.

12

83788

VALVE, shut off

1шт.
