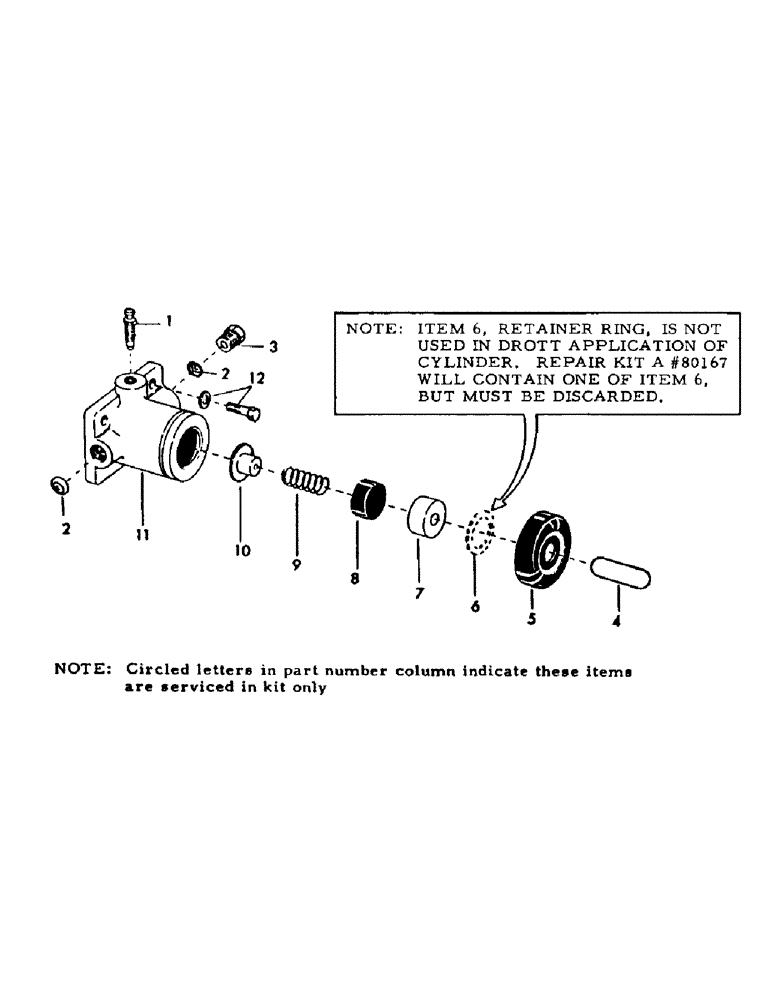

Запчасти Case 50 (E06) - TRACK BRAKE CYLINDER (48) - TRACKS & TRACK SUSPENSION

80167

KEY

KIT, service (Consists of 1, 2, 3, 5, 6, 7, 8, and 9)

1шт.

Circled letters in part number column indicate these items are serviced in kit only.

1шт.

209804

CYLINDER, winch brake (Consists of Refs. 1 thru 11)

1шт.

1

SCREW, bleeder

1шт.

Circled letters in part number column indicate these items are serviced in kit only.

1шт.

2

INSERT - 1/4" tube seat

2шт.

Circled letters in part number column indicate these items are serviced in kit only.

1шт.

3

PLUG - 1/4" tube seat

1шт.

Circled letters in part number column indicate these items are serviced in kit only.

1шт.

4

NSS

NOT SOLD SEPARAT

ROD, push

1шт.

5

BOOT

1шт.

Circled letters in part number column indicate these items are serviced in kit only.

1шт.

6

RING, retainer - (In # 80167 kit - do not use)

1шт.

Circled letters in part number column indicate these items are serviced in kit only.

1шт.

7

PISTON

1шт.

Circled letters in part number column indicate these items are serviced in kit only.

1шт.

8

CUP

1шт.

Circled letters in part number column indicate these items are serviced in kit only.

1шт.

9

SPRING, return

1шт.

Circled letters in part number column indicate these items are serviced in kit only.

1шт.

10

NSS

NOT SOLD SEPARAT

STOP, spring

1шт.

11

NSS

NOT SOLD SEPARAT

BODY

1шт.

12

2350

STOP

CPSW - 1/4" x 3/4" NC grade 5

2шт.

4395

WASHER

LOCKWASHER - 1/4"

2шт.
