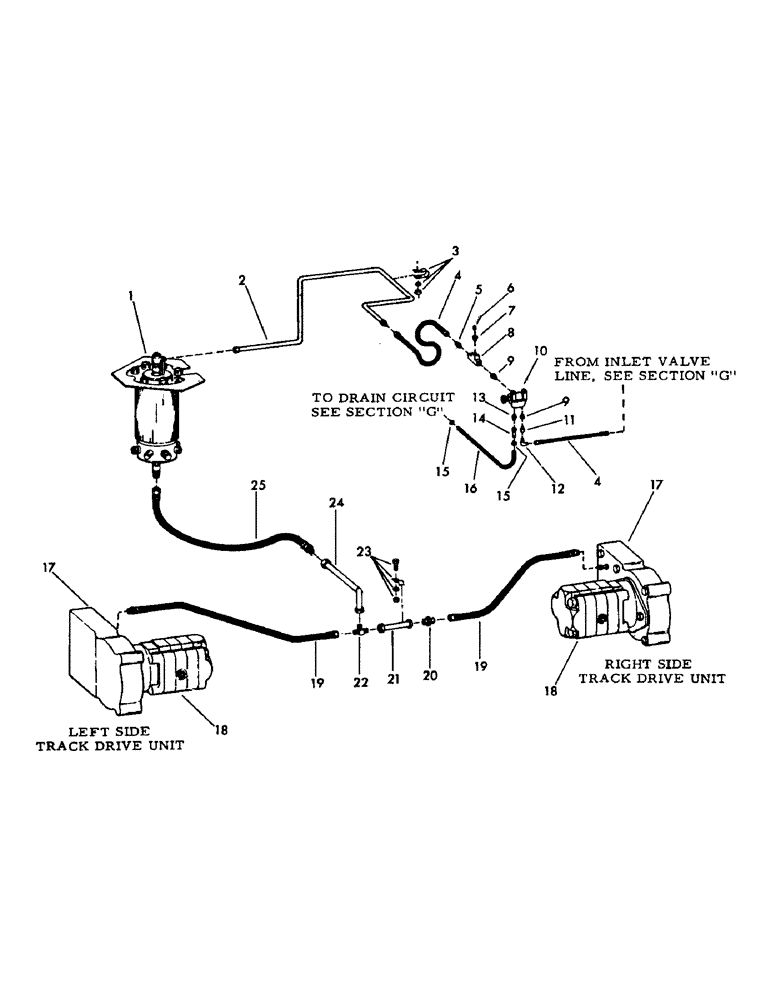

Запчасти Case 50 (E04) - TRACK BRAKE HYDRAULIC TUBING (48) - TRACKS & TRACK SUSPENSION

1

SWIVEL, hydraulic - (For breakdown, see section "H")

1шт.

2

39866

LINE, hydraulic

1шт.

3

75865

SPARE PART

CLAMP, tube

2шт.

4395

WASHER

LOCKWASHER - 1/4"

2шт.

4220

TOOL

NUT - 1/4" NC

2шт.

4

77121

HOSE, high pressure - 1/4" ID x 20" long

2шт.

5

101308

TOOTH

ADAPTER, flared - (3/8" tube) - 9/16" - 18 male x 3/8" - 18 NPT male - 37 degree flared

1шт.

6

15161

PLUG, pipe - 1/8" - 27 NPT

1шт.

Change in listing.

1шт.

7

7780

BUSHING, reducing - 3/8" - 18 NPT male x 1/8" - 27 NPT female

1шт.

8

17935

TEE - 3/8" - 18 NPT female x 3/8" - 18 NPT male x 3/8" - 18 NPT female

1шт.

9

7772

BUSHING, reducing - 1/2" - 14 NPT male x 3/8" - 18 NPT female

2шт.

10

VALVE, brake - (For breakdown, see Figure E01)

1шт.

11

78869

VALVE, check

1шт.

12

7734

PRESSURE SWITCH

ELBOW, 90 degree adapter - (3/8" tube) - 9/16" - 18 male x 1/4" NPT male - 37 degree flared

1шт.

13

101309

ADAPTER

flared - (3/8" tube) - 9/16" - 18 male x 1/2" - 14 NPT male

1шт.

14

209679

LINE, hydraulic

1шт.

15

10871

SEAL

CLAMP, hose - (Fits hoses 3/8" O.D. - 5/8" O.D.)

2шт.

16

202578

SCREW

HOSE, low pressure - (Bulk) - 3/8" ID x 43" long

1шт.

17

BRAKE, track - (For breakdown, see Figure E07)

2шт.

18

MOTOR, track drive - (For breakdown, see section "H")

2шт.

19

401729

HOSE, high pressure - 1/4" ID x 38" long - (With 7/16" - 10 male and female pressed on couplings)

2шт.

20

101331

HYD CONNECTOR

CONNECTOR, flared - (1/4" tube) - 7/16" - 20 male x 7/16" - 20 male - 37 degree flared

1шт.

21

211642

LINE, hydraulic

1шт.

22

60496

DRILL

TEE, flared - (1/4" tube) - 7/16" - 20 male x 7/16 - 20 male x 7/16" - 20 male - 37 degree flared

1шт.

23

75868

SPARE PART

CLAMP, tube

1шт.

2350

STOP

CPSW - 1/4" x 3/4" NC grade 5

1шт.

4395

WASHER

LOCKWASHER - 1/4"

1шт.

4220

TOOL

NUT - 1/4" NC

1шт.

24

211641

LINE, hydraulic

1шт.

25

401727

HOSE, high pressure - 1/4" ID x 30" long - (With 7/16" - 20 female and male pressed on couplings)

1шт.
