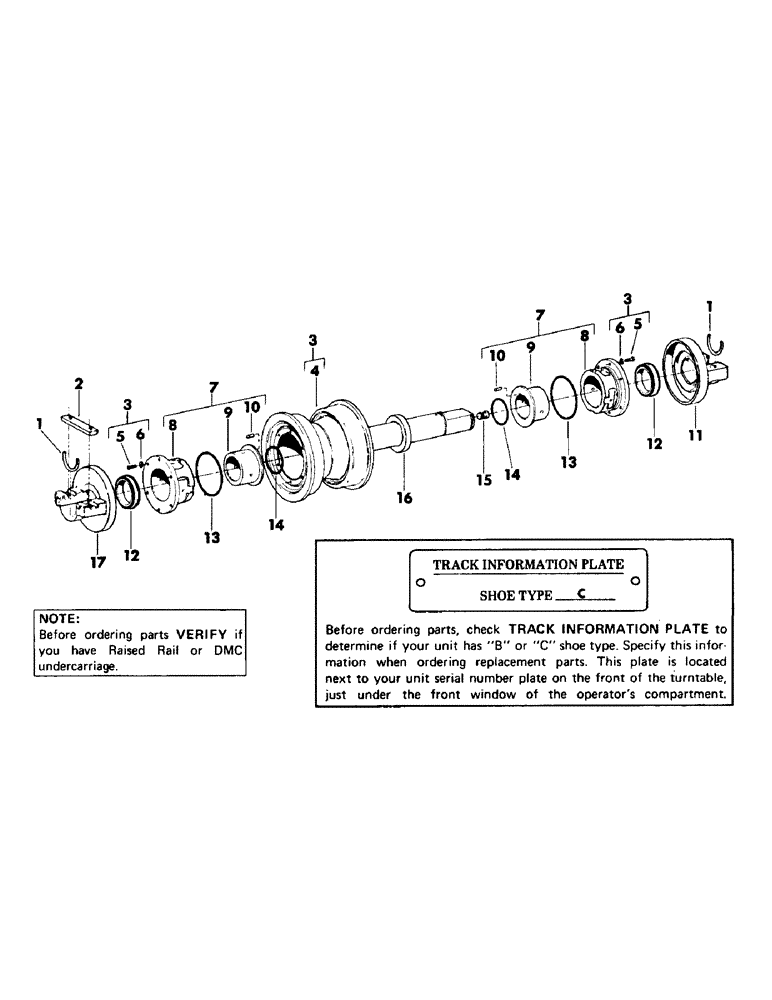

Запчасти Case 50 (B16) - RAISED RAIL TRACK ROLLER (48) - TRACKS & TRACK SUSPENSION

S504053

ROLLER

single flange track - complete (Consists of items 1 thru 17)

24шт.

1

S89317

RING, LOCKING

RING, snap -, Serial Range: (Shaft-collars)

2шт.

2

S89310

LOCK

1шт.

3

S89306

ROLLER

ASSEMBLY - (Includes items 4 thru 6)

1шт.

4

S89307

RIM

1шт.

5

S87457

CAPSCREW

CPSW

12шт.

6

S4397

WASHER

lock

12шт.

7

S89315

BUSHING

ASSEMBLY - (Includes items 8 thru 10)

2шт.

8

S90509

BUSHING

- (Cast iron)

2шт.

9

S89312

BUSHING

- (Bronze)

2шт.

10

S89318

PIN

- (Quantity of two with each bushing assembly)

4шт.

11

S89314

COLLAR

outer

1шт.

12

S209139

SEAL

GROUP

2шт.

13

S89313

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - 2.234" ID x 2.500" OD - (Bushing seal)

2шт.

14

S6315

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

"O" RING - 1.859" ID x 2.125" OD - (Collar to shaft)

2шт.

15

S87854

PLUG

oil filler - (3/4" diameter)

1шт.

16

S89316

SHAFT

1шт.

17

S89309

COLLAR

inner

1шт.
