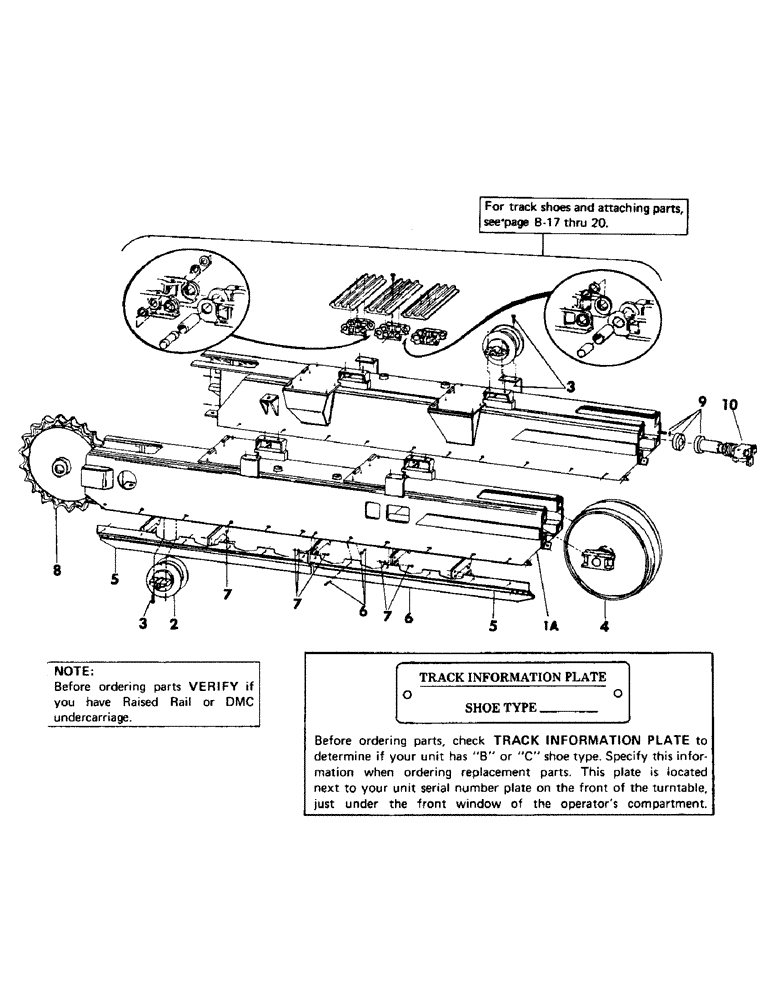

Запчасти Case 50 (B11) - RAISED RAIL TRACK FRAME AND ATTACHING PARTS, (USED ON UNITS WITH S/N 307 - UP) (48) - TRACKS & TRACK SUSPENSION

1

S952426M1

FRAME - right hand track

1шт.

1a

S952427M1

FRAME - left hand track

1шт.

2

ROLLER, track - (For breakdown, see page)

24шт.

3

S83629

BOLT

CPSW - 5/8" NC x 2" gr 8 - (4 per roller mounting) - (Quantity of 96 used on units with "C" identification plates and quantity of 80 used on units with "B" identification plates)

1шт.

S2506

BOLT (MACHINE)

CPSW - 5/8" NC x 2 1/2" gr 5 - (Mounts top rollers)

16шт.

S17088

NUT

self locking - 5/8" NC

16шт.

4

WHEEL, front idler - (For breakdown see Figure B13)

2шт.

5

S215814

GUIDE BAR, track rail - (Right front and left rear)

2шт.

S215815

GUIDE BAR, track rail - (Left front and right rear) (NOTE: Bars bolt to track frames at bottom front and rear, inner and outer)

2шт.

S83408

BOLT

CPSW

16шт.

S4399

WASHER

lock - 1/2"

16шт.

6

S215816

GUARD, track - (Inner and outer) - (Consists of two)

2шт.

S215818

GUARD, track - (Inner and outer) - (Consists of two)

2шт.

S76337

BOLT

CPSW

20шт.

S86132

WASHER

flat - (Hardened)

20шт.

S4399

WASHER

lock - 1/2"

20шт.

7

S216665

BRACKET, track guard mounting

5шт.

S76337

BOLT

CPSW

20шт.

S86132

WASHER

flat - (Hardened)

20шт.

S4399

WASHER

lock - 1/2"

20шт.

S86678

SHIM

10шт.

S88679

SHIM

10шт.

8

S952423

DRIVE SPROCKET

SPROCKET, drive

2шт.

9

CYLINDER, track adjustment - (For breakdown see Figure B06)

2шт.

10

TRACK ADJUSTER GROUP - (For breakdown see Figure B13)

2шт.
