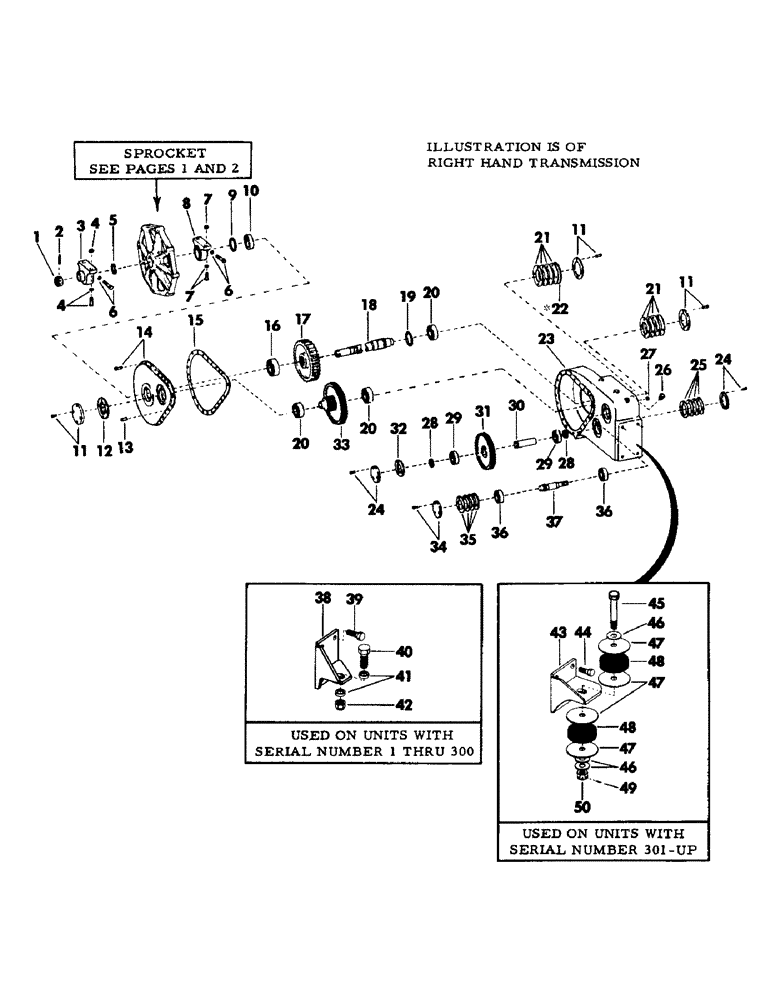

Запчасти Case 50 (B08) - FINAL DRIVE TRANSMISSON, (RATIO 68.08:1) (48) - TRACKS & TRACK SUSPENSION

S602005

TRANSMISSION, final drive - complete (Consists of Refs. 1, 2, 10 thru 37 and Refs. 15 thru 18 and 20 as illustrated on Figure E07) - (Right hand)

1шт.

Change in listing.

1шт.

S602006

TRANSMISSION, final drive - complete (Consists of Refs. 1, 2, 10 thru 37 and Refs. 15 thru 18 and 20 as illustrated on Figure E07) - (Left hand)

1шт.

Change in listing.

1шт.

1

S9311

NUT

- 2" NF

1шт.

Part of final drive transmission P/N S602005

1шт.

2

S5462

PIN

roll - 5/16" x 2-3/4" long

1шт.

Part of final drive transmission P/N S602005

1шт.

3

S209722

BLOCK

pillow - (Outer)

1шт.

4

S75591

BOLT

CPSW - 5/8" NC x 3-1/2" grade 8 - (Mounts pillow, Serial Range: block-frame)

1шт.

S84753

WASHER

flat - 5/8" - (Hardened)

1шт.

S17088

NUT

self locking - 5/8" NC

1шт.

5

S83872M1

X

SPACER - (Outer)

1шт.

Change in listing.

1шт.

6

S12261

CAPSCREW

CPSW - 3/4" NC x 3" - (Hexagon head top) - (Pillow block adjustment)

2шт.

86632557

JAM NUT,Jam, 3/4"-10, G5

NUT, jam - 3/4" NC

2шт.

7

S84785

BOLT

CPSW - 3/4" NC x 4-1/2" - (Special) - (Mounts pillow, Serial Range: block-frame)

1шт.

S84752

WASHER

flat - 3/4" (Hardened)

1шт.

S17089

NUT

self locking - 3/4" NC

1шт.

8

S212544

BEARING CARRIER

BLOCK, pillow - (Inner)

1шт.

9

S83873

SPACER

- (Inner)

1шт.

10

S83874

OIL SEAL

SEAL, oil

1шт.

Part of final drive transmission P/N S602005

1шт.

11

S217974M1

COVER

bearing

3шт.

Change in listing.

1шт.

Part of final drive transmission P/N S602005

1шт.

S91176

CAPSCREW

CPSW - 3/8" NC x 7/8" - (Socket head nylock)

12шт.

Change in listing.

1шт.

Part of final drive transmission P/N S602005

1шт.

12

S204088

SHIM,.010" Thk

Gasket .010" Thk

1шт.

Part of final drive transmission P/N S602005

1шт.

13

S65037

DOWEL

- 5/8" x 1-1/4" long

2шт.

Part of final drive transmission P/N S602005

1шт.

14

S952720

COVER

transmission

1шт.

Change in listing.

1шт.

Part of final drive transmission P/N S602005

1шт.

S4113

CAPSCREW

CPSW - 1/2" NC x 1-1/8" - (Socket head nylock)

22шт.

Change in listing.

1шт.

Part of final drive transmission P/N S602005

1шт.

15

S601621

GASKET

GASKET, transmission cover

1шт.

Change in listing.

1шт.

Part of final drive transmission P/N S602005

1шт.

16

S83875

ROLLER BEARING

BEARING, roller

1шт.

Part of final drive transmission P/N S602005

1шт.

17

S600865M1

X

GEAR, output

1шт.

Change in listing.

1шт.

Part of final drive transmission P/N S602005

1шт.

18

S59165M2

X

SHAFT, output

1шт.

Change in listing.

1шт.

Part of final drive transmission P/N S602005

1шт.

19

S76259

RING, SNAP

RING, retaining

1шт.

Part of final drive transmission P/N S602005

1шт.

20

S65025

BEARING ASSY

BEARING, roller

3шт.

Part of final drive transmission P/N S602005

1шт.

21

S204085

GASKET

shim - .003"

1шт.

Part of final drive transmission P/N S602005

1шт.

S204086

SHIM,.005" Thk

Gasket .005" Thk

1шт.

S204087

SHIM,.007" Thk

Gasket .007" Thk

1шт.

S204088

SHIM,.010" Thk

Gasket .010" Thk

1шт.

22

S204097

SHIM,.030" Thk

Gasket .030" Thk

1шт.

Added listing.

1шт.

Part of final drive transmission P/N S602005

1шт.

23

S952724

HOUSING

transmission - (Right hand)

1шт.

Change in listing.

1шт.

Part of final drive transmission P/N S602005

1шт.

S952725

HOUSING

transmission (Left hand)

1шт.

Change in listing.

1шт.

24

S210368

COVER

bearing

2шт.

Part of final drive transmission P/N S602005

1шт.

S3896

CAPSCREW

CPSW - 3/8" NC x 3/4" - (Socket head nylock)

6шт.

25

S204089

SHIM,.003" Thk

Gasket .003" Thk

1шт.

Part of final drive transmission P/N S602005

1шт.

S204090

SHIM,.005" Thk

Gasket .005" Thk

1шт.

S204091

SHIM,.007" Thk

Gasket .007" Thk

1шт.

S204092

SHIM,.010" Thk

Gasket .010" Thk

1шт.

26

S15165

PLUG, pipe - 3/4" NPT - (Hexagon head) - (Breather hole)

1шт.

Change in listing.

1шт.

Part of final drive transmission P/N S602005

1шт.

27

S7880

PLUG

pipe - 3/4" NPT - (Socket head)

2шт.

Part of final drive transmission P/N S602005

1шт.

28

S62725

RING

retainer

2шт.

Part of final drive transmission P/N S602005

1шт.

29

S65035

ROLLER BEARING

BEARING, roller

2шт.

Part of final drive transmission P/N S602005

1шт.

30

S210366

SHAFT

intermediate

1шт.

Part of final drive transmission P/N S602005

1шт.

31

S53338

GEAR

CLUSTER, intermediate

1шт.

Part of final drive transmission P/N S602005

1шт.

32

S204092

SHIM,.010" Thk

Gasket .010" Thk

1шт.

Part of final drive transmission P/N S602005

1шт.

33

S601244

GEAR

CLUSTER AND SHAFT

1шт.

Change in listing.

1шт.

Part of final drive transmission P/N S602005

1шт.

34

S203411

COVER

bearing

1шт.

Part of final drive transmission P/N S602005

1шт.

S3896

CAPSCREW

CPSW - 3/8" NC x 3/4" - (Socket head nylock)

3шт.

Part of final drive transmission P/N S602005

1шт.

35

S204093

SHIM,.003" Thk

Gasket .003" Thk

1шт.

Part of final drive transmission P/N S602005

1шт.

S204094

SHIM

GASKET, shim - .005"

1шт.

Part of final drive transmission P/N S602005

1шт.

S204095

SHIM

GASKET, shim - .007"

1шт.

Part of final drive transmission P/N S602005

1шт.

S204096

SHIM,.010" Thk

Gasket .010" Thk

1шт.

Part of final drive transmission P/N S602005

1шт.

36

S65036

BEARING ASSY

BEARING, roller

2шт.

Part of final drive transmission P/N S602005

1шт.

37

S34044

SHAFT

input pinion

1шт.

Part of final drive transmission P/N S602005

1шт.

38

S209229M1

X

BRACKET, transmission mounting - (Right hand) - (Illustrated)

1шт.

S209230M1

X

BRACKET, transmission mounting - (Left hand) - (Not illustrated)

1шт.

39

S2542

BOLT

CPSW - 3/4" NC x 1-1/2" grade 5 -, Serial Range: (Bracket-transmission)

4шт.

40

S88563

BOLT

CPSW - 1" NC x 3" grade 8 -, Serial Range: (Bracket-frame)

1шт.

Change in listing.

1шт.

41

S91091

WASHER

flat - 1" - (Special)

2шт.

Change in listing.

1шт.

42

231-14016

LOCK NUT,1"-8, GB

NUT, self locking - 1" NC

1шт.

Change in listing.

1шт.

43

S217967

BRACKET, transmission mounting - (Right hand) - (Illustrated)

1шт.

Added listing.

1шт.

S217968

BRACKET, transmission mounting - (Left Hand) - (Not illustrated)

1шт.

44

S2542

BOLT

CPSW - 3/4" NC x 1-1/2" grade 5 -, Serial Range: (Bracket-transmission)

4шт.

Added listing.

1шт.

45

S91560

BOLT

CPSW

1шт.

Added listing.

1шт.

46

S89556

WASHER

flat - 1-1/16" - (Special)

3шт.

Added listing.

1шт.

47

S89925

WASHER

4шт.

Added listing.

1шт.

48

S89926

SPRING

ER, elastomer neoprene

2шт.

Added listing.

1шт.

49

S4674

SPLIT PIN

PIN, cotter - 1/4" x 2" long

1шт.

Added listing.

1шт.

50

S89793

NUT

castle - 1" NC

1шт.

Added listing.

1шт.
