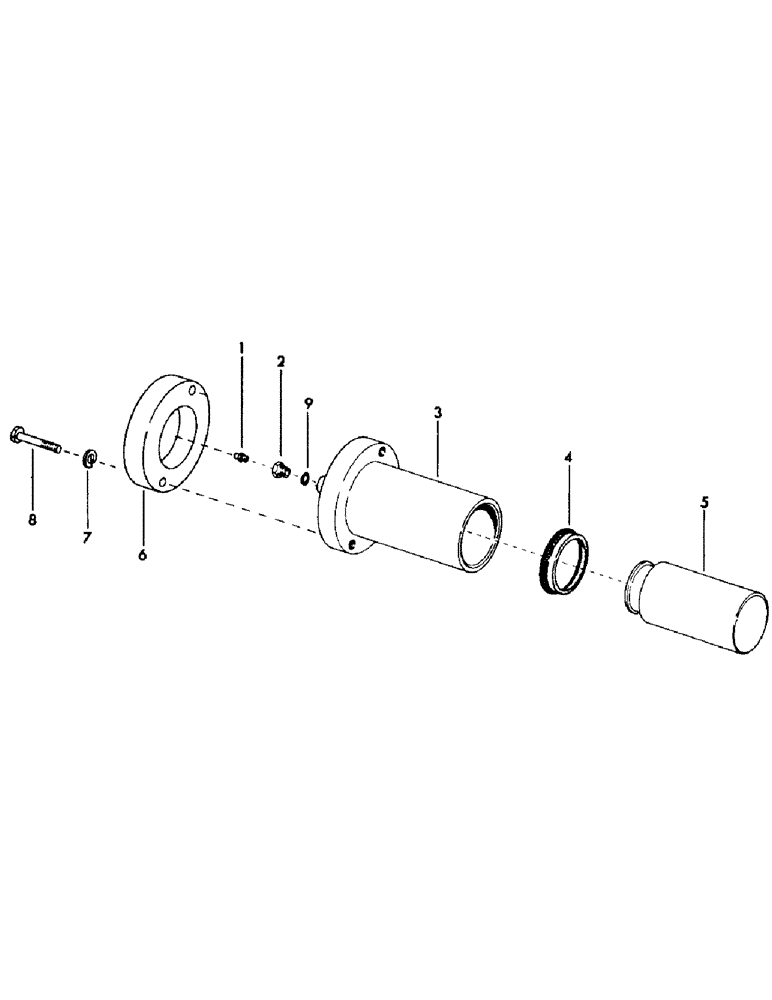

Запчасти Case 50 (B06) - TRACK ADJUSTMENT CYLINDER, (USED ON DMC AND RAISED RAIL UNDERCARRIAGE) (48) - TRACKS & TRACK SUSPENSION

NLS

NO LONGER SERVICED

CYLINDER, track adjustment - complete (Consists of Refs. 1 thru 5 and 9)

2шт.

1

S86260

FITTING

grease - 1/4" NPT (Straight)

1шт.

Change in listing.

1шт.

2

79901

ADAPTER - 1/4" NPT female x 9/16" male (Includes "O" ring)

1шт.

3

39298

TUBE, cylinder

1шт.

4

78837

SEAL

1шт.

5

209107

PISTON

1шт.

6

79135

SPACER, cylinder mounting

1шт.

7

4399

WASHER

LOCKWASHER - 1/2"

2шт.

8

S2469

BOLT

CPSW - 1/2" x 4" NC grade 5 (Mounts cylinder to track frame assembly)

2шт.

Change in listing.

1шт.

9

6059

KEY

"O" RING - .406 ID x .547 O.D. (Used with 79901)

1шт.
