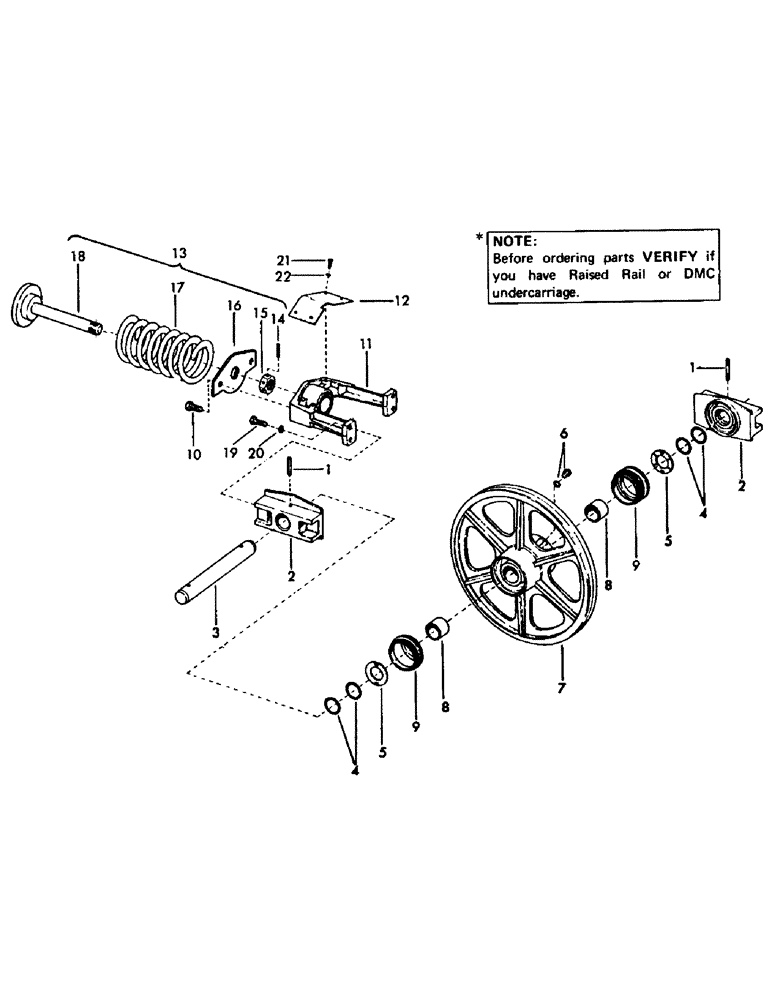

Запчасти Case 50 (B04) - DMC IDLER WHEEL AND TRACK ADJUSTER, (USED ON UNITS WITH S/N 1 THRU 306) (48) - TRACKS & TRACK SUSPENSION

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

WHEEL, idler - complete (Consists of Refs. 1 thru 9)

2шт.

1

5526

TRIP

PIN, roll - 33/64" x 3" long

2шт.

Part of idler wheel P/N 39519

1шт.

2

39261

BLOCK, guide

2шт.

Part of idler wheel P/N 39519

1шт.

3

78699

SHAFT

1шт.

Part of idler wheel P/N 39519

1шт.

4

6318

O-RING

"O" RING - 2.234" ID x 2.500" O.D.

4шт.

Part of idler wheel P/N 39519

1шт.

5

78702

WASHER

2шт.

Part of idler wheel P/N 39519

1шт.

6

8993

FITTING

PLUG, "O" ring - 1/2" male thread (Includes "O" ring)

1шт.

Part of idler wheel P/N 39519

1шт.

6058

O-RING

"O" RING - .414" ID x .558" O.D.

1шт.

7

NLS

NO LONGER SERVICED

WHEEL, idler - includes Ref. 8

1шт.

Part of idler wheel P/N 39519

1шт.

8

78703

BUSHING

2шт.

Part of idler wheel P/N 39519

1шт.

9

209139

SEAL SET

2шт.

Part of idler wheel P/N 39519

1шт.

TRACK ADJUSTER - less hydraulics (For breakdown of cylinder, see figure 6)

2шт.

10

2503

BOLT

CPSW - 5/8" x 1-3/4" NC grade 5

2шт.

11

56819

YOKE, idler

1шт.

12

39342

COVER, yoke

1шт.

13

39292M1

SPRING ASSEMBLY, track tension - (Includes Refs. 14 thru 18)

1шт.

14

5436

PIN, roll - 1/4" x 1-7/8" long

1шт.

Part of spring assembly P/N 39292M1

1шт.

15

78770

NUT, special

1шт.

Part of spring assembly P/N 39292M1

1шт.

16

209094

PLATE, end

1шт.

Part of spring assembly P/N 39292M1

1шт.

17

S214697

SPRING

1шт.

Change in listing.

1шт.

Part of spring assembly P/N 39292M1

1шт.

18

209093M2

GUIDE

1шт.

Part of spring assembly P/N 39292M1

1шт.

19

2467

CPSW - 1/2" x 1-1/2" NC grade 5

4шт.

20

4399

WASHER

LOCKWASHER - 1/2"

4шт.

21

2401

LAMP

CPSW - 3/8" x 1" NC grade 5

4шт.

22

4397

LOCKWASHER - 3/8"

4шт.
