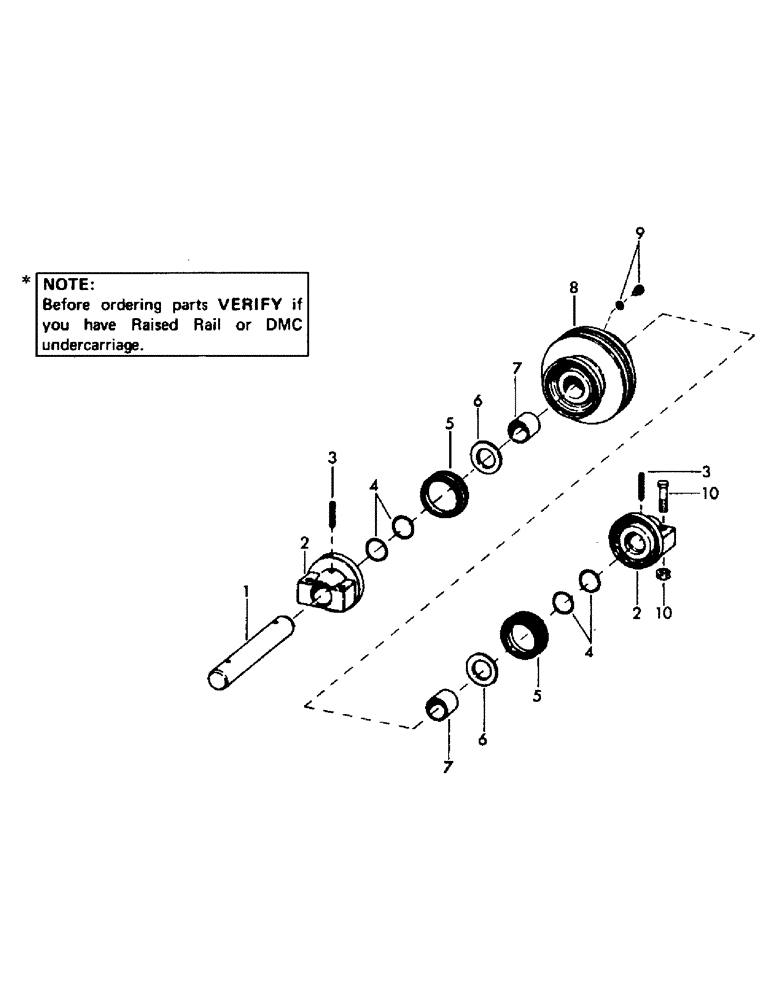

Запчасти Case 50 (B02) - * DMC TRACK ROLLER, (USED ON UNITS WITH SERIAL NUMBER 1 THRU (48) - TRACKS & TRACK SUSPENSION

39510M1

ROLLER, track, - complete (Consists of items 1 thru 9)

24шт.

1

78699

SHAFT

1шт.

2

39257M1

HUB, track roller

2шт.

3

5526

TRIP

PIN , roll - 33/64" x 3" long

2шт.

4

6318

O-RING

"O" RING - 2.234" ID x 2.500" OD

4шт.

5

209139

SEAL SET

2шт.

6

78702

WASHER

2шт.

7

78703

BUSHING

2шт.

8

39511

ROLLER - (Includes 2 of item 7)

1шт.

9

8993

FITTING

PLUG - "O" ring - 1/2" male thread (Includes "O" ring)

1шт.

6058

O-RING

"O" RING - .414" ID x .558" OD

1шт.

10

2511

FLEXIBLE HOSE

CPSW - 5/8" x 3-3/4" NC gr 5 (Mounts roller to track frames)

4шт.

4401

PTO

LOCKWASHER - 5/8"

4шт.

4226

- 5/8" NC (Used to mount upper rollers on track frame only)

4шт.
