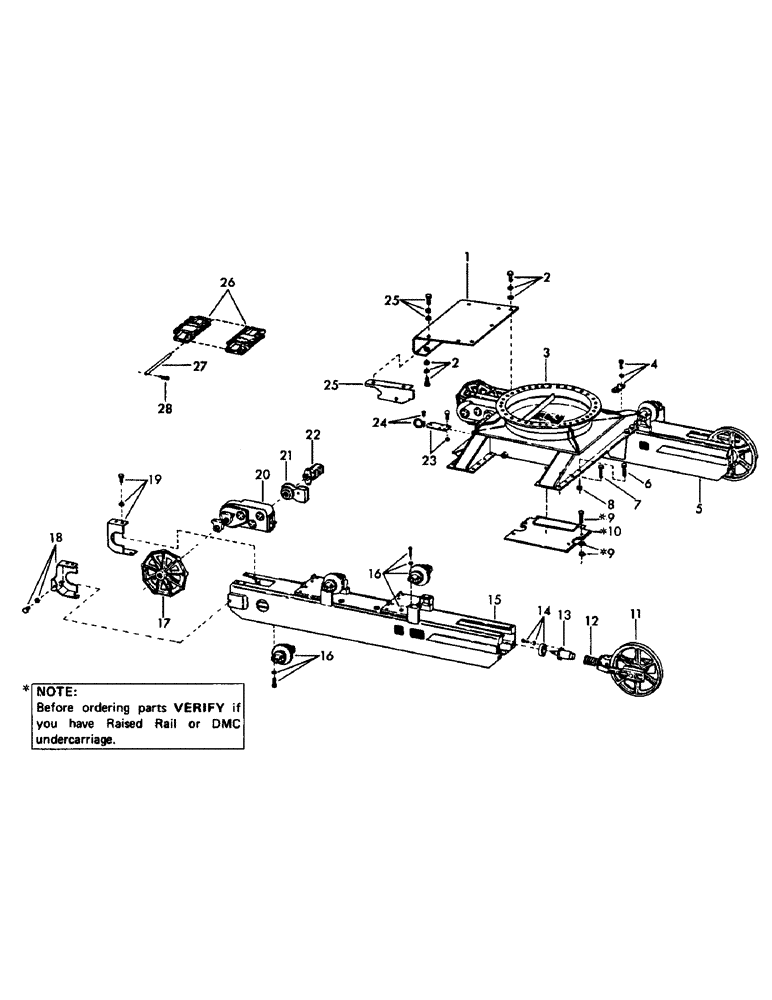

Запчасти Case 50 (B01) - DMC TRACK FRAME AND ATTACHING PARTS, (USED ON UNITS WITH S/N 1 THRU 306) (48) - TRACKS & TRACK SUSPENSION

1

502292

GUARD, motor

1шт.

2

2466

ENGINE

CPSW - 1/2" x 1-1/4" NC grade 5 (Mounts guard to top of carbody)

3шт.

2468

TACHOMETER

CPSW - 1/2" x 1-3/4" NC grade 5 (Mounts guard to bottom of carbody)

2шт.

7393

WASHER, flat - 1/2"

5шт.

4399

WASHER

LOCKWASHER - 1/2"

5шт.

3

951701

CARBODY

1шт.

4

209072

STOP, track adjusting

4шт.

2466

ENGINE

CPSW - 1/2" x 1-1/4" NC grade 5

8шт.

4399

WASHER

LOCKWASHER - 1/2"

8шт.

5

951689

FRAME, track - left hand

1шт.

6

S84906

BOLT

CPSW - 5/8" NC x 2" grade 8 (Mounts carbody to track frame)

16шт.

Change in listing.

1шт.

7

S84905

BOLT

CPSW - 5/8" NC x 1-3/4" grade 8 (Mounts carbody to track frame)

16шт.

Change in listing.

1шт.

8

17172

NUT

self locking - 3/4 " NC

32шт.

9

S9093

NUT, self locking - 5/8" NC

8шт.

Change in listing.

1шт.

S2504

CPSW - 5/8" NC x 2 " grade 5

8шт.

Added listing.

1шт.

S7401

WASHER - 5/8"

1шт.

Added listing.

1шт.

10

S213950

PLATE, swivel guard

2шт.

Change in listing.

1шт.

11

WHEEL, front idler - (For breakdown, see Figure B04)

2шт.

12

TRACK ADJUSTER GROUP - (For breakdown, see Figure B04)

2шт.

13

CYLINDER, track adjuster - (For breakdown, see Figure B06)

2шт.

14

S79135

SPACER

- to mount tract adjuster cylinder

2шт.

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

4шт.

S4399

WASHER

LOCKWASHER - 1/2"

4шт.

15

S951688

FRAME, track - right hand

1шт.

16

ROLLER, track - (For breakdown, see figure 3)

24шт.

S2511

BOLT (MACHINE)

CPSW - 5/8" NC x 3-3/4" grade 5

96шт.

S4401

LOCKWASHER - 5/8"

96шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

(Used to mount upper rollers on track only) 5/8"-11, G5

16шт.

17

S952076M1

WHEEL, sprocket drive

2шт.

Change in listing.

1шт.

18

S39272M1

COVER, bearing - outside left hand

1шт.

S39273M1

COVER, bearing - outside right hand

1шт.

S2464

BOLT

CPSW - 1/2" NC x 3/4" grade 5 - (Quantity of 3 used with each cover)

6шт.

S4399

WASHER

LOCKWASHER - 1/2"

6шт.

19

S39264M1

COVER, bearing - inside left hand

1шт.

S39265M1

COVER, bearing - inside right hand

1шт.

S2464

BOLT

CPSW - 1/2" NC x 3/4" grade 5 - (Quantity of 3 used with each cover)

6шт.

S4399

WASHER

LOCKWASHER - 1/2"

6шт.

20

TRANSMISSION, final drive - left hand - (For breakdown see Figure B08)

1шт.

TRANSMISSION, final drive - right hand - (For breakdown see Figure B08)

1шт.

21

BRAKE, track drive - left hand - (For breakdown, see section "E")

1шт.

BRAKE, track drive - right hand - (For breakdown, see section "E")

1шт.

22

MOTOR, track crawler drive - (For breakdown, see section "H")

2шт.

23

S209710

PLATE

draw bar

1шт.

S2548

BOLT (MACHINE)

CPSW - 3/4" NC x 2-3/4" grade 5

4шт.

S4227

NUT

- 3/4" NC

4шт.

24

S100742

SHACKLE

round pin

1шт.

25

S211602

SHIELD, dirt - left hand (Not illustrated)

1шт.

S211601

SHIELD, dirt - right hand (Illustrated)

1шт.

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" gade 5 - (Quantity of 3 used with each shield)

6шт.

S7393

WASHER

flat - 1/2"

6шт.

S4399

WASHER

LOCKWASHER - 1/2"

6шт.

26

S951809M1

SHOE, track - 30" slope bottom pad (Standard)

92шт.

S951533M1

SHOE, track - 24" slope bottom pad (Optional)

92шт.

27

S209355

PIN, track - (Fits standard 30" slope bottom pad)

92шт.

S209377

PIN

track - (Fits optional 24" slope bottom pad)

92шт.

28

S65031M1

PIN

clinch

92шт.
