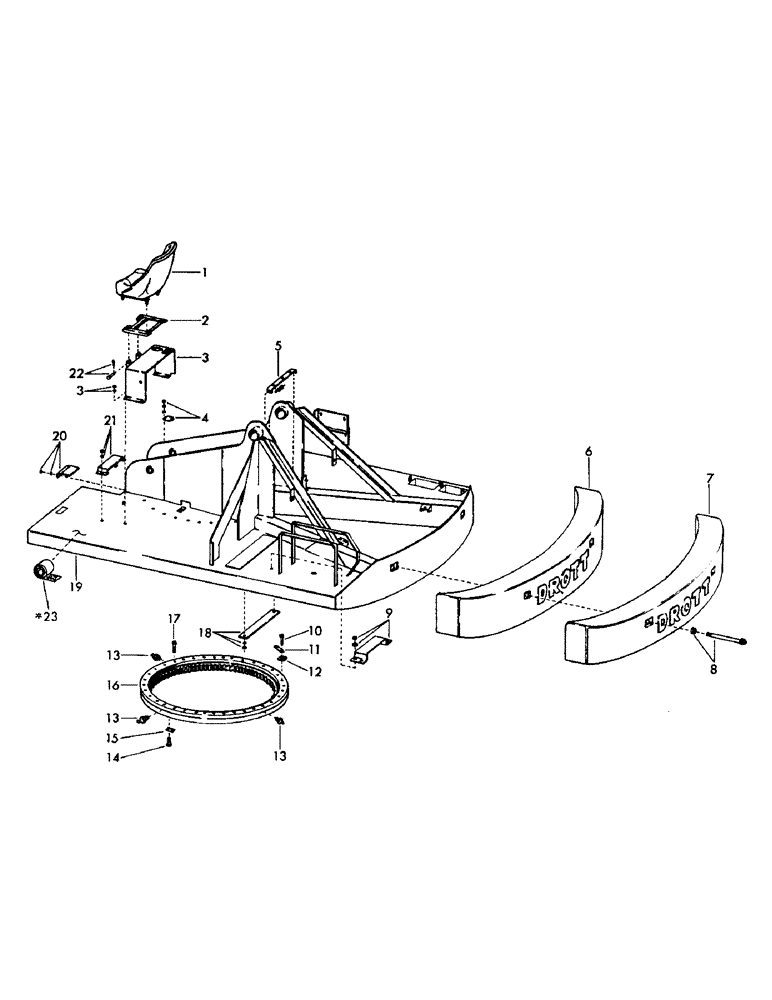

Запчасти Case 50 (D01) - COUNTERWEIGHTS, TURNTABLE, BEARING AND ATTACHING PARTS (39) - FRAMES AND BALLASTING

1

27632M1

SEAT, bucket

1шт.

2

31874

PIN

BRACKET, seat mounting

1шт.

3

37936M1

BRACKET, seat and instrument mounting

1шт.

7389

WASHER, flat - 7/16"

4шт.

17167

LOCK NUT

NUT, self locking - 3/8"

4шт.

4

76664

COVER, bearing access

1шт.

7389

WASHER, flat - 7/16"

2шт.

4397

LOCKWASHER - 3/8"

2шт.

77941

NUT - 3/8"

2шт.

5

68667

BRACKET, hydraulic line clamp mounting

1шт.

7395

WASHER, flat - 1/2"

2шт.

17169

NUT, self locking - 1/2"

2шт.

6

S56579

COUNTERWEIGHT

1шт.

7

S58468

COUNTERWEIGHT

1шт.

8

S211588

STUD ASSEMBLY

2шт.

S17095

NUT

self locking - 1-1/2" NC

2шт.

9

S211222

BRACKET

1шт.

S7395

WASHER

flat - 1/2"

4шт.

S17169

INSTRUCTION

NUT, self locking - 1/2"

4шт.

10

S84906

BOLT

CPSW - 5/8" NC x 2" - (Special) - mounts, Serial Range: bearing-turntable

30шт.

Part of turntable bearing P/N S59392

1шт.

11

S84753

WASHER

hardened -, Serial Range: (Bearing-flange)

30шт.

Change in listing.

1шт.

Part of turntable bearing P/N S59392

1шт.

12

S77916

SHIM,.005" Thk

(Bearing to turntable and reducer mounting) .005" Thk

1шт.

S77917

SHIM,.010" Thk

(Bearing to turntable) .010" Thk

1шт.

S77918

SHIM,.015" Thk

(Bearing to turntable) .015" Thk

1шт.

S77919

SHIM,.030" Thk

(Bearing to turntable and reducer mounting) .030" Thk

1шт.

S77920

SHIM,.060" Thk

(Bearing to turntable) .060" Thk

1шт.

S84889

SHIM,.003" Thk

1шт.

Added listing.

1шт.

S84890

SHIM,.007" Thk

1шт.

Added listing.

1шт.

13

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT (Straight)

3шт.

14

S84905

BOLT

CPSW - 5/8" NC x 1-3/4" - (Special) - mounts, Serial Range: bearing-flange

36шт.

Part of turntable bearing P/N S59392

1шт.

15

S84753

WASHER

hardened -, Serial Range: (Bearing-flange)

36шт.

Change in listing.

1шт.

Part of turntable bearing P/N S59392

1шт.

16

S59392

PACKAGE

BEARING, turntable - (Mounts to underneath of turntable) - (Includes Refs. 10, 11, 14, 15, 16, 17)

1шт.

Part of turntable bearing P/N S59392

1шт.

17

S86503

BOLT

CPSW - 5/8" NC x 2-1/4" grade 8 (Mounts bearing to turntable through swing reducer support)

4шт.

Change in listing.

1шт.

Part of turntable bearing P/N S59392

1шт.

18

S76663

PLATE, valve access

1шт.

S7389

WASHER

flat - 7/16"

2шт.

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

2шт.

19

S952010

TURNTABLE

1шт.

20

S208984

COVER, turntable bearing cpsws - (Used on earlier models)

1шт.

S7389

WASHER

flat - 7/16"

2шт.

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

2шт.

21

S202306

COVER, link

1шт.

S7389

WASHER

flat - 7/16"

2шт.

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

2шт.

22

S10809

PIN

clevis - 1/2" x 1.516" grip length

2шт.

S4628

SPLIT PIN

PIN, cotter - 3/32" x 1" long

2шт.

23

S84068

ADHESIVE STRIP

STRIP, non skid - (Bulk) - 1 piece - 102" long

1шт.

S84068

ADHESIVE STRIP

STRIP, non skid - (Bulk) - 1 piece - 120" long

1шт.
