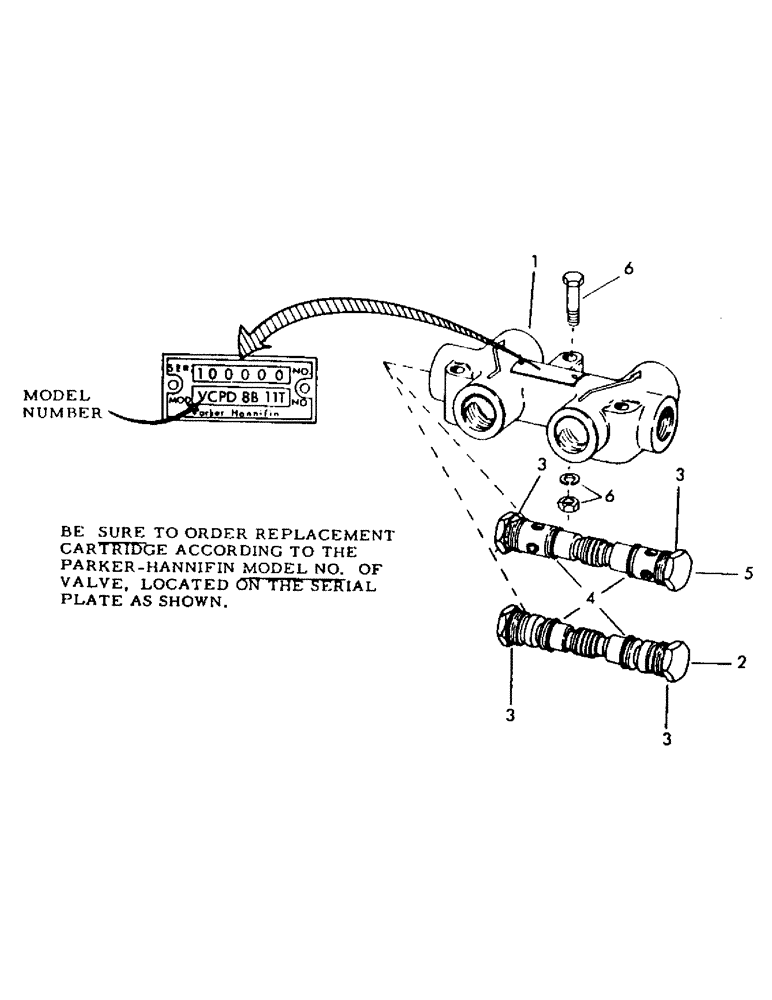

Запчасти Case 50 (H17) - CHECK VALVE, (LEVELER) (35) - HYDRAULIC SYSTEMS

S33333

CHECK VALVE

VALVE, leveler check - complete (Consists of items 1 thru 4 or 1 and 3 thru 5)

1шт.

1

NSS

NOT SOLD SEPARAT

BODY, valve

1шт.

2

S61960

CARTRIDGE, double acting (Includes items 3 and 4) This cartridge fits Parker-Hannifin check valve model VCP8BIA only

1шт.

3

S12184

O-RING

"O" RING, plug - (Fits both cartridges)

2шт.

4

S12584

O-RING

"O" RING, sleeve and poppet - (Fits both cartridges)

2шт.

5

S61961

CHECK VALVE

CARTRIDGE, double acting (Includes items 3 and 4) This cartridge fits Parker-Hannifin check valve model VCPD8B11T only

1шт.

6

S2355

BOLT

CPSW - 1/4" x 2" NC gr 5 (Mounts, Serial Range: valve-frame)

1шт.

S4395

WASHER, LOCK

LOCKWASHER - 1/4"

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

- 1/4" NC

2шт.
