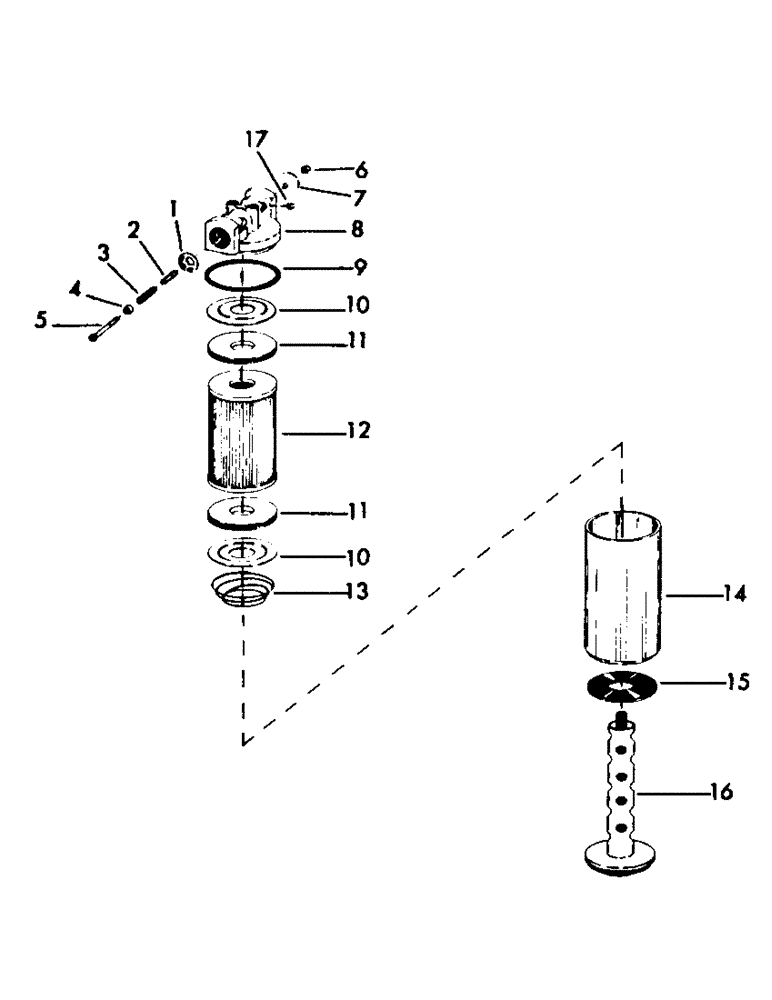

Запчасти Case 50 (H16) - HYDRAULIC OIL FILTER, 209407M1 - GRESEN #G-FA-315-NR, 209408 - GRESEN #G-FA-220-5 (35) - HYDRAULIC SYSTEMS

209407M1

FILTER, hydraulic oil - complete (Consists of Refs. 1 and 3 thru 17)

1шт.

209408

FILTER, hydraulic oil - complete (Consists of Refs. 1 thru 17)

1шт.

1

63731

PAD

GUIDE, by-pass valve

1шт.

Part of hydraulic oil filter P/N 209407M1

1шт.

Part of hydraulic oil filter P/N 209408

1шт.

2

63732

SCREW

SPACER, by-pass valve - (Used with 209408 filter only)

1шт.

Part of hydraulic oil filter P/N 209408

1шт.

3

63733

SPRING, by-pass - 15 PSI (Used with 209407M1 filter only)

1шт.

Part of hydraulic oil filter P/N 209407M1

1шт.

Part of hydraulic oil filter P/N 209408

1шт.

62431

SPRING, by-pass - 5 PSI (Used with 209408 filter only)

1шт.

Part of hydraulic oil filter P/N 209408

1шт.

4

63734

CAP, by-pass stem

1шт.

Part of hydraulic oil filter P/N 209407M1

1шт.

Part of hydraulic oil filter P/N 209408

1шт.

5

427-8136

CLEVIS PIN,1/2" x 1.360"

SCREW

1шт.

Part of hydraulic oil filter P/N 209407M1

1шт.

Part of hydraulic oil filter P/N 209408

1шт.

6

63730

SCREW

NUT

1шт.

Part of hydraulic oil filter P/N 209407M1

1шт.

Part of hydraulic oil filter P/N 209408

1шт.

7

63729

SCREW

VALVE, by-pass

1шт.

Part of hydraulic oil filter P/N 209407M1

1шт.

Part of hydraulic oil filter P/N 209408

1шт.

8

60100

HEAD - (Includes Ref. 17)

1шт.

Part of hydraulic oil filter P/N 209407M1

1шт.

Part of hydraulic oil filter P/N 209408

1шт.

9

63727

"O" RING

1шт.

Part of hydraulic oil filter P/N 209407M1

1шт.

Part of hydraulic oil filter P/N 209408

1шт.

10

63724

GUIDE

WASHER, back-up

1шт.

Part of hydraulic oil filter P/N 209407M1

1шт.

Part of hydraulic oil filter P/N 209408

1шт.

11

63725

PIN

GASKET

1шт.

Part of hydraulic oil filter P/N 209407M1

1шт.

Part of hydraulic oil filter P/N 209408

1шт.

12

S89348

FILTER, ENGINE OIL

ELEMENT, filter - 100 mesh (Used with 209407M1 filter only)

1шт.

Change in listing.

1шт.

Part of hydraulic oil filter P/N 209407M1

1шт.

Part of hydraulic oil filter P/N 209408

1шт.

62434

ELEMENT, filter - 20 micron (Used with 209408 filter only)

1шт.

Part of hydraulic oil filter P/N 209407M1

1шт.

Part of hydraulic oil filter P/N 209408

1шт.

13

63723

SPRING, conical

1шт.

Part of hydraulic oil filter P/N 209407M1

1шт.

Part of hydraulic oil filter P/N 209408

1шт.

14

63722

HOUSING, filter

1шт.

Part of hydraulic oil filter P/N 209407M1

1шт.

Part of hydraulic oil filter P/N 209408

1шт.

15

63721

GASKET

1шт.

Part of hydraulic oil filter P/N 209408

1шт.

Part of hydraulic oil filter P/N 209407M1

1шт.

16

63720

POST, center - (Cast iron)

1шт.

Part of hydraulic oil filter P/N 209407M1

1шт.

Part of hydraulic oil filter P/N 209408

1шт.

17

15163

PLUG, pipe - 3/8" NPT

1шт.

Part of hydraulic oil filter P/N 209407M1

1шт.

Part of hydraulic oil filter P/N 209408

1шт.
