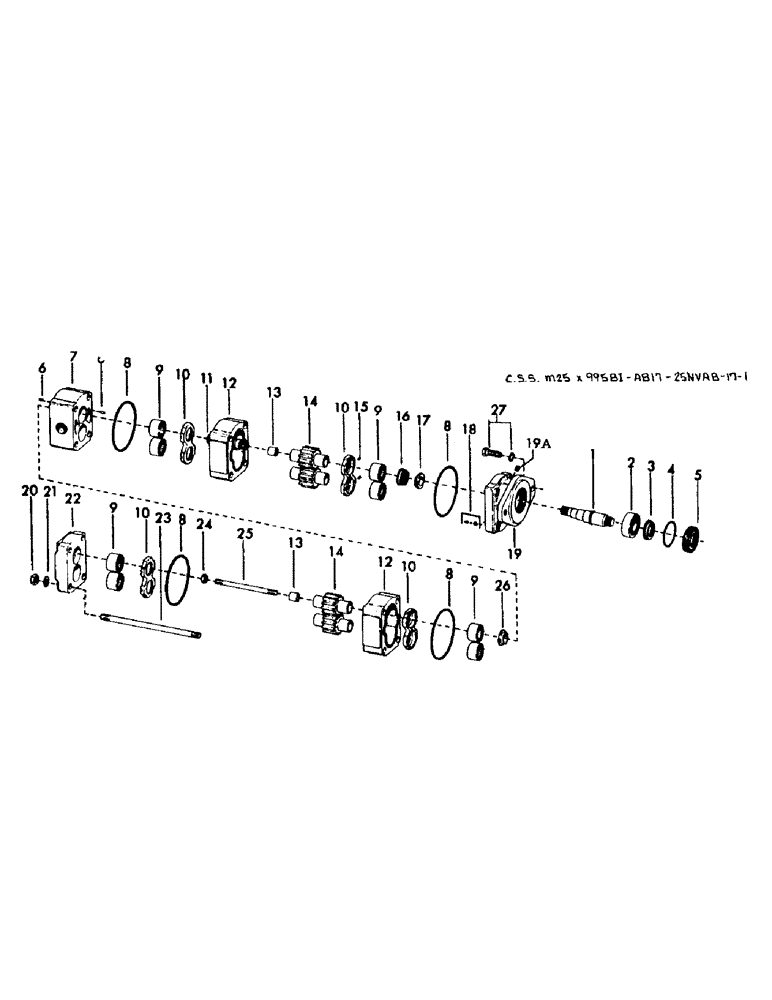

Запчасти Case 50 (H15) - SWING AND TRACK DRIVE MOTORS, (HYDRAULIC TANDEM) (35) - HYDRAULIC SYSTEMS

39993

YOKE

MOTOR, swing and track drive - complete (Consists of Refs. 1 thru 19 and 20 thru 26)

3шт.

1

64277

SHAFT

1шт.

Part of swing and track drive motor P/N 39993

1шт.

2

63513

BEARING, tapered

1шт.

Part of swing and track drive motor P/N 39993

1шт.

3

70416

BRACKET

SEAL, high pressure

1шт.

Part of swing and track drive motor P/N 39993

1шт.

4

6592

SHAFT

"O" RING - 2.234" ID x 2.500" O.D.

1шт.

Part of swing and track drive motor P/N 39993

1шт.

5

70415

RING

retainer

1шт.

Part of swing and track drive motor P/N 39993

1шт.

6

63529

PIN, roll

2шт.

Part of swing and track drive motor P/N 39993

1шт.

7

72899

CARRIER, bearing

1шт.

Part of swing and track drive motor P/N 39993

1шт.

8

83751

"O" RING - 4.109" ID x 4.375" O.D.

4шт.

Part of swing and track drive motor P/N 39993

1шт.

Change in listing.

1шт.

9

63517

BRACKET

BEARING, roller

8шт.

Part of swing and track drive motor P/N 39993

1шт.

10

63522

PLATE, thrust

4шт.

Part of swing and track drive motor P/N 39993

1шт.

11

63530

BATTERY

SHAFT, connecting

1шт.

Part of swing and track drive motor P/N 39993

1шт.

12

75508

SPARE PART

HOUSING, gear

2шт.

Part of swing and track drive motor P/N 39993

1шт.

13

76245

SPACER

2шт.

Part of swing and track drive motor P/N 39993

1шт.

14

72565

GEAR SET - 1-3/4"

2шт.

15

17682

SUPPORT

SEAL, pocket (Bulk) - 2 strips makes enough seals for tandem motor

2шт.

16

63518

RIVET

SPRING

1шт.

17

63519

RIVET

BUSHING, shaft

1шт.

18

61749

ASSEMBLY, check

2шт.

19

77722

COVER, shaft end

1шт.

19a

7879

GASKET

PLUG, socket pipe - 1/4" NPT (Used in neck of Ref. 19)

1шт.

20

4206

TOGGLE

NUT - 9/16" NC

4шт.

Part of swing and track drive motor P/N 39993

1шт.

21

495-81179

WASHER,21/32" x 1 1/4" x .179"

4шт.

Part of swing and track drive motor P/N 39993

1шт.

22

63520

COVER, port end

1шт.

Part of swing and track drive motor P/N 39993

1шт.

23

76269

STUD, connecting - external

4шт.

Part of swing and track drive motor P/N 39993

1шт.

24

63533

NUT, lock

1шт.

Part of swing and track drive motor P/N 39993

1шт.

25

76268

STUD, connecting - internal

1шт.

Part of swing and track drive motor P/N 39993

1шт.

26

63528

BUSHING, shaft

2шт.

Part of swing and track drive motor P/N 39993

1шт.

27

2467

CPSW - 1/2" x 1-1/2" NC grade 5 (Mounts track motors only)

2шт.

2466

ENGINE

CPSW - 1/2" x 1-1/4" NC grade 5 (Mounts swing motor only)

2шт.

4399

WASHER

LOCKWASHER - 1/2"

2шт.
