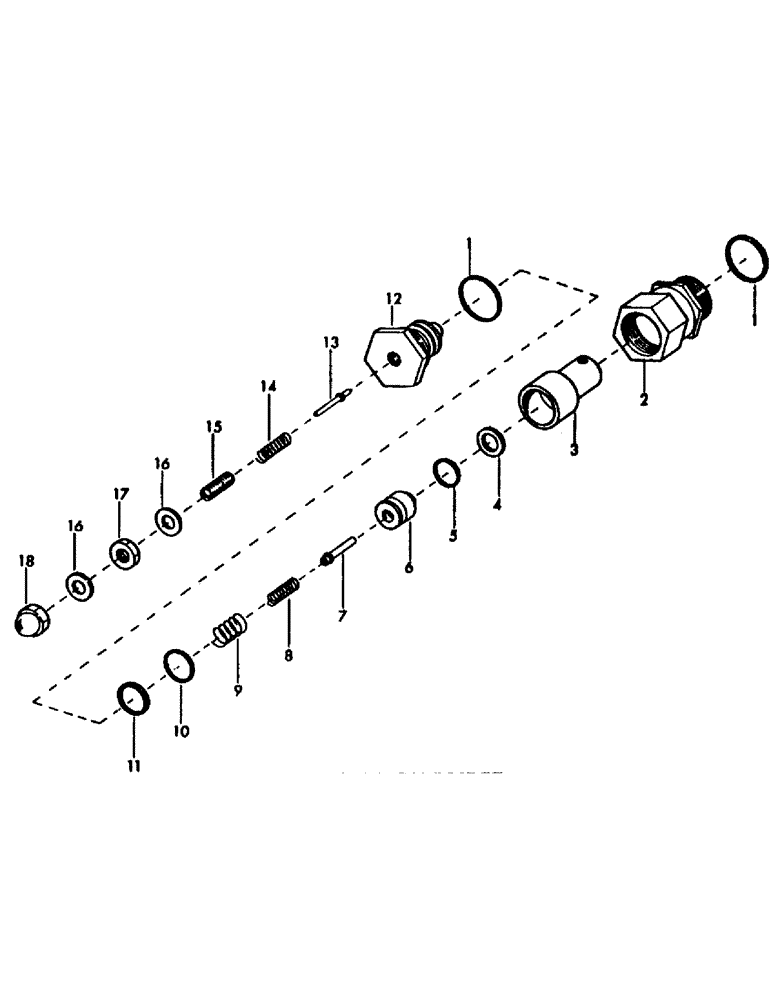

Запчасти Case 50 (H12) - RELIEF VALVE CARTRIDGE (35) - HYDRAULIC SYSTEMS

81689M1

CARTRIDGE, relief valve - set at 3000 PSI. - complete - (Consists of Refs. 1 thru 18)

1шт.

Change in listing

1шт.

81796M1

CARTRIDGE, relief valve - set at 2250 PSI. - complete - (Consists of Refs. 1 thru 18)

1шт.

Change in listing

1шт.

1

6069

O-RING

"O" RING - 1.171" ID x 1.403" O.D.

2шт.

Part of relief valve cartridge P/N's 81689M1 and 81796M1

1шт.

2

62302

CAP

1шт.

Part of relief valve cartridge P/N's 81689M1 and 81796M1

1шт.

3

62303

POPPET

1шт.

Part of relief valve cartridge P/N's 81689M1 and 81796M1

1шт.

4

84098

RING, back up

1шт.

Change in listing

1шт.

Part of relief valve cartridge P/N's 81689M1 and 81796M1

1шт.

5

6476

"O" RING - .487" ID x .687" O.D.

1шт.

Part of relief valve cartridge P/N's 81689M1 and 81796M1

1шт.

6

62366

POPPET

1шт.

Part of relief valve cartridge P/N's 81689M1 and 81796M1

1шт.

7

62324

PISTON

1шт.

Part of relief valve cartridge P/N's 81689M1 and 81796M1

1шт.

8

62326

SPRING

1шт.

Part of relief valve cartridge P/N's 81689M1 and 81796M1

1шт.

9

62368

SPRING

1шт.

Part of relief valve cartridge P/N's 81689M1 and 81796M1

1шт.

10

6574

"O" RING - .734" ID x 1.000" O.D.

1шт.

Part of relief valve cartridge P/N's 81689M1 and 81796M1

1шт.

11

62301

RING, back up

1шт.

Part of relief valve cartridge P/N's 81689M1 and 81796M1

1шт.

12

62304

PLUG

1шт.

Part of relief valve cartridge P/N's 81689M1 and 81796M1

1шт.

13

62323

POPPET

1шт.

Part of relief valve cartridge P/N's 81689M1 and 81796M1

1шт.

14

62359

SPRING

1шт.

Part of relief valve cartridge P/N's 81689M1 and 81796M1

1шт.

15

62325

SCREW, adjustment

1шт.

Part of relief valve cartridge P/N's 81689M1 and 81796M1

1шт.

16

62365

WASHER, copper

2шт.

Part of relief valve cartridge P/N's 81689M1 and 81796M1

1шт.

17

4243

SPRING COMPRESSOR

NUT, jam - 3/8" NF

1шт.

Part of relief valve cartridge P/N's 81689M1 and 81796M1

1шт.

18

62363

NUT, acorn

1шт.

Part of relief valve cartridge P/N's 81689M1 and 81796M1

1шт.
