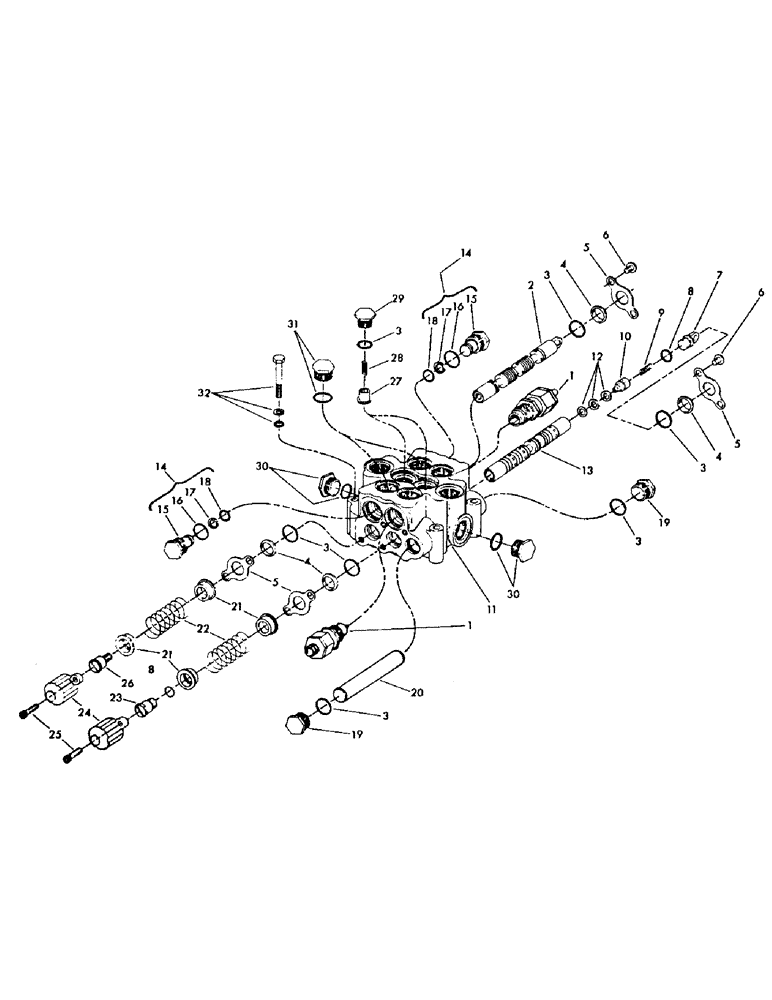

Запчасти Case 50 (H11A) - CONTROL VALVES - 2 SPOOL (35) - HYDRAULIC SYSTEMS

S502188

VALVE, control - 2 spool - (Heel boom valve only) - complete - (Consists of items 2 thru 29)

1шт.

1

CARTRIDGE, main relief valve - 3000 PSI - (For breakdown, see Figure H12)

1шт.

2

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

3

S5807

O-RING,0.984" ID x 1.262" OD x 0.139"

"O" RING - .984" ID x 1.250" OD

8шт.

4

S62092

WIPER

SEAL, wiper

4шт.

5

S13829

PLATE

seal

4шт.

6

S14499

SPECIAL BOLT

SCREW, machine - 3/8" x 1/2" NC

4шт.

7

S62289

END

plunger

1шт.

8

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

2шт.

9

S62189

SPRING

1шт.

10

S62291

VALVE POPPET

POPPET

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

12

S7886

BACK-UP RING

RING, back up

3шт.

13

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

14

S81690

PLUG

port overload - (Consists of items 15 thru 18)

2шт.

15

NSS

NOT SOLD SEPARAT

PLUG

2шт.

16

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

2шт.

17

S62373

OIL SEAL

RING, back up

2шт.

18

S5706

O-RING,0.562" ID x 0.75" OD x 0.93"

"O" RING - .549" ID x .750" OD

2шт.

19

S13707

PLUG

2шт.

20

S62276

PLUG

spacer

1шт.

21

S62288

SEAT

spring

4шт.

22

S62269

SPRING

plunger

2шт.

23

S62290

BOLT

CPSW - special

1шт.

24

S62278

CAP

plunger

2шт.

25

S3518

CAPSCREW

CPSW - socket head - 3/8" x 1" NC gr 8

4шт.

26

S62292

BOLT

CPSW - special

1шт.

27

S13716

VALVE POPPET

POPPET

2шт.

28

S13715

SPRING

2шт.

29

S13714

PLUG

2шт.

30

S62190

PLUG

- (Includes "O" ring)

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

2шт.

31

S8985

PLUG

- (1" tube) - 1-5/16" - 12 male - 37 degree flared - (Includes "O" ring)

2шт.

32

S2476

BOLT

CPSW - 1/2" x 3-3/4" NC gr 5

3шт.

S7395

WASHER

flat - 1/2"

3шт.

S4399

WASHER

LOCKWASHER - 1/2"

3шт.

280431

NUT,1/2"-13, G5

3шт.
