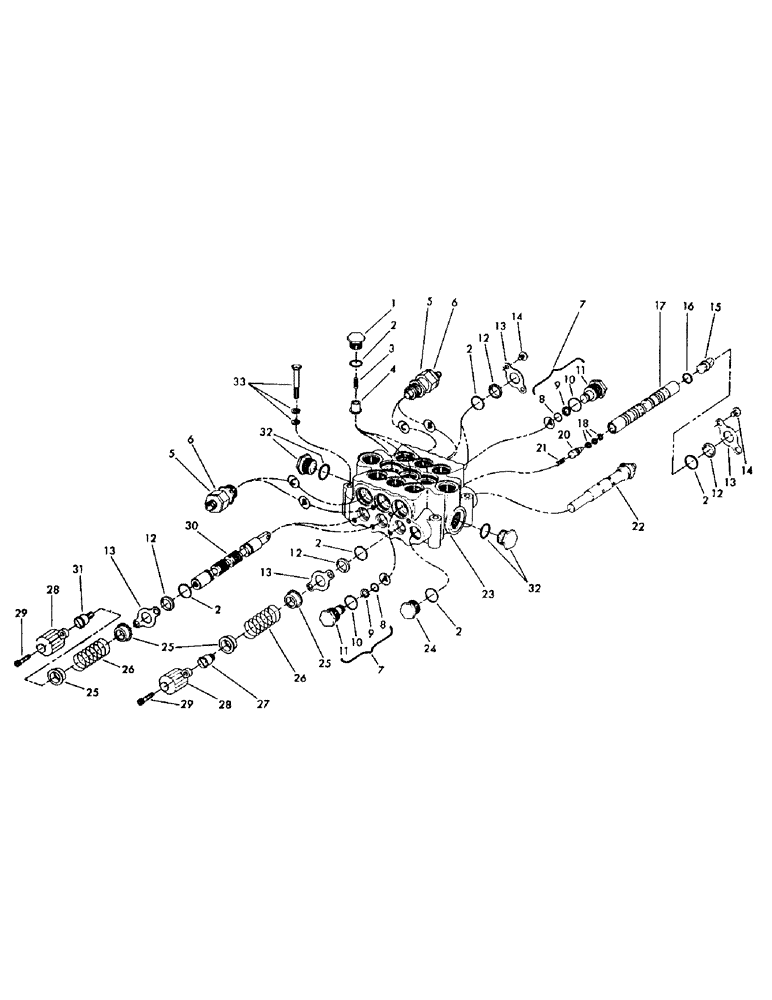

Запчасти Case 50 (H10) - CONTROL VALVES - 3 SPOOL (35) - HYDRAULIC SYSTEMS

S502186

VALVE, control - 3 spool - complete - (Consists of items 1 thru 4 and 6 thru 26)

1шт.

1

S13714

PLUG

3шт.

2

S5807

O-RING,0.984" ID x 1.262" OD x 0.139"

"O" RING - .984" ID x 1.250" O.D.

10шт.

3

S13715

SPRING

3шт.

4

S13716

VALVE POPPET

POPPET

3шт.

5

CARTRIDGE, relief valve - 2250 PSI - for ports "C" (For breakdown, see page 12)

2шт.

6

CARTRIDGE, relief valve - 3000 PSI - for ports "B" (For breakdown, see page 12)

2шт.

7

S81690

PLUG

port overload - (Consists of items 8 thru 11) - for ports "A"

2шт.

8

S5706

O-RING,0.562" ID x 0.75" OD x 0.93"

"O" RING - .549" ID x .750" O.D.

2шт.

9

S62373

OIL SEAL

RING, back up

2шт.

10

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" O.D.

2шт.

11

NSS

NOT SOLD SEPARAT

PLUG

2шт.

12

S62092

WIPER

SEAL, wiper

6шт.

13

S13829

PLATE

seal

6шт.

14

S14499

SPECIAL BOLT

SCREW, machine - 3/8" x 1/2" NC

6шт.

15

S62289

END

plunger

1шт.

16

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" O.D.

2шт.

17

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

18

S7886

BACK-UP RING

RING, back up

3шт.

20

S62291

VALVE POPPET

POPPET

1шт.

21

S62189

SPRING

1шт.

22

CARTRIDGE, relief valve - (For breakdown, see Figure H13)

1шт.

23

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

24

S13707

PLUG

1шт.

25

S62288

SEAT

spring

6шт.

26

S62269

SPRING

3шт.

27

S62290

BOLT

CPSW - special

1шт.

28

S62278

CAP

plunger

3шт.

29

S3518

CAPSCREW

CPSW, socket head - 3/8" x 1" NC grade 8

6шт.

30

NSS

NOT SOLD SEPARAT

PLUNGER

2шт.

31

S62292

BOLT

CPSW - special

2шт.

32

S62190

PLUG

- (Includes "O" ring)

2шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" O.D.

2шт.

33

S2476

BOLT

CPSW - 1/2" x 3-3/4" NC grade 5

3шт.

S7395

WASHER

flat - 1/2"

3шт.

S4399

WASHER

LOCKWASHER - 1/2"

3шт.
