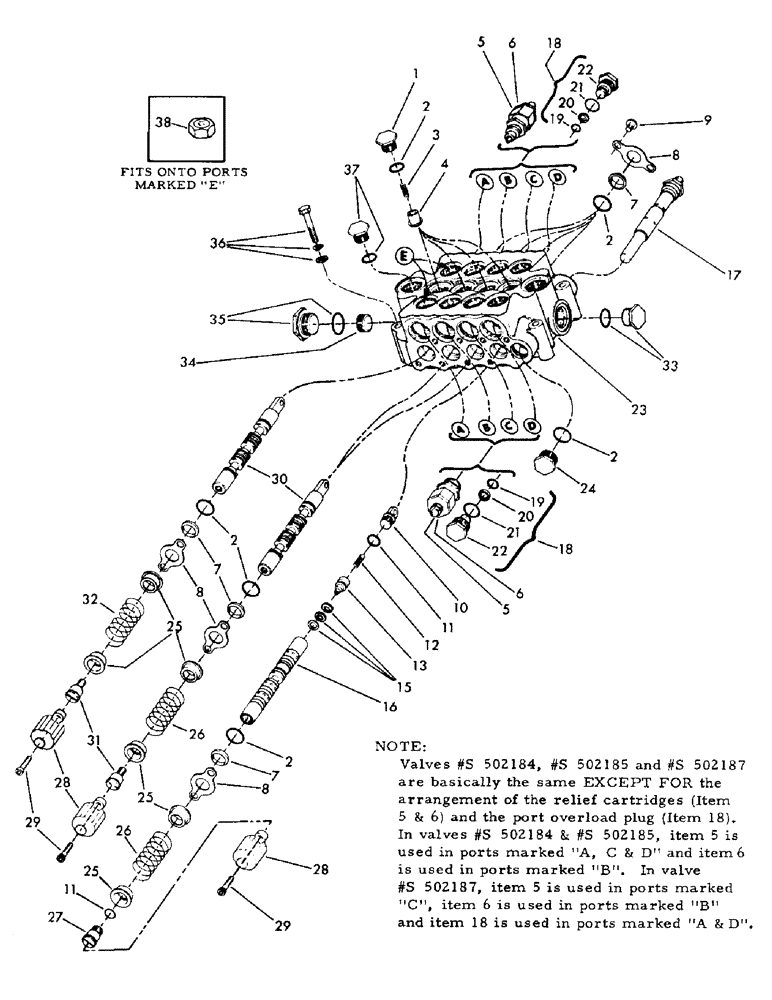

Запчасти Case 50 (H08) - CONTROL VALVES - 4 SPOOL (35) - HYDRAULIC SYSTEMS

S502184

VALVE

main control - 4 spool - complete - (Consists of items 1 thru 4, 7 thru 17 and 23 thru 32)

1шт.

S502185

VALVE, main control - 4 spool - complete - (Consists of items 1 thru 4, 7 thru 17 and 23 thru 32)

1шт.

S502187

VALVE, main control - 4 spool - complete - (Consists of items 1 thru 4, 7 thru 17 and 23 thru 32)

1шт.

1

S13714

PLUG

4шт.

2

S5807

O-RING,0.984" ID x 1.262" OD x 0.139"

"O" RING - 984" ID x 1.250" OD

13шт.

3

S13715

SPRING

4шт.

4

S13716

VALVE POPPET

POPPET

4шт.

5

CARTRIDGE, relief valve - 3000 PSI - (For breakdown, see Figure H12)

1шт.

6

CARTRIDGE, relief valve - 2250 PSI - (For breakdown, see Figure H12)

2шт.

7

S62092

WIPER

SEAL, wiper

8шт.

8

S13829

PLATE

seal

8шт.

9

S14499

SPECIAL BOLT

SCREW, machine - 3/8" x 1/2" NC

8шт.

10

S62289

END

plunger

1шт.

11

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - .644" ID x .818" OD

2шт.

12

S62189

SPRING

1шт.

13

S62291

VALVE POPPET

POPPET

1шт.

15

S7886

BACK-UP RING

RING, back up

3шт.

16

NSS

NOT SOLD SEPARAT

PLUNGER

1шт.

17

CARTRIDGE, relief valve - (For breakdown, see Figure H13)

1шт.

18

S81690

PLUG

port overload - (Consists of items 19 thru 22)

2шт.

19

S5706

O-RING,0.562" ID x 0.75" OD x 0.93"

"O" RING - .549" ID x .750" OD

2шт.

20

S62373

OIL SEAL

RING, back up

2шт.

21

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

2шт.

22

NSS

NOT SOLD SEPARAT

PLUG

2шт.

23

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

24

S13707

PLUG

1шт.

25

S62288

SEAT

spring

8шт.

26

S62269

SPRING

3шт.

27

S62290

BOLT

CPSW - special

1шт.

28

S62278

CAP

plunger

4шт.

29

S3518

CAPSCREW

CPSW, socket head - 3/8" x 1" NC gr 8

8шт.

30

NSS

NOT SOLD SEPARAT

PLUNGER

3шт.

31

S62292

BOLT

CPSW - special

3шт.

32

S81915

VALVE SPRING

SPRING - (Used only on valves #S502184 & #S502185)

1шт.

S62269

SPRING

- (Used on valve #S502187)

1шт.

33

S62190

PLUG

- (Includes "O" ring)

1шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

1шт.

34

S81691

PLUG - (Used only on valve #S502185)

1шт.

35

S62190

PLUG

- (Includes "O" ring) - used only on valve #S 502187

1шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

1шт.

36

S2476

BOLT

CPSW - 1/2" x 3-3/4" NC gr 5

3шт.

S7395

WASHER

flat - 1/2"

3шт.

S4399

WASHER

LOCKWASHER - 1/2"

3шт.

37

S62190

PLUG

- (Includes "O" ring) - used only on valve #S502184

1шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

1шт.

38

S9417

CAP

- (3/4" tube) - 1-1/16" - 12 female x 37 degree flared - (Fits onto #S7269 connector at valve ports marked "E" when auxiliary is not used)

2шт.
