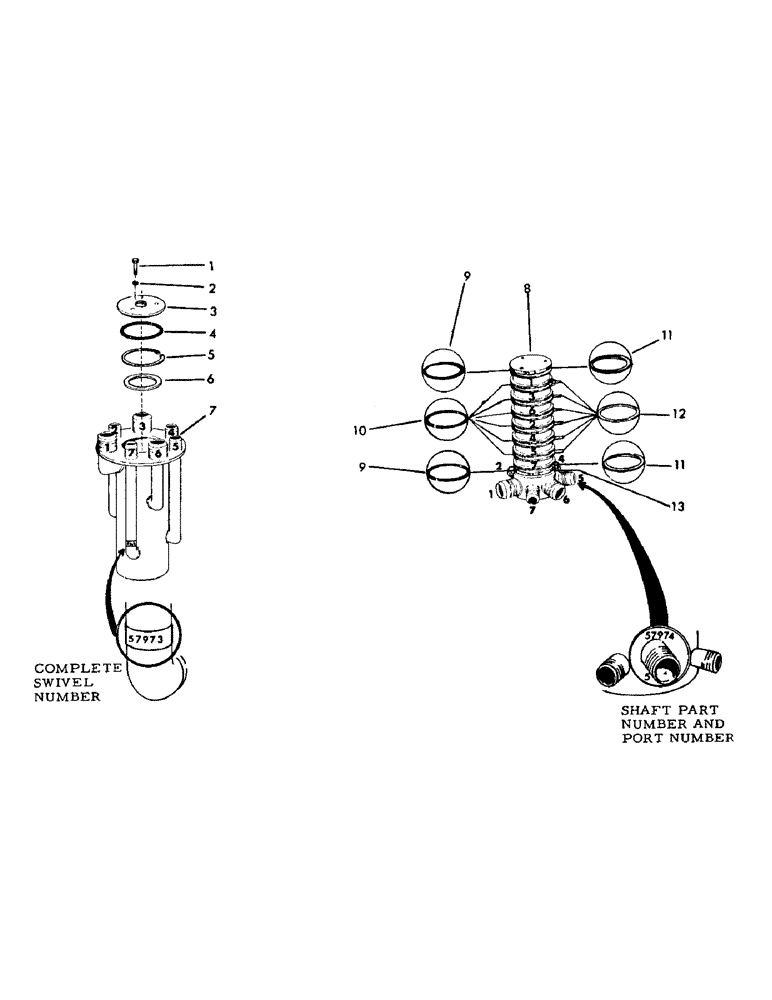

Запчасти Case 50 (H05) - SEVEN PORT HYDRAULIC SWIVEL (35) - HYDRAULIC SYSTEMS

57973

SWIVEL, hydraulic - complete (Consists of items 1 thru 13)

1шт.

1

2402

LAMP

CPSW - 3/8" x 1-1/4" NC gr 5

3шт.

2

4397

LOCKWASHER - 3/8"

3шт.

3

203821M1

CAP, bearing

1шт.

4

76241

"O" RING - (Bearing cap)

1шт.

5

15194

RING, retaining

1шт.

6

203832M1

WASHER, bearing

1шт.

7

57975

HOUSING - (Chrome plated inside)

1шт.

8

57974

SHAFT

1шт.

9

80704

"O" RING

2шт.

10

6332

O-RING

"O" RING - 3.984" ID x 4.250" OD

6шт.

11

80705

SEAL, slipper

2шт.

12

76928

INSULATOR

RING, back up

12шт.

13

76240

"O" RING

1шт.

14

210212

KIT, seal - (Consists of items 4, 9, 10, 11, 13 and 10 of item 12)

1шт.
