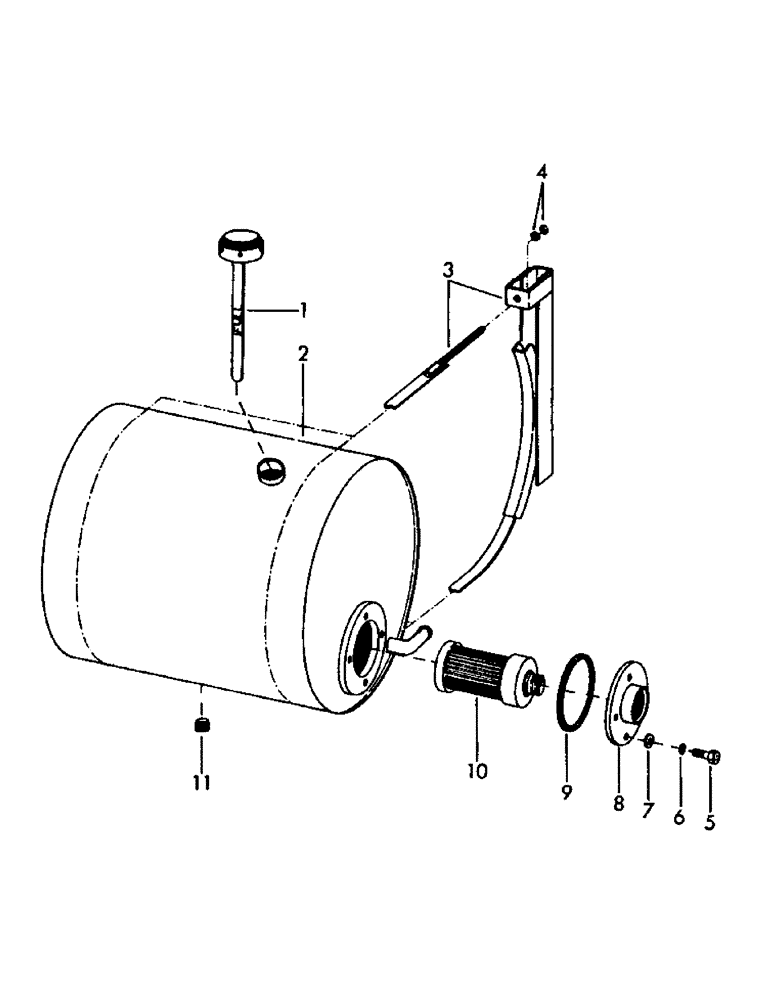

Запчасти Case 50 (H03) - HYDRAULIC OIL RESERVOIR (35) - HYDRAULIC SYSTEMS

502097

RESERVOIR, hydraulic oil - complete (Consists of Refs. 1, 2 and 5 thru 11)

1шт.

1

208164

BREATHER AND DIPPERSTICK ASSEMBLY

1шт.

Part of hydraulic oil reservoir P/N 502097

1шт.

2

502098

RESERVOIR - tank assembly

1шт.

Part of hydraulic oil reservoir P/N 502097

1шт.

3

207826

BRACKET, hydraulic oil reservoir mounting - (Set of 2) (Includes Ref. 4)

1шт.

2502

RUBBER WASHER

CPSW - 5/8" x 1-1/2" NC grade 5 (Bracket mounting)

4шт.

4226

- 5/8" NC

4шт.

4

4226

- 5/8" NC (Tightens bracket around reservoir)

2шт.

7403

WASHER, flat - 5/8"

2шт.

5

16475

PLATE

CPSW - 5/16" x 1" NC grade 5

4шт.

Part of hydraulic oil reservoir P/N 502097

1шт.

6

4396

LOCKWASHER - 5/16"

4шт.

Part of hydraulic oil reservoir P/N 502097

1шт.

7

103366

KEY

WASHER, seal

4шт.

Part of hydraulic oil reservoir P/N 502097

1шт.

8

200926

FLANGE, filter mounting

1шт.

Part of hydraulic oil reservoir P/N 502097

1шт.

9

6334

HYDRAULIC HOSE,19.05mm ID x 485mm L, SAE 100R17

"O" RING - 4.234" ID x 4.500" O.D.

1шт.

Part of hydraulic oil reservoir P/N 502097

1шт.

10

26293

SCREEN, hydraulic oil - (Marvel #M-2075)

1шт.

Part of hydraulic oil reservoir P/N 502097

1шт.

11

15165

CLAMP

PLUG, pipe - 3/4" NPT

1шт.

Part of hydraulic oil reservoir P/N 502097

1шт.
