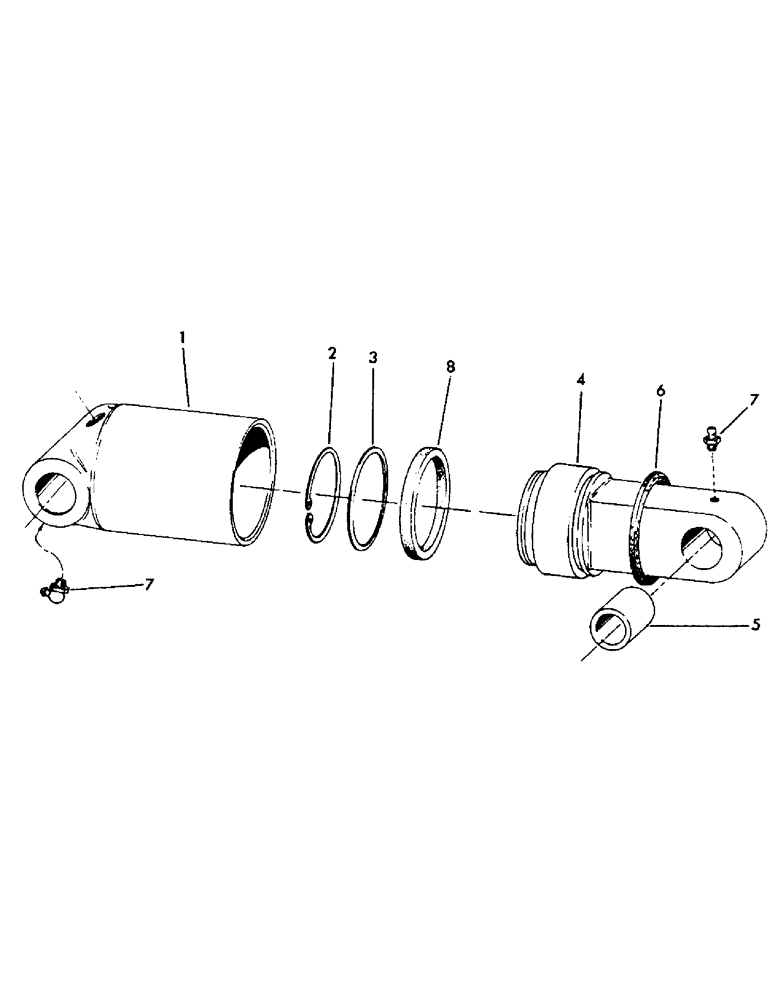

Запчасти Case 50 (H02A) - LEVELER CYLINDER, (5.25" ID X 5.97" STROKE) (35) - HYDRAULIC SYSTEMS

S59819

CYLINDER

leveler - complete (Consists of Refs. 1 thru 8)

4шт.

1

S213924

TUBE, cylinder 1.25" OD x 13.92, 7.55" L

1шт.

Part of cylinder P/N S59819

1шт.

2

S85699

SNAP RING,#425, Ext

Ring, Snap, #425, Ext

1шт.

Part of cylinder P/N S59819

1шт.

3

S85707

WASHER

retaining

1шт.

Part of cylinder P/N S59819

1шт.

4

S503496

PISTON

AND ROD - (Includes Ref. 5)

1шт.

Part of cylinder P/N S59819

1шт.

5

S85716

BUSHING

1шт.

Part of cylinder P/N S59819

1шт.

6

S85705

SEAL

wiper

1шт.

Part of cylinder P/N S59819

1шт.

7

S49270

FITTING

grease, 90 degrees - 1/8" NPT

2шт.

Change in listing

1шт.

Part of cylinder P/N S59819

1шт.

8

S85706

SEAL

piston

1шт.

Part of cylinder P/N S59819

1шт.
