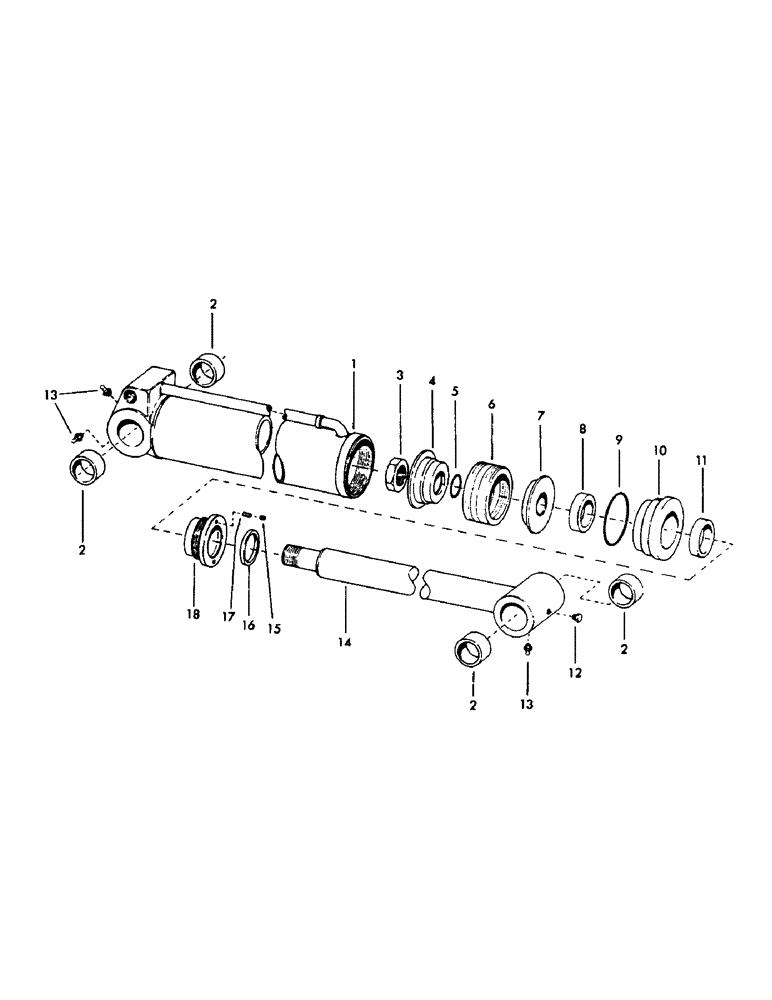

Запчасти Case 50 (H02) - TOOL CYLINDER, (6.25" ID X 33.60 STROKE) (35) - HYDRAULIC SYSTEMS

S502986M2

CYLINDER, tool - complete - (Consists of Refs. 1 thru 18)

1шт.

Change in listing

1шт.

1

S212724

TUBE, cylinder - (Includes 2 of Ref. 2)

1шт.

Change in listing

1шт.

Part of tool cylinder P/N S212724

1шт.

2

S202137

BUSHING,50.73mm ID x 63.63mm OD x 63.5mm L

4шт.

3

S80914

NUT

self locking

1шт.

Change in listing

1шт.

4

S206994

PISTON, cylinder

1шт.

5

S5920

RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro

"O" RING - 1.725" ID x 2.125" O.D.

1шт.

6

S206993M1

V-RING CUP ASSEMBLY

1шт.

Change in listing

1шт.

7

S206995

PISTON, half

1шт.

8

S84134

SPACER

1шт.

9

S6028

O-RING,5.725" ID x 6.275" OD x 0.275"

"O" RING - 5.750" ID x 6.250" O.D.

1шт.

10

S28257M2

GLAND

HEAD, cylinder

1шт.

11

S25184M2

V-RING CUP ASSEMBLY

1шт.

Change in listing

1шт.

12

S7872

PLUG

pipe - 1/8" NPT

1шт.

13

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT (Straight)

3шт.

14

S212726M1

ROD, piston - (Includes 2 of Ref. 2)

1шт.

Change in listing

1шт.

15

S12277

SET SCREW

SCREW, set - #10 x 1/4" NF - oval point - (For lock to Ref. 17)

2шт.

16

S43987

RING

SEAL, wiper

1шт.

17

S13889

SET SCREW

SCREW, set - #10 x 5/8" NF - cup point (Packing gland to cylinder head)

2шт.

18

S28247

GLAND

FLANGE, packing

1шт.
