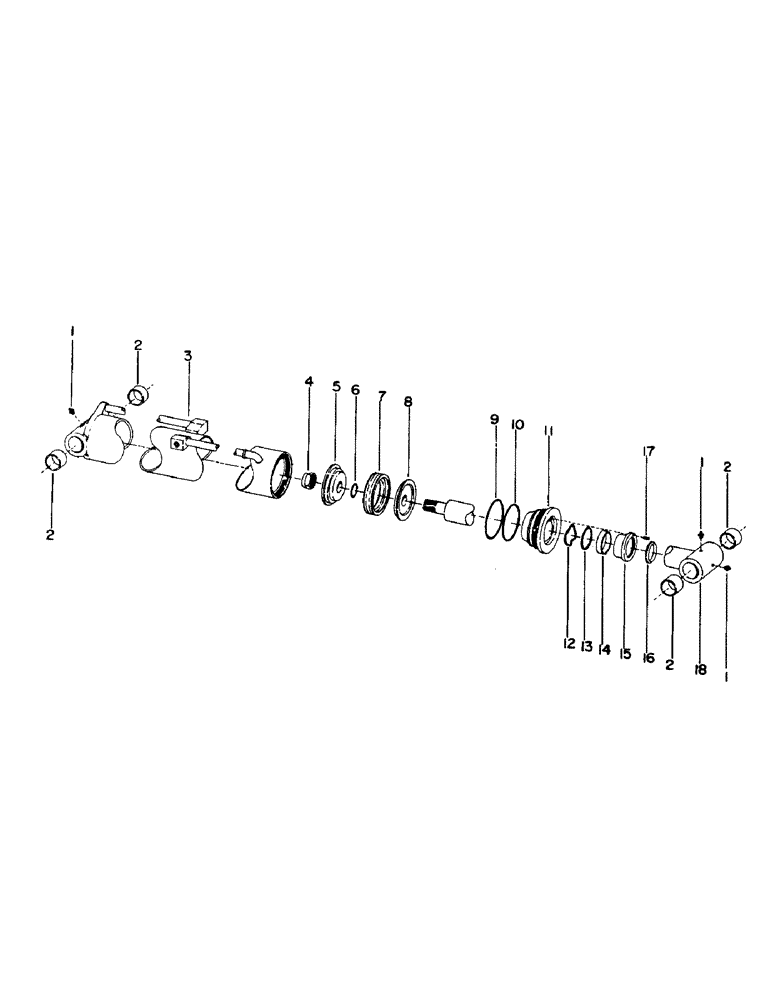

Запчасти Case 50 (H01) - CROWD AND HOIST CYLINDERS, (7.00" ID X 45.50" STROKE) (35) - HYDRAULIC SYSTEMS

S58750M1

CYLINDER, hoist and crowd - complete (Consists of Refs. 1 thru 18)

2шт.

Change in listing

1шт.

1

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT (Straight)

3шт.

Part of hoist and crowd cylinder P/N S58750M1

1шт.

2

S202163

BUSHING

4шт.

Part of hoist and crowd cylinder P/N S58750M1

1шт.

3

S502602

TUBE ASSEMBLY - (Includes 2 of Ref. 2)

1шт.

Part of hoist and crowd cylinder P/N S58750M1

1шт.

4

S83249

NUT

self locking - 2" NF

1шт.

Part of hoist and crowd cylinder P/N S58750M1

1шт.

5

S502609

PISTON

1шт.

Part of hoist and crowd cylinder P/N S58750M1

1шт.

6

S5922

O-RING,1.975" ID x 2.395" OD x 0.21"

"O" RING - 1.975" ID x 2.375" O.D.

1шт.

Part of hoist and crowd cylinder P/N S58750M1

1шт.

7

S212080M1

"V" RING CUP ASSEMBLY

1шт.

Change in listing

1шт.

Part of hoist and crowd cylinder P/N S58750M1

1шт.

8

S502611

PISTON

1шт.

Part of hoist and crowd cylinder P/N S58750M1

1шт.

9

S6032

O-RING

"O" RING - 6.475" ID x 7" O.D.

1шт.

Part of hoist and crowd cylinder P/N S58750M1

1шт.

10

S83254

RING

back up

1шт.

Part of hoist and crowd cylinder P/N S58750M1

1шт.

11

S502607

HEAD

cylinder

1шт.

Part of hoist and crowd cylinder P/N S58750M1

1шт.

12

S83252

WASHER

wave spring

1шт.

Part of hoist and crowd cylinder P/N S58750M1

1шт.

13

S83253

WASHER

flat

1шт.

Part of hoist and crowd cylinder P/N S58750M1

1шт.

14

S212081M1

"V" RING CUP ASSEMBLY

1шт.

Change in listing

1шт.

Part of hoist and crowd cylinder P/N S58750M1

1шт.

15

S212083

FLANGE

packing

1шт.

Part of hoist and crowd cylinder P/N S58750M1

1шт.

16

S43987

RING

SEAL, wiper

1шт.

Part of hoist and crowd cylinder P/N S58750M1

1шт.

17

S14308

SET SCREW

SCREW, set - 1/4" NC x 3/4" - cone point

1шт.

Part of hoist and crowd cylinder P/N S58750M1

1шт.

18

S502605

ROD, piston - (Includes 2 of Ref. 2)

1шт.

Part of hoist and crowd cylinder P/N S58750M1

1шт.
