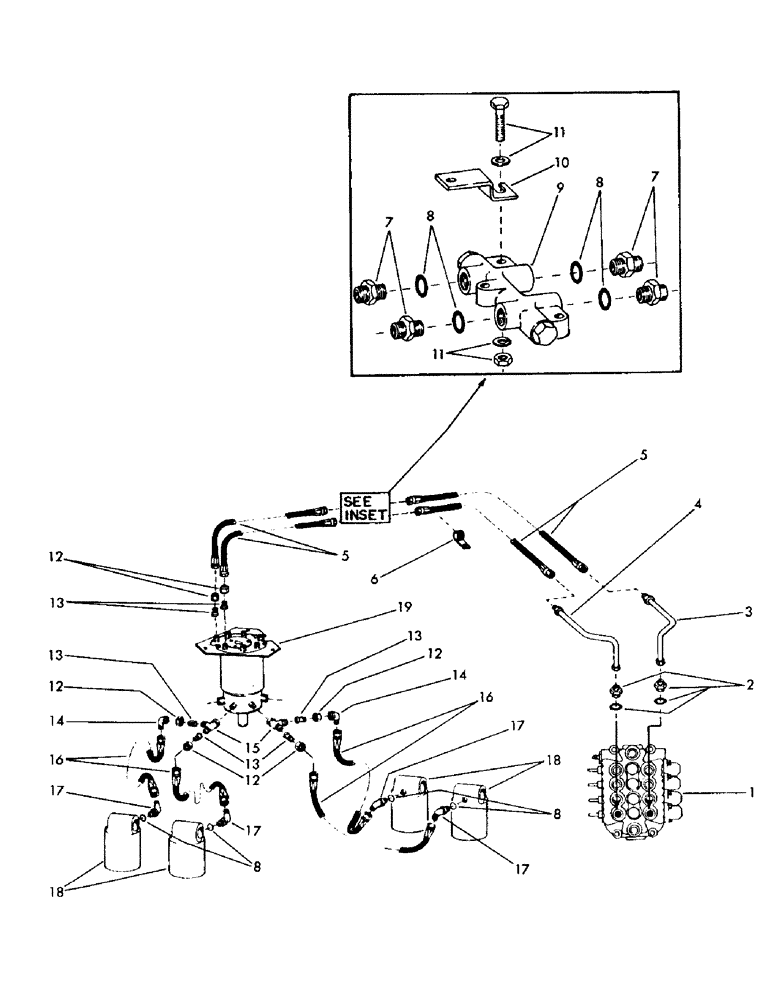

Запчасти Case 50 (E12) - LEVELER HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

VALVE, main - (For breakdown, see section "H")

1шт.

2

S7985

CONNECTOR, ELEC

CONNECTOR, flared - (5/8" tube) - 1-5/16" - 12 male x 7/8" - 14 male (37 degree flared) - includes "O" ring

4шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" O.D.

4шт.

3

S502090

LINE, hydraulic

1шт.

4

S502089

LINE, hydraulic

1шт.

5

S11230

HOSE

high pressure - 3/8" ID x 28" long - (With 3/4" - 16 female pressed on couplings)

4шт.

6

S77324

CLAMP

hose

2шт.

7

S7963

FITTING

CONNECTOR -(1/2" tube) - 3/4" - 16 male x 3/4" - 16 male - (37 degree flared) - (Includes "O" ring - Ref. 8)

4шт.

8

S6061

O-RING,0.639" ID x 0.09" Width

"O" RING - 644" ID x .818" O.D.

8шт.

9

VALVE, check - (For breakdown, see section "H")

1шт.

10

S69624

BRACKET, valve mounting

2шт.

11

S2381

BOLT

CPSW - 5/16" x 2-1/4" NC grade 5

2шт.

S7393

WASHER

flat - 5/16"

2шт.

S4396

WASHER, LOCK

LOCKWASHER - 5/16"

2шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" NC

2шт.

12

S6277

NUT

- 3/4" tube - 1-1/16" - 12 thread

6шт.

13

S101833

ADAPTER

reducing - 3/4" x 1/2" tube - 3/4" - 16 male 37 degree flared

6шт.

14

S10357

ELBOW

- 90 degree swivel - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female - 37 degree flared

2шт.

15

S60461

TEE

- (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female x 3/4" - 16 male - 37 degree flared

2шт.

16

S11230

HOSE

high pressure - 3/8" ID x 28" long - (With 3/4" - 16 female pressed on couplings)

4шт.

17

S7939

ELBOW

90 degree adjustable - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male - 37 degree flared - (Includes "O" ring - Ref. 8)

4шт.

18

CYLINDER, leveler - (For breakdown, see section "H")

4шт.

19

SWIVEL, hydraulic, (For breakdown, see section "H")

1шт.
