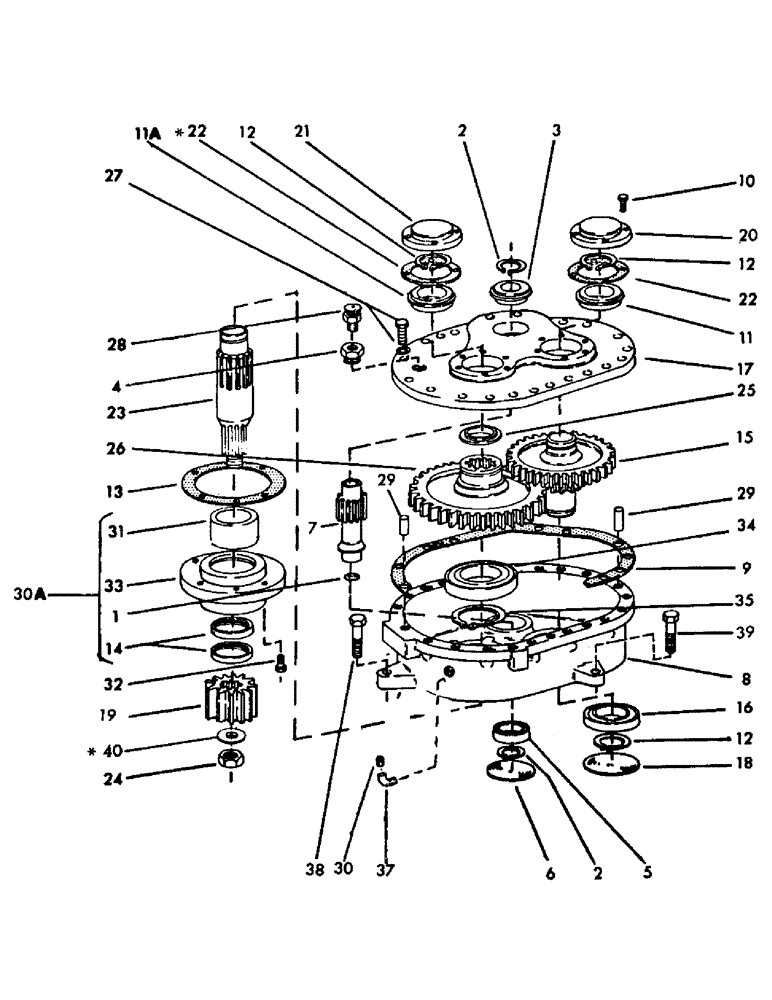

Запчасти Case 50 (D13) - SWING REDUCER, RATIO 24.20:1 (35) - HYDRAULIC SYSTEMS

S952295

REDUCER

gear - complete (Consists of Refs. 1 thru 37)

1шт.

1

S81286

PLUG

expansion

1шт.

Part of gear reducer P/N S952295

1шт.

2

S62725

RING

retaining

2шт.

Part of gear reducer P/N S952295

1шт.

3

S64312

BALL BEARING,35 mm ID x 62 mm OD x 14 mm

BEARING, ball

1шт.

Part of gear reducer P/N S952295

1шт.

4

S7780

BUSHING

REDUCER, pipe plug

1шт.

Part of gear reducer P/N S952295

1шт.

5

S64313

BALL BEARING,35 mm ID x 72 mm OD x 17 mm

BEARING, ball

1шт.

Part of gear reducer P/N S952295

1шт.

6

S64328

PLUG

expansion

1шт.

Part of gear reducer P/N S952295

1шт.

7

S37176

PINION

AND SHAFT, input

1шт.

Part of gear reducer P/N S952295

1шт.

8

S55373M3

CASE, gear

1шт.

Part of gear reducer P/N S952295

1шт.

9

S33483M1

GASKET, cover

1шт.

Part of gear reducer P/N S952295

1шт.

10

S16475

CAPSCREW

CPSW - 5/16" NC x 1" grade 5

12шт.

Part of gear reducer P/N S952295

1шт.

11

S64314

BALL BEARING,40 mm ID x 80 mm OD x 18 mm

BEARING, ball

1шт.

Part of gear reducer P/N S952295

1шт.

11a

S85843

BALL BEARING,40 mm ID x 90 mm OD x 23 mm

BEARING, ball

1шт.

Part of gear reducer P/N S952295

1шт.

12

S62721

RING, SNAP

RING, retaining (Truarc #5100-156)

3шт.

Part of gear reducer P/N S952295

1шт.

13

S202561

GASKET

mounting flange

1шт.

Part of gear reducer P/N S952295

1шт.

14

S206136

OIL SEAL

oil

1шт.

Part of housing P/N S59406

1шт.

Part of gear reducer P/N S952295

1шт.

15

S55114

GEAR

cluster

1шт.

Part of gear reducer P/N S952295

1шт.

16

S64316

BEARING, BALL,40 mm ID x 90 mm OD x 23 mm

1шт.

Part of gear reducer P/N S952295

1шт.

17

S503551

COVER

gear case

1шт.

Part of gear reducer P/N S952295

1шт.

18

S64317

PLUG

expansion

1шт.

Part of gear reducer P/N S952295

1шт.

19

S502648

PINION

output - 10 tooth

1шт.

Part of gear reducer P/N S952295

1шт.

20

S402194M1

CAP

bearing

1шт.

Part of gear reducer P/N S952295

1шт.

21

S214012M1

X

CAP, bearing

1шт.

Part of gear reducer P/N S952295

1шт.

22

S103261

GASKET

bearing cup

2шт.

Change in listing.

1шт.

Part of gear reducer P/N S952295

1шт.

23

S503552

SHAFT

output

1шт.

Part of gear reducer P/N S952295

1шт.

24

S64448

NUT

self locking

1шт.

Part of gear reducer P/N S952295

1шт.

25

S214014

SPACER

, Serial Range: bearing-gear

1шт.

Part of gear reducer P/N S952295

1шт.

26

S55116

GEAR

drive

1шт.

Part of gear reducer P/N S952295

1шт.

27

S73499

BOLT

CPSW - 3/8" NC x 1-1/4" grade 5

23шт.

Part of gear reducer P/N S952295

1шт.

28

S17478

VENT

breather

1шт.

Part of gear reducer P/N S952295

1шт.

29

S64319

CALIPER

DOWEL - 3/8" diameter

2шт.

Part of gear reducer P/N S952295

1шт.

30

S7873

PLUG

- 3/8" NPT square socket

4шт.

Part of gear reducer P/N S952295

1шт.

30a

S59406

HOUSING

- (Includes Refs. 14, 31 and 33)

1шт.

Part of gear reducer P/N S952295

1шт.

31

S72921M1

BUSHING

1шт.

Part of housing P/N S59406

1шт.

Part of gear reducer P/N S952295

1шт.

32

S16906

BOLT

CPSW, self locking, 1/2" NC x 1-3/4" grade 5

6шт.

Part of gear reducer P/N S952295

1шт.

33

S55134

SUPPORT

reducer

1шт.

Part of housing P/N S59406

1шт.

Part of gear reducer P/N S952295

1шт.

34

S64321

BALL BEARING,70mm ID x 110mm OD x 20mm W

BEARING, ball

1шт.

Change in listing.

1шт.

Part of gear reducer P/N S952295

1шт.

35

S15409

OIL SEAL

RING, retainer

1шт.

Part of gear reducer P/N S952295

1шт.

36

S83676

SPACER

bottom

1шт.

Part of gear reducer P/N S952295

1шт.

37

S17525

ELBOW

90 degrees - 3/8" NPT male x 3/8" NPT female

4шт.

Part of gear reducer P/N S952295

1шт.

38

S2581

SCREW

CPSW - 7/8" NC x 2" grade 5 (Reducer mounting)

1шт.

39

S2596

BOLT

CPSW - 7/8" NC x 5-1/2" grade 5 (Reducer mounting)

2шт.

40

S72920

SPACER, bottom

1шт.

Added listing.

1шт.
