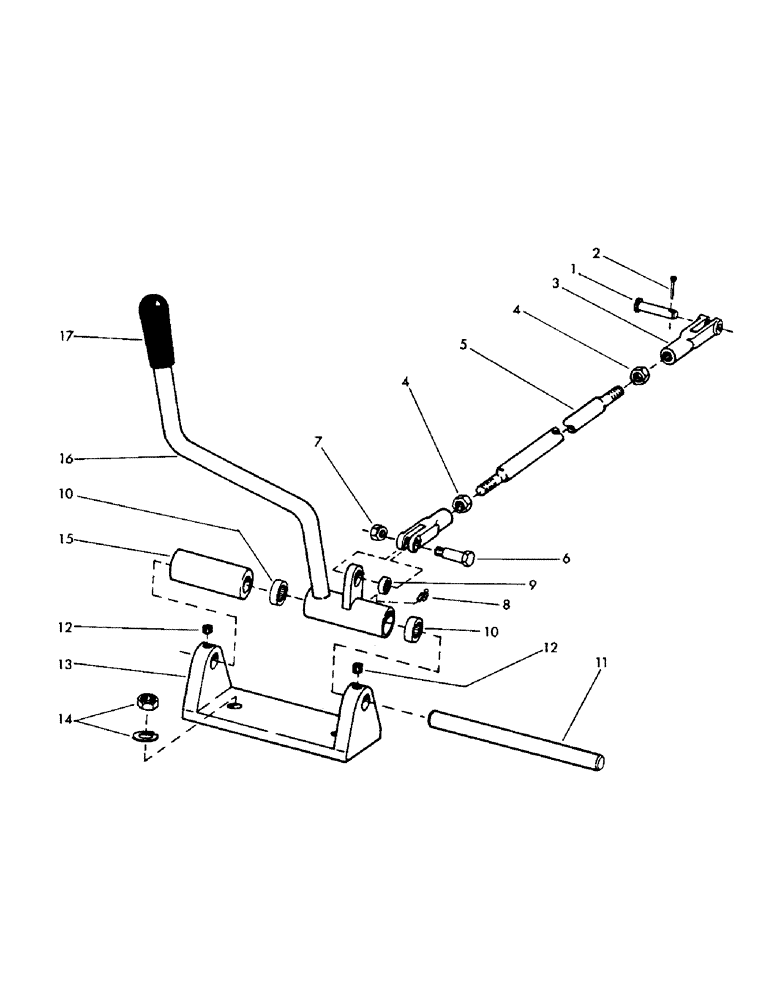

Запчасти Case 50 (E11) - LEVELER HANDLE AND LINKAGE (33) - BRAKES & CONTROLS

1

S10768

PIN

clevis - 3/8" x 1.016" grip length

1шт.

2

S4640

PIN, cotter - 5/32" x 3/4" long

1шт.

3

S12514

YOKE

2шт.

4

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" NF

2шт.

5

S81815

ROD, control

1шт.

6

S40816

BOLT, shoulder - 3/8" NF

1шт.

7

231-2446

NUT,3/8"-24, GB

NUT, self locking - 3/8" NF

1шт.

8

S49793

FITTING

grease - 1/8" NPT x 65 degrees

1шт.

9

S40815

BEARING, NEEDLE,0.375" ID x 0.5630" OD x 0.312"

1шт.

10

S63168

NEEDLE BEARING,0.625" ID x 0.8125" OD x 0.5"

BEARING, needle

2шт.

11

S81814

SHAFT

1шт.

12

S14045

SET SCREW

SCREW, set - 5/16" x 5/16" long

2шт.

13

S211205

SUPPORT, lever

1шт.

14

S17167

INSTRUCTION

NUT, self locking - 3/8" NF

2шт.

S7389

WASHER

flat - 7/16"

2шт.

15

S81813

SPACER

1шт.

16

S502070

HANDLE, leveler control

1шт.

17

S63411

HANDLE

GRIP, handle

1шт.
