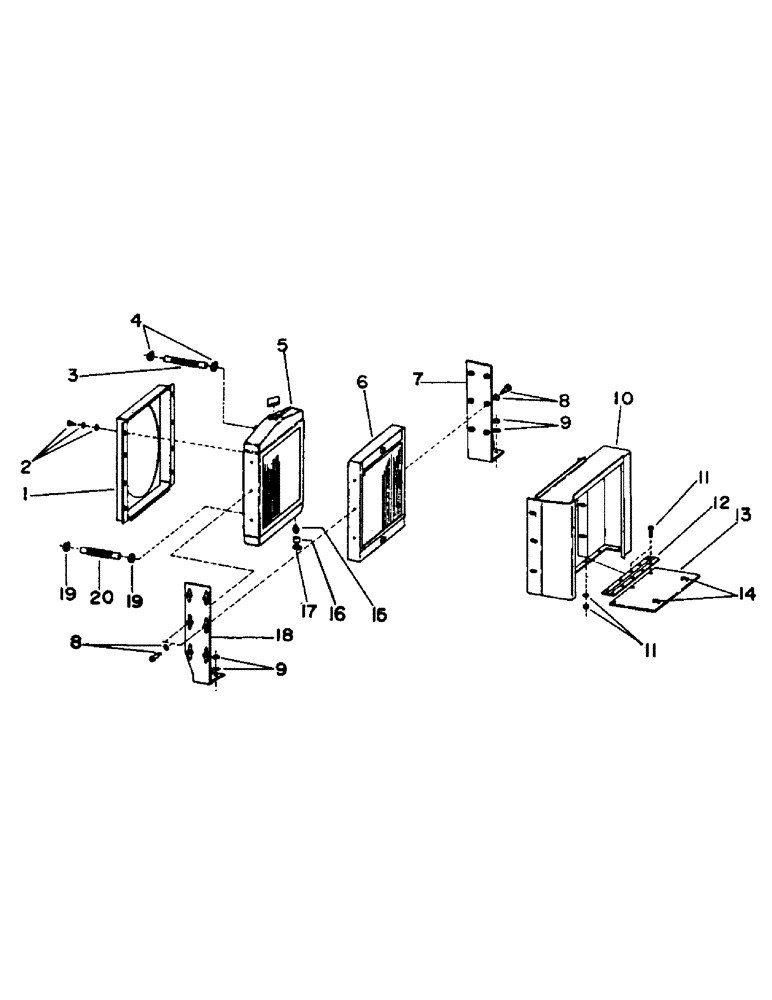

Запчасти Case 50 (C05) - RADIATOR, OIL COOLER AND MOUNTING PARTS (10) - ENGINE

1

S58487

SHROUD, fan

1шт.

2

S14458

SCREW, machine - 1/4" NC x 5/16"

8шт.

S7377

WASHER

flat - 1/4"

8шт.

S7342

WASHER, LOCK

LOCKWASHER, internal tooth - 1/4"

8шт.

3

S82340

HOSE, radiator - upper

2шт.

4

S10875

HOSE CLAMP

CLAMP, hose - (Fits hoses 1-1/4" ID x 1-3/4" ID)

4шт.

5

S57280

RADIATOR

1шт.

6

S57281

COOLER

oil

1шт.

7

S502299

BRACKET, radiator mounting - left hand

1шт.

8

S76819

STEP BOLT

BOLT, shoulder - 5/16" NC x 1-3/8"

12шт.

S7344

WASHER, LOCK

LOCKWASHER, internal tooth - 3/8"

13шт.

9

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

8шт.

S7387

WASHER

flat - 3/8"

8шт.

10

S502293

DUCT, air

1шт.

11

S2400

MUFFLER

CPSW - 3/8" NC x 3/4" gr 5

6шт.

S4397

WASHER

LOCKWASHER - 3/8"

6шт.

S4222

NUT

- 3/8" NC

6шт.

12

S208804

HINGE

1шт.

13

S82226

DOOR

1шт.

14

S76864

HANDLE

2шт.

S70878

WASHER, LOCK

LOCKWASHER, external tooth - 5/16"

4шт.

S7348

WASHER, LOCK

LOCKWASHER, internal tooth - 5/8"

2шт.

15

S62655

NIPPLE, LUBE

NIPPLE

1шт.

16

S17706

COUPLING

1шт.

17

S49610

VALVE

DRAIN, pet-cock

1шт.

18

S502298

BRACKET, radiator mounting - right hand

1шт.

19

S10878

HOSE CLAMP

CLAMP, hose - (Fits hoses 1-3/4" ID - 2-1/4" ID)

2шт.

20

S63624

HOSE

radiator - lower

1шт.
