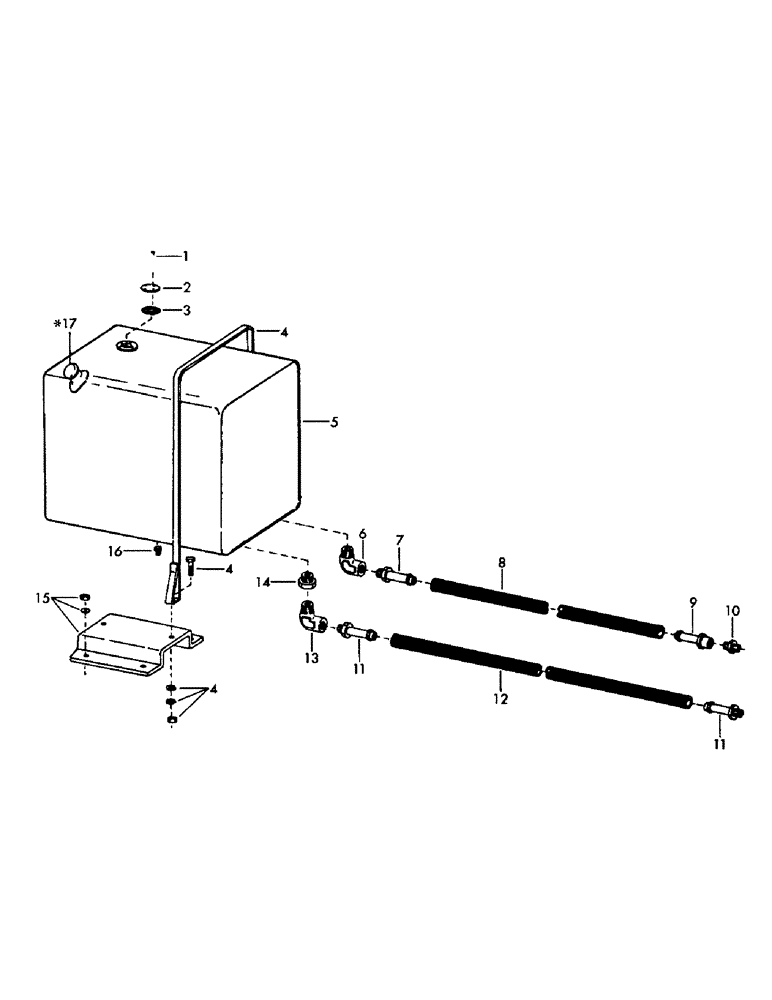

Запчасти Case 50 (C04) - FUEL TANK AND LINES (10) - ENGINE

1

14530

HARNESS

SCREW, machine - #10 x 3/4" NF

5шт.

2

63590

COVER, gauge hole

1шт.

3

49745

CONNECTING LINK

GASKET, gauge hole cover

1шт.

4

81133

STRAP, fuel tank mounting

2шт.

2404

LAMP

CPSW - 3/8" x 1-1/4" NC grade 5

4шт.

7385

WASHER, flat - 3/8"

4шт.

4397

LOCKWASHER - 3/8"

4шт.

4222

NUT - 3/8" NC

4шт.

5

502212M1

TANK, fuel - (Includes Ref. 17)

1шт.

Change in listing.

1шт.

6

83167

ELBOW, 90 degrees

1шт.

7

83165

END, hose

1шт.

8

70628

HOSE

low pressure - (Bulk) - 1/2" ID x 65" long - (Inlet)

1шт.

9

83166

PLATE

END, hose

1шт.

10

60833

ADAPTER, straight - (1/2" tube) - 3/4" - 16 thread - 37 degree flare x 3/8" NPT

1шт.

11

63652

END, hose

2шт.

12

63654

HOSE, low pressure - (Bulk) 1/2" ID x 70" long - (Return)

1шт.

13

63648

WEDGE,1.25" ID x 5" OD x 2.38"

ELBOW, 90 degrees - 1/4" NPT male x 1/4" NPT female

1шт.

14

17551

BUSHING, reducing - 3/8" NPT x 1/4" NPT

1шт.

15

211621

SUPPORT, fuel tank mounting

2шт.

7385

WASHER, flat - 3/8"

8шт.

17167

LOCK NUT

NUT, self locking - 3/8" NC

8шт.

16

15162

PLUG, pipe - 1/4" NPT

1шт.

17

S64019

FILLER CAP

CAP, fuel tank

1шт.

Added listing.

1шт.
