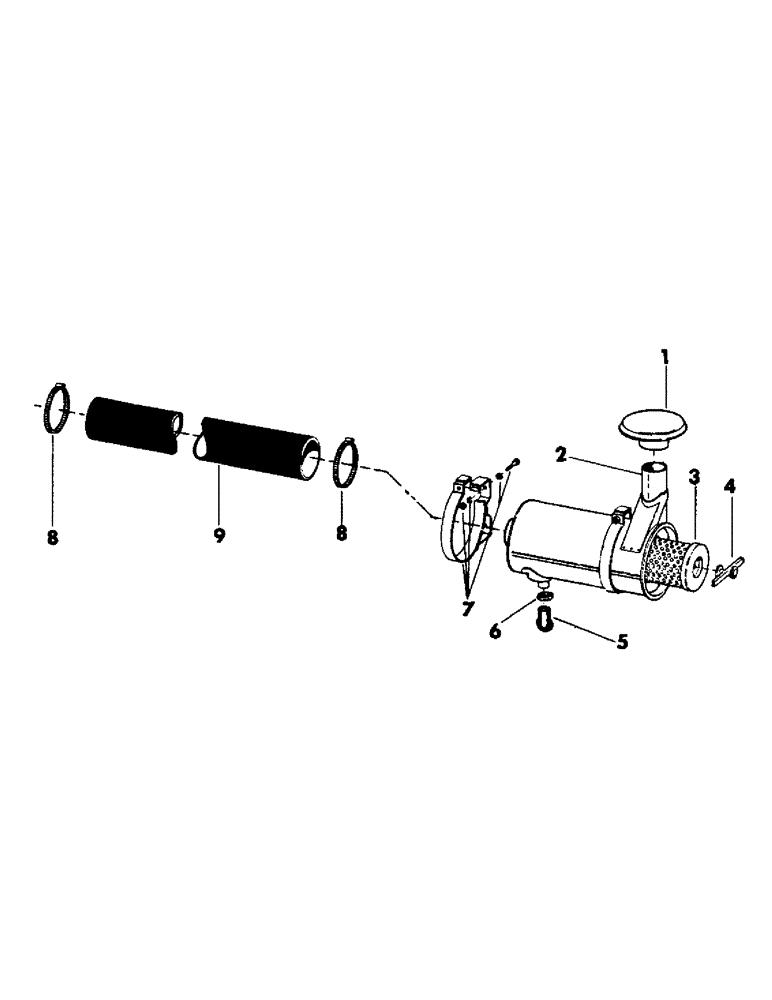

Запчасти Case 50 (C03) - AIR CLEANER AND MOUNTING HARDWARE FOR: GMC 6V-53 DIESEL ENGINE (10) - ENGINE

S502296

AIR CLEANER - complete (Consists of Refs. 2 thru 6)

1шт.

1

S36687

CAP

1шт.

2

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

S83589

AIR CLEANER

ELEMENT, filter

1шт.

4

S212321

RETAINER

BAR

1шт.

5

S76239

FILTER BOWL

BAG, dust

1шт.

6

S76238

CLAMP, dust bag

1шт.

7

S82244

RING, slip

2шт.

S2403

BOLT

CPSW - 3/8" NC x 1-1/2" grade 5 - (Mounts air cleaner to air cleaner mounting bracket, see turntable and attaching parts in section "D")

6шт.

S7385

INSTRUCTION

WASHER, flat - 3/8"

8шт.

S4397

WASHER

LOCKWASHER - 3/8"

6шт.

S4222

NUT

- 3/8" NC

6шт.

8

S85678

CLAMP

2шт.

Change in listing.

1шт.

9

S82334

HOSE, air cleaner - 5-1/2" ID x 35" long (Flexible)

1шт.
