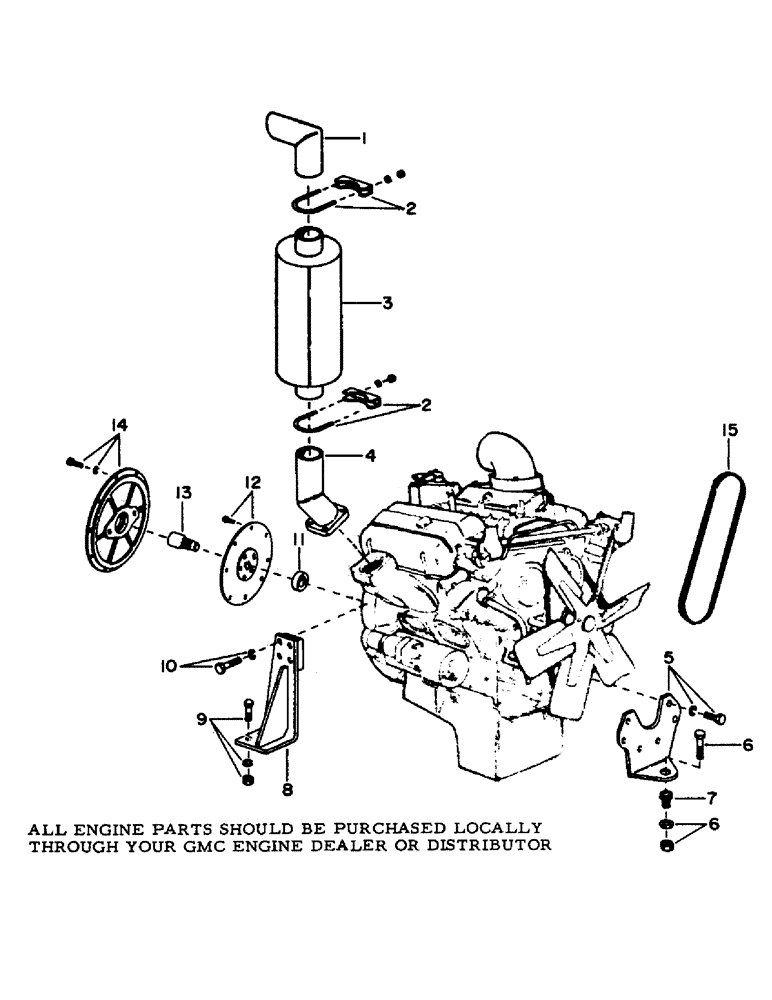

Запчасти Case 50 (C01) - * GMC 6V53 DIESEL ENGINE (DROTT # S57272M1) AND MOUNTING (10) - ENGINE

1

207867

PIPE, exhaust

2шт.

2

65056

CLAMP

4шт.

3

502058

PLUG

MUFFLER

2шт.

4

211610

PIPE

2шт.

5

502306

BRACKET, front engine mounting

1шт.

2432

CABLE

CPSW - 7/16" x 1-1/2" NC gr 5

6шт.

4398

LOCKWASHER - 7/16"

6шт.

6

S2554

BOLT (MACHINE)

CPSW - 3/4" NC x 4-1/4" gr 5

1шт.

S82255

WASHER

flat - 3/4"

1шт.

231-2445

LOCK NUT,5/16"-24, GB

NUT, self locking - 3/4" NC

1шт.

7

S102996

GROMMET

MOUNTING, rubber

1шт.

8

S502302

BRACKET, rear engine mounting - left hand (Not illustrated)

1шт.

S502304

BRACKET, rear engine mounting - right hand (Illustrated)

1шт.

9

S2468

BOLT

CPSW - 1/2" NC x 1-3/4" gr 5 - (Mounts rear engine mounting, Serial Range: bracket-turntable)

8шт.

S4399

WASHER

LOCKWASHER - 1/2"

8шт.

280431

NUT,1/2"-13, G5

8шт.

10

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" gr 5 - (Mounts left hand rear engine mounting, Serial Range: bracket-engine)

4шт.

S2472

BOLT

CPSW - 1/2" NC x 2-3/4" gr 5 - (Mounts right hand rear engine mounting, Serial Range: bracket-engine)

4шт.

S4399

WASHER

LOCKWASHER - 1/2"

8шт.

11

S63071

SPACER

1шт.

12

S33200

DAMPER

DAMPENER, pump drive

1шт.

S63218

BOLT

CPSW - 3/8" NC x 5/8" gr 5

8шт.

13

S63201

COUPLING

pump drive

1шт.

14

S52615

MOUNTING PARTS

ADAPTION, pump drive

1шт.

S2401

BOLT

CPSW - 3/8" NC x 1" gr 5

9шт.

S2402

BOLT

CPSW - 3/8" NC x 1-1/4" gr 5

1шт.

S2403

BOLT

CPSW - 3/8" NC x 1-1/2" gr 5

2шт.

15

S211672

BELT

SET OF BELTS, V- Belt, Alternator (Matched set of 2) (1 set)

1шт.
