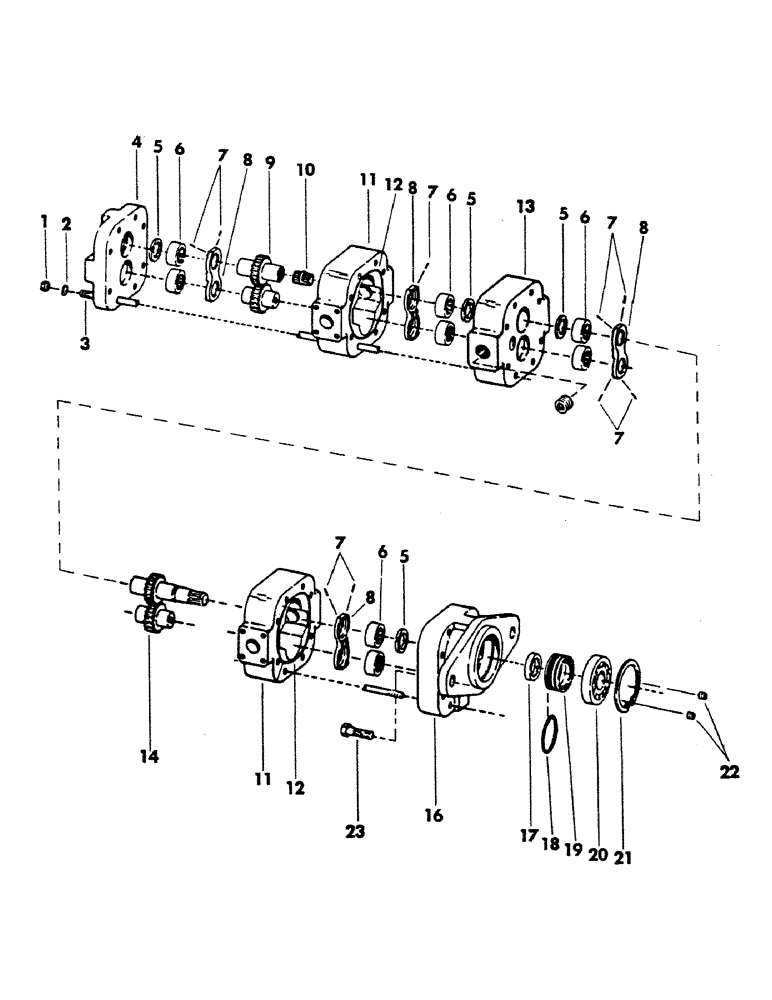

Запчасти Case 40YC (137) - HYDRAULIC TANDEM PUMP (07) - HYDRAULIC SYSTEM

S502120

PUMP

hydraulic tandem - complete - (Consists of items 1 thru 22)

1шт.

1

S16682

NUT - 5/8" NC

8шт.

2

S80754

WASHER

flat

8шт.

3

S82801

STUD

- 5/8" NC

8шт.

4

S82768

PLATE

COVER, port end

1шт.

5

S82765

SEALING RING

shaft

4шт.

6

S82722

BEARING

roller

8шт.

7

S82794

SEAL

-, Serial Range: (Cut-length)

2шт.

8

S82770

PLATE

thrust

4шт.

9

S82800

GEAR - set - 1-1/4"

1шт.

10

S82799

SHAFT, connecting

1шт.

11

S82764

HOUSING

gear

2шт.

12

S82795

GASKET

4шт.

13

S82798

CARRIER, bearing

1шт.

14

S82797

GEAR

set - 1-1/4"

1шт.

15

S7879

PLUG

pipe - 1/4" NPT

1шт.

16

S82721

COVER, shaft end

1шт.

17

S82766

SEAL

lip

1шт.

18

S5739

O-RING

"O" RING - 2.612" ID x 2.812" OD

1шт.

19

S82763

RETAINER

seal

1шт.

20

S82767

BEARING

1шт.

21

S82724

RING

snap

1шт.

22

S18800

PLUG

SCREW, set - 7/16" NF x 3/8"

1шт.

23

S2502

BOLT (MACHINE)

CPSW - 5/8" NC x 1-1/2" gr 5 - (Mounts, Serial Range: pump-engine)

2шт.
