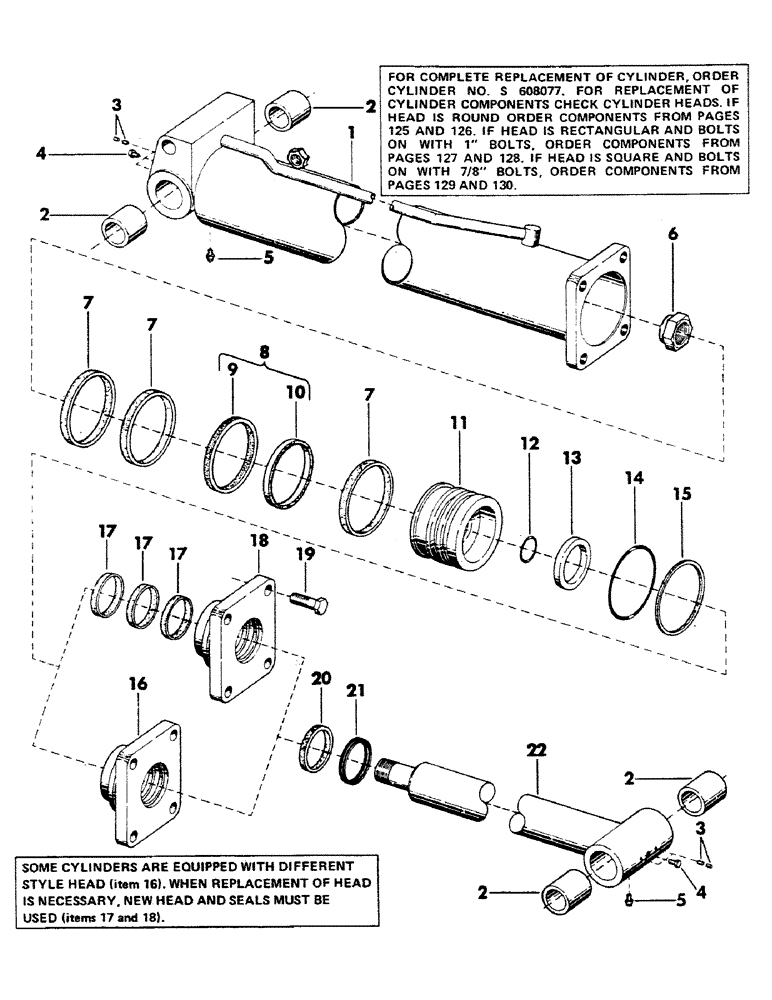

Запчасти Case 40YC (127) - HOIST AND CROWD CYLINDER, (6.53" ID X 45.50" STROKE) (07) - HYDRAULIC SYSTEM

CYLINDER, hoist and crowd - complete - (Consists of items 1 thru 22)

2шт.

1

S606345

TUBE

cylinder - (Includes items 2 and 3), quantites listed are for one complete

1шт.

2

S225645

BUSHING

quantites listed are for one complete cylinder

4шт.

3

S14046

SET SCREW

SCREW, set - 5/16" NC x 3/8", quantites listed are for one complete cylinder

8шт.

4

S15161

PLUG, pipe - 1/8" NPT, quantites listed are for one complete cylinder

2шт.

5

S12031

FITTING,1/8"-27 x .66 lg

grease - 1/8" NPT - (Straight), quantites listed are for one complete cylinder

2шт.

6

S83249

NUT

quantites listed are for one complete cylinder

1шт.

7

S97856

RING

wear, quantites listed are for one complete cylinder

3шт.

8

S234340

SEAL

ASSEMBLY, piston - (Includes items 9 and 10) - (Supersedes S224768), quantites listed are for one complete cylinder

1шт.

Change in listing.

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL, piston, quantites listed are for one complete cylinder

1шт.

10

NSS

NOT SOLD SEPARAT

RING, expander, quantites listed are for one complete cylinder

1шт.

11

S508236

PISTON

quantites listed are for one complete cylinder

1шт.

12

S5922

O-RING,1.975" ID x 2.395" OD x 0.21"

"O" RING - 1.975" ID x 2.375" OD, quantites listed are for one complete cylinder

1шт.

13

S97798

SPACER

quantites listed are for one complete cylinder

1шт.

14

S6030

O-RING,5.975" ID x 6.525" OD x 0.275"

"O" RING - 5.975" ID x 6.500" OD, quantites listed are for one complete cylinder

1шт.

15

S99881

WASHER

backup, quantites listed are for one complete cylinder

1шт.

16

HEAD, cylinder - (Different style head, to be replaced by new style head and wear rings, items 17 and 18), quantites listed are for one complete

1шт.

17

S104133

OIL SEAL

RING, wear, quantites listed are for one complete cylinder

3шт.

18

S607741

HEAD

cylinder - (Used to replace different style head, item 16), quantites listed are for one complete

1шт.

19

S12682

BOLT

CPSW - 1" NF x 2-1/2" gr 8, quantites listed are for one complete cylinder

4шт.

20

S109927

SEAL

rod - (Supersedes S97855), quantites listed are for one complete cylinder

1шт.

Change in listing.

1шт.

21

S97854

WIPER SEAL,88.9mm ID x 104.98mm OD x 7.92mm Thk

WIPER, rod, quantites listed are for one complete cylinder

1шт.

22

S508274

ROD

cylinder - (Includes items 2 and 3), quantites listed are for one complete

1шт.

23

S609427

PACKING

KIT, packing - (Includes items 7, 8, 12, 14, 15, 17, 20 and 21), quantites listed are for one complete cylinder

1шт.

Added listing.

1шт.
