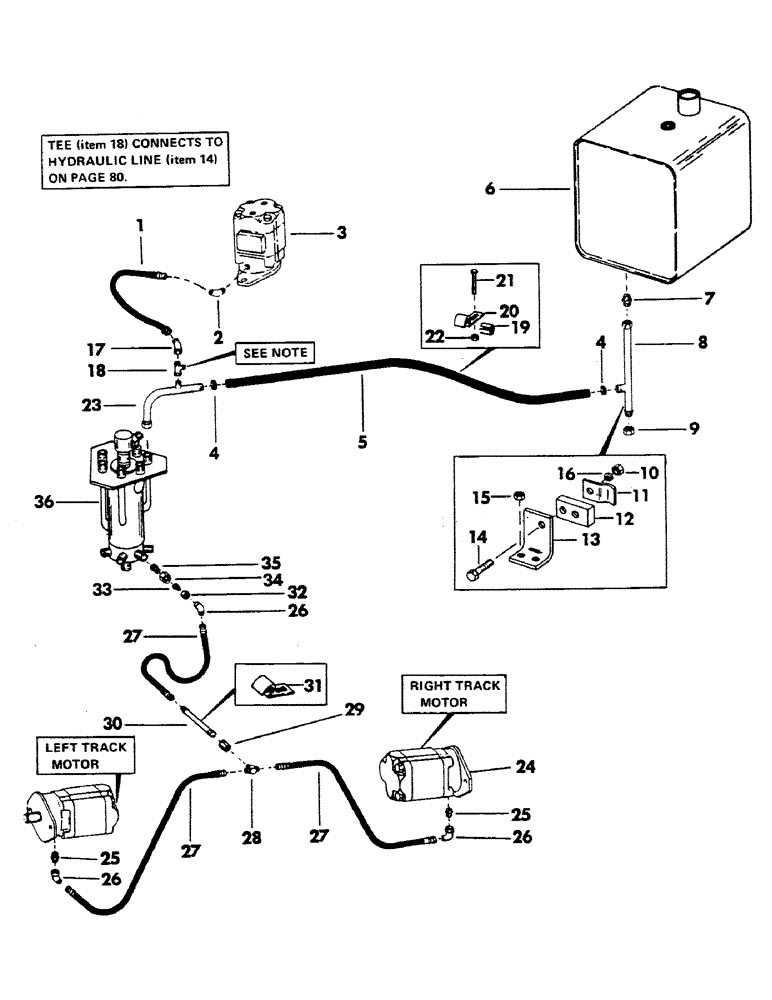

Запчасти Case 40YC (123) - DRAIN HYDRAULICS (07) - HYDRAULIC SYSTEM

1

S77121

HOSE

high pressure - 1/4" ID x 20" long - (With 9/16" - 18 female pressed on couplings)

1шт.

2

S5006

ELBOW

45 degree - (3/8" tube) - 9/16" male x 1/4" NPT male 37 degrees flared

1шт.

3

MOTOR, swing - (For breakdown, see Figure 141)

1шт.

4

S85477

CLAMP

hose

1шт.

5

S202581

HYDRAULIC HOSE,1.00" ID Bulk, SAE 100R3

- Low pressure, 65" long 1.00" ID Bulk, SAE 100R3

1шт.

6

RESERVOIR, hydraulic oil - (For breakdown, see page 142)

1шт.

7

S60838

ADAPTER

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 3/4" - 11 male 37 degrees flared

1шт.

8

S506626

LINE, hydraulic 1" OD x 15, 3" L

1шт.

S506630

LINE, hydraulic 1" OD x 20.75, 2.38" L

1шт.

9

S9419

CAP ASSY.

CAP - 1-5/16" - 12 female

1шт.

10

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

1шт.

11

S45219

CLAMP

tube

1шт.

12

S79936

BLOCK, spacer

1шт.

13

S92081

BRACKET

ANGLE

1шт.

14

S2405

BOLT

CPSW - 3/8" NC x 2" gr 5

1шт.

15

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

2шт.

16

S7385

INSTRUCTION

WASHER, flat - 3/8"

1шт.

17

S9489

ELBOW

45 degree swivel - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 female - 37 degrees flared

1шт.

18

S60465

TEE

swivel - (3/8" tube) - 9/16" - 18 male x 9/16" - 18 female x 9/16" - 18 male - 37 degrees flared

1шт.

19

S86502

RING

compression

1шт.

20

S87573

CLAMP

1шт.

21

S2467

BOLT

CPSW - 1/2" NC x 1-1/2" gr 5

1шт.

22

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

1шт.

23

S220252

TUBE,1" OD x 5, 3.75" L

LINE, hydraulic

1шт.

24

MOTOR, track drive - (For breakdown, see Figure 139)

2шт.

25

S101310

ADAPTER

CONNECTOR, flared - (1/2" tube) - 3/4" - 16 male x 1/4" NPT male - 37 degrees flared

2шт.

26

S10357

ELBOW

90 degree swivel - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female - 37 degrees flared

3шт.

27

S11230

HOSE

high presure - 3/8" ID x 28" long - (With 3/4" - 16 female pressed on couplings)

3шт.

28

S63597

TEE

- (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male x 3/4" - 16 female - 37 degrees flared

1шт.

29

VALVE, check - set a 5 PSI - (For breakdown, see Figure 155)

1шт.

30

S209700

LINE, hydraulic 0.5" OD x 12" L

1шт.

31

S77324

CLAMP

1шт.

32

S6277

NUT

tube

1шт.

33

S101833

ADAPTER

reducing - (3/4" x 1/2" reduction) - 3/4" - 16 male

1шт.

34

S6279

NUT

tube

1шт.

35

S101832

ADAPTER

reducing - (1" x 3/4" reduction) - 1-1/16" - 12 male

1шт.

36

SWIVEL, 7-port hydraulic - (For breakdown, see Figure 135)

1шт.
