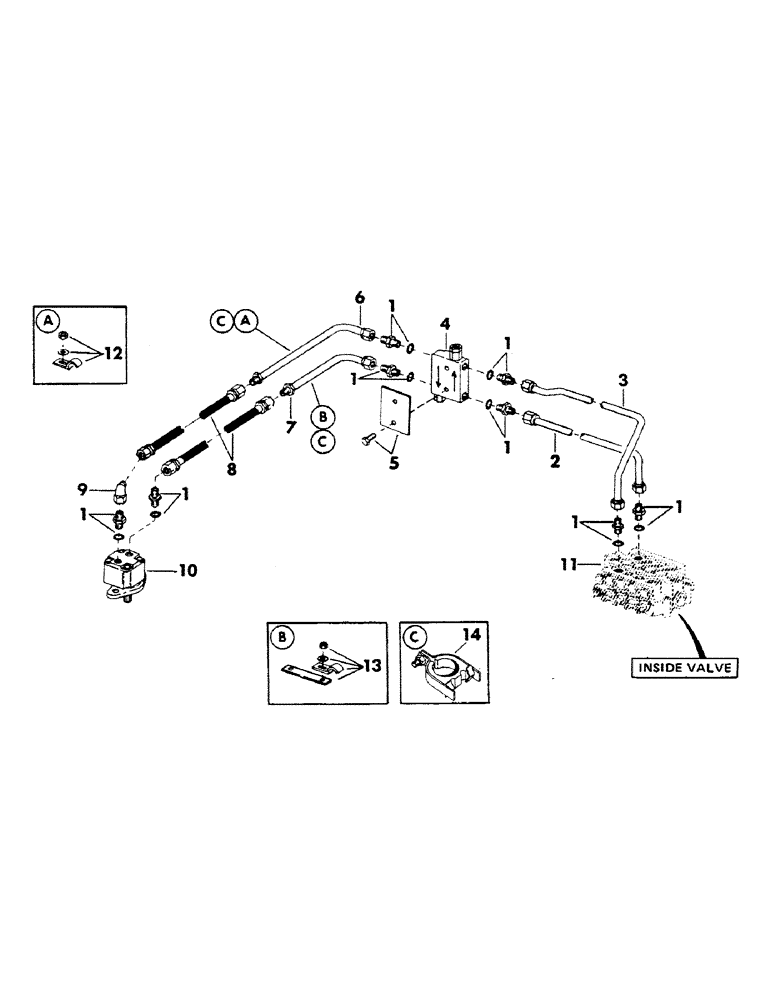

Запчасти Case 40YC (119) - SWING MOTOR HYDRAULICS (07) - HYDRAULIC SYSTEM

1

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male 37 degrees flared - (Includes "o" ring)

8шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

8шт.

2

S502075

TUBE,1.25" OD x 17.43, 5.8" L

LINE, hydraulic

1шт.

3

S502074

LINE,1.25" OD

hydraulic

1шт.

4

VALVE, crossover relief - (For breakdown, see Figure 146)

1шт.

5

S82529

NAMEPLATE, relief valve

1шт.

S82719

SCREW, self tapping - 3/8" NC x 7/8"

2шт.

6

S502076

TUBE,1.25" OD x 12.5, 5" L

LINE, hydraulic

1шт.

7

S502077

TUBE,1.25" OD x 14, 5" L

LINE, hydraulic

1шт.

8

S86288

BRACKET

HOSE, high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

2шт.

9

S9494

ELBOW

- 45 degree swivel - 1-5/16" - 12 male x 1-5/16" - 12 female - 37 degrees flared

1шт.

10

MOTOR, swing - (For breakdown, see Figure 141)

1шт.

11

VALVE, 4-spool main control - (For breakdown, see Figure 149)

1шт.

12

S77460

CLAMP, tube - (Used on units with serial no. 1500 thru 2003)

1шт.

S7385

INSTRUCTION

WASHER, flat - 3/8"

1шт.

S17167

INSTRUCTION

NUT, self locking - 3/8" NC

1шт.

13

S77469

CLAMP

tube - (Used on units with serial no. 1500 thru 2003)

1шт.

S86481

SPACER

1шт.

S7393

WASHER

flat - 1/2"

1шт.

S17169

INSTRUCTION

NUT, self locking - 1/2"

1шт.

14

S93266

CLAMP

tube - (Used on units with serial no. 2004 - up)

2шт.
