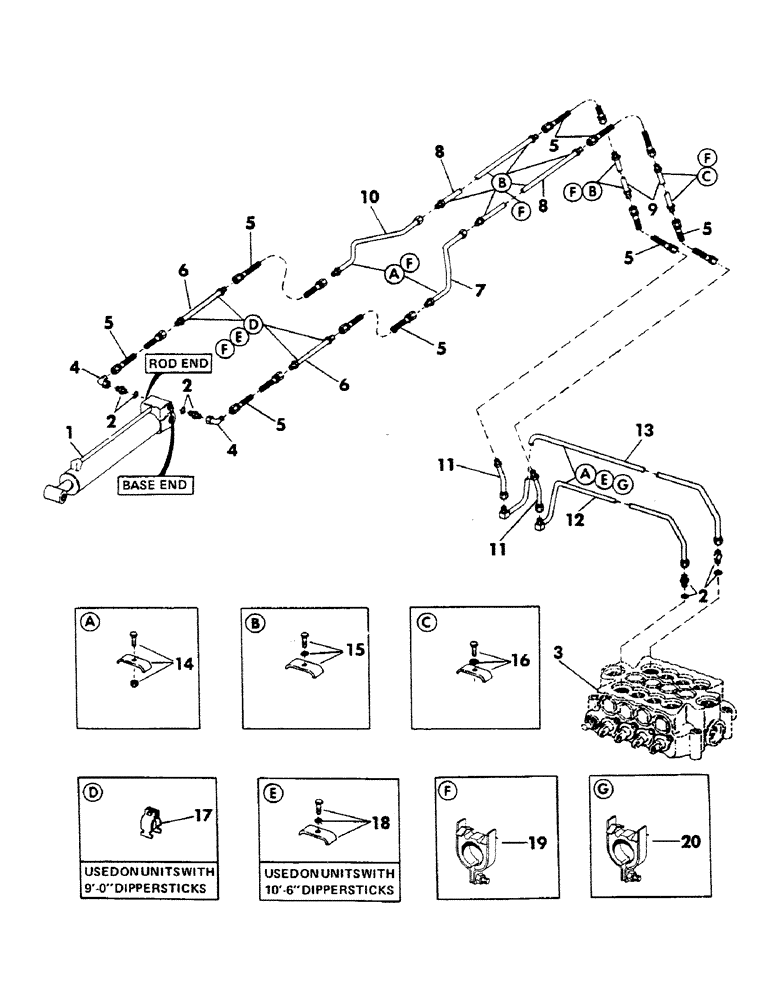

Запчасти Case 40YC (115) - TOOL CYLINDER HYDRAULICS FOR "E" BOOM (07) - HYDRAULIC SYSTEM

1

CYLINDER, tool - (For breakdown, see Figure 131)

1шт.

2

S7972

CONNECTOR, ELEC

CONNECTOR - (1" tube) - 1-5/16" - 12 male x 1-5/16" - 12 male 37 degrees flared - (Includes "o" ring)

4шт.

S6069

O-RING,1.171" ID x 0.116" Width

"O" RING - 1.171" ID x 1.403" OD

4шт.

3

VALVE, 4-spool main control - (For breakdown, see Figure 151)

1шт.

4

S10361

ELBOW

90 degree swivel - 1-5/16" - 12 male x 1-5/16" - 12 female 37 degrees flared

2шт.

5

S8628

HOSE

high pressure - 1" ID x 36" long - (With 1-5/16" - 12 female pressed on couplings)

8шт.

6

S211836

TUBE,1.25" OD x 17.3" L

LINE, hydraulic - (Used on units with 9' 0" dippersticks)

2шт.

S211835

TUBE ASSY.,1.25" OD x 41.3" L

LINE, hydraulic - (Used on units with 10'6" dippersticks)

2шт.

7

S211833

TUBE ASSY.,1.25" OD x 35.6, 7.7" L

LINE, hydraulic

1шт.

8

S211832

LINE

hydraulic

1шт.

9

S211850

TUBE ASSY.,1.25" OD x 46.4" L

LINE, hydraulic

1шт.

10

S211834

TUBE ASSY.,35.6, 7.7" L

LINE, hydraulic

1шт.

11

S211849

LINE,1.25" OD

hydraulic

1шт.

12

S502080

PIPE,1.25" OD

LINE, hydraulic

1шт.

13

S502081

PIPE,1.25" OD

LINE, hydraulic

1шт.

14

S46397

CLAMP

- (Used on units with serial no. 1500 thru 2040 and 2054)

4шт.

S2474

BOLT (MACHINE)

CPSW - 1/2" NC x 3-1/4" gr 5

4шт.

S17169

INSTRUCTION

NUT, self locking - 1/2" NC

4шт.

15

S46397

CLAMP

- (Used on units with serial no. 1500 thru 2040 and 2054)

5шт.

S2470

BOLT

CPSW - 1/2" NC x 2-1/4" gr 5

5шт.

S4399

WASHER

lock - 1/2"

5шт.

16

S88023

CLAMP - (Used on units with serial no. 1500 thru 2040 and 2054)

2шт.

S2470

BOLT

CPSW - 1/2" NC x 2-1/4" gr 5

2шт.

S4399

WASHER

lock - 1/2"

2шт.

17

S93266

CLAMP

- (Used on all units with 9' 0" dippersticks)

4шт.

18

S46397

CLAMP

- (Used on all units with 10' 6" dippersticks and serial no. 1500 thru 2040 and 2054)

4шт.

S2470

BOLT

CPSW - 1/2" NC x 2-1/4" gr 5

4шт.

S4399

WASHER

lock - 1/2"

4шт.

19

S93266

CLAMP

- (Used on all units with serial no. 2041 thru 2053 and 2055 - up)

18шт.

20

S93266

CLAMP

- (Used on units with serial no. 2004 - up)

2шт.
